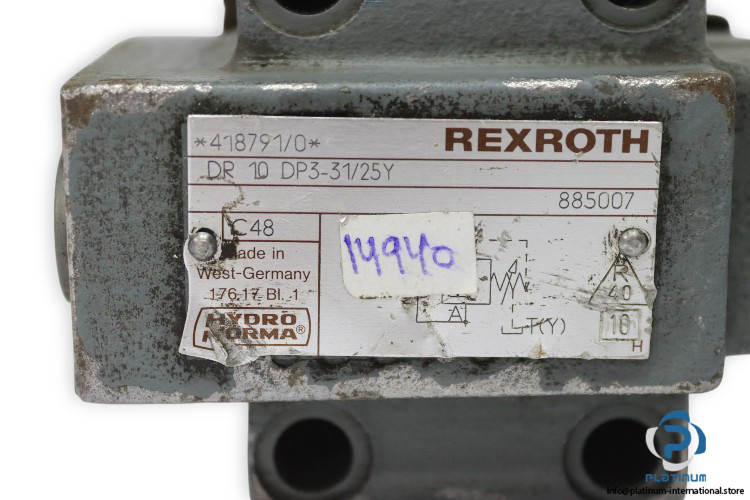

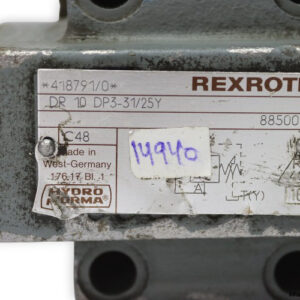

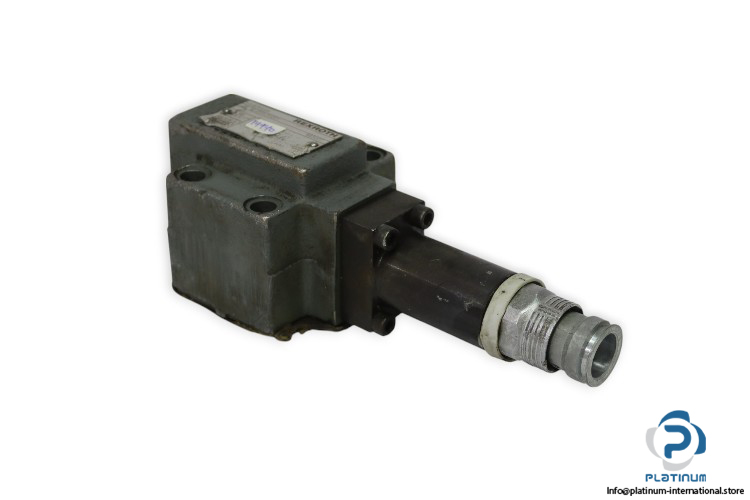

REXROTH HYDRONORMA DR 10 DP3-31/25Y PRESSURE REDUCING VALVE

This direct-operated pressure reducing valve from Rexroth Hydronorma is engineered for precision control of hydraulic systems. Designed for sub-plate mounting, it delivers reliable pressure regulation in demanding industrial environments with high flow and pressure conditions.

Manufacturer: Rexroth Hydronorma
Type: Pressure Reducing Valve Direct Operated
Model: DR 10 DP3-31/25Y
Part No.: 418791/0
Code: 885007 / C48

Technical Information

• Size: 10
• Maximum Operating Pressure: 315 bar
• Maximum Flow: 160 l/min
• Type of Connection: Sub-plate mounting
• Suffix: Y, Pilot oil supply internal, pilot oil return external
• Ambient Temperature Range: -20 to +80 °C (NBR seals)
• Viscosity Range: 10 to 800 mm²/s
