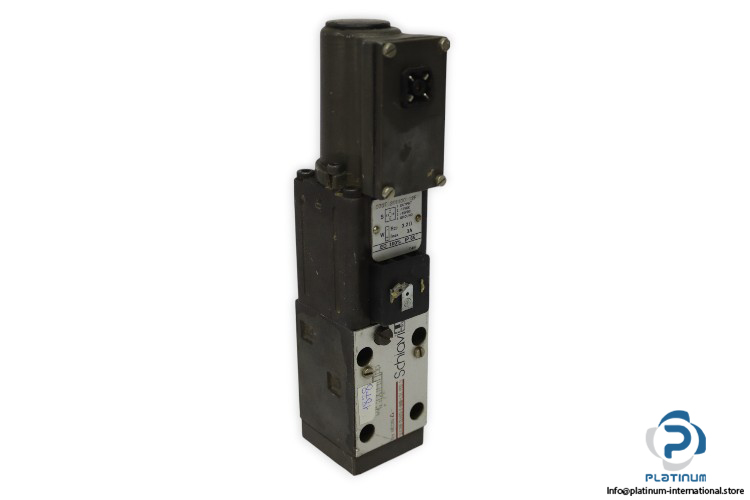

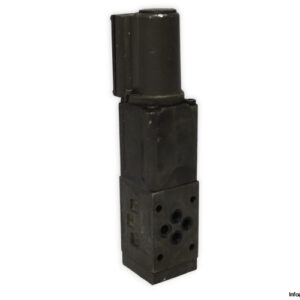

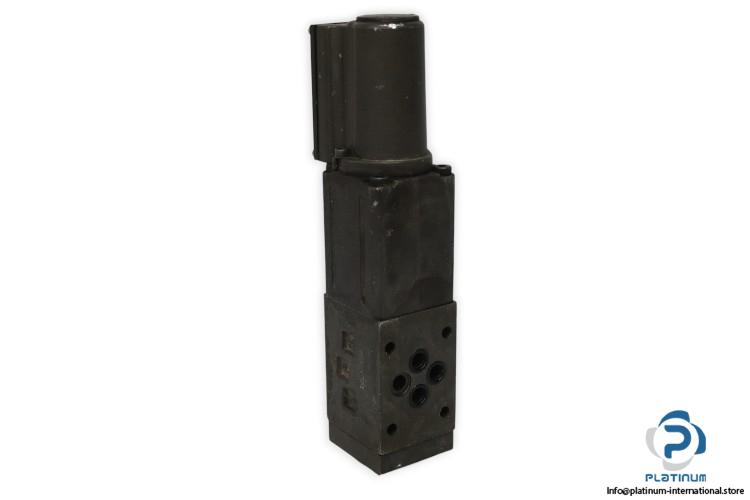

ATOS/SCHIAVI 951280 DLHZO-T-040-L51 SERVO PROPORTIONAL DIRECTIONAL VALVE

This high-performance closed-loop servo proportional directional valve by Atos/Schiavi is designed for precision hydraulic control in demanding industrial applications. Featuring a linear spool type, robust build, and wide operating ranges, it ensures accurate fluid control under varying load and flow conditions. The unit comes equipped with an ATOS 0Z0T-201100 12 F solenoid coil for enhanced actuation response.

Manufacturer: Atos/Schiavi
Type: Servo Proportional Directional Valve (Closed-Loop)

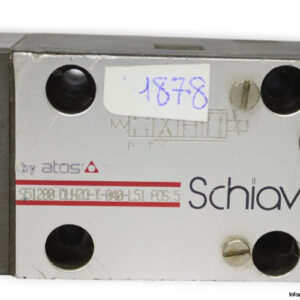

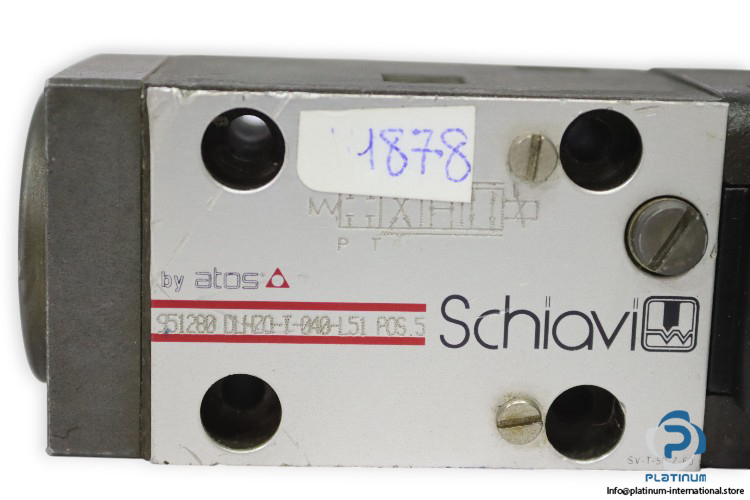

Model: 951280 DLHZO-T-040-L51 POS.5

Technical Information

• Size: 06
• Spool Type: L, linear
• Ambient Temperature Range: -20 to +60°C
• Max. Operating Pressure (Ports P, A, B): 350 bar
• Max. Operating Pressure (Port T): 210 bar
• Max. Flow Rate: 50 l/min
• Hydraulic Fluid Temperature Range: -20 to +60°C
• Viscosity Range: 20 to 100 mm²/s
• Max. Power: 50 W
• Connection: Sup-plate

Attached Component

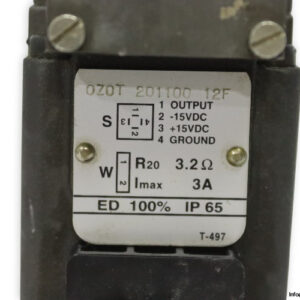

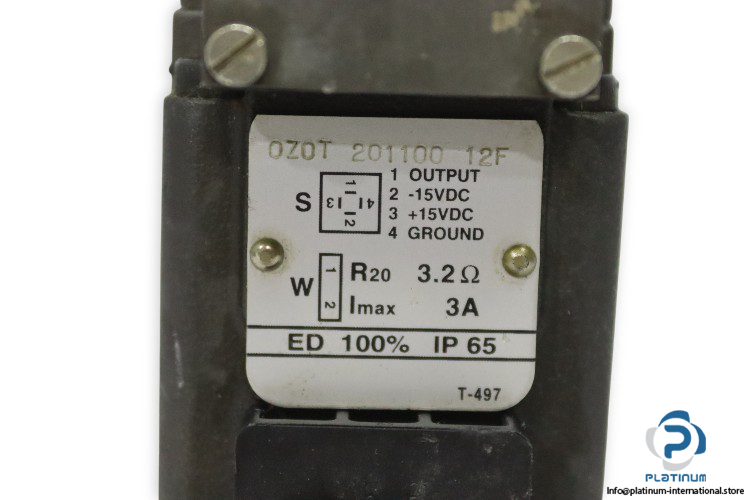

Solenoid Coil: ATOS 0Z0T-201100 12 F

• Coil Resistance (R at 20°C): 3.2 „¦
• Voltage/Current: 15 V DC / 3 A
• IP Rating / Duty: IP65 / ED 100%
