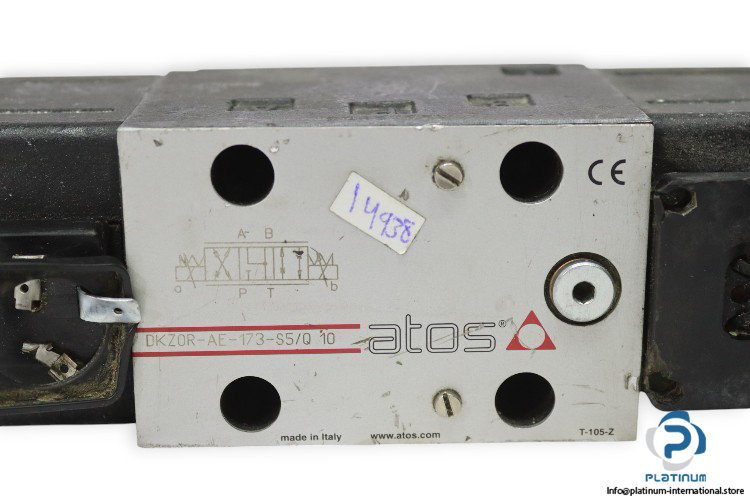

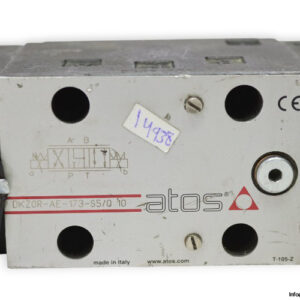

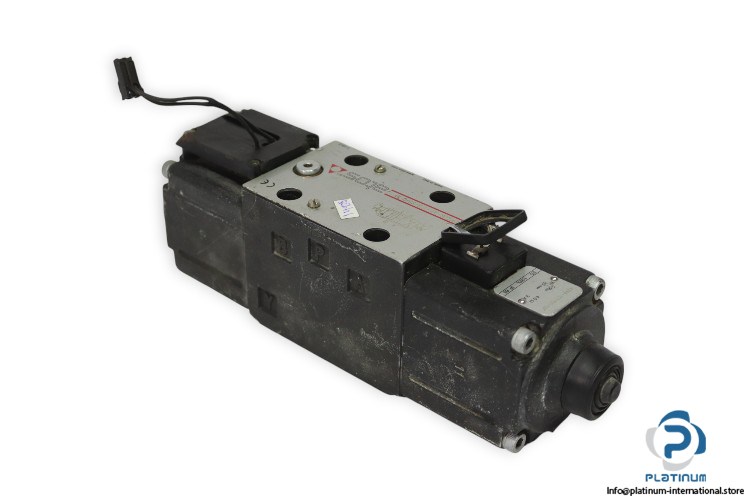

ATOS DKZOR-AE-173-S5/Q 10 PROPORTIONAL DIRECTIONAL VALVE

The Atos DKZOR-AE-173-S5/Q 10 is a proportional directional valve with integral electronics, designed for precision hydraulic control in high-pressure systems. With a 3-position spring-centered spool, positive overlapping, and a maximum pressure rating of 350 bar, it ensures stable and responsive operation in demanding environments. This valve comes equipped with the Atos AZRA-107100-15F coil, providing reliable actuation with high durability and IP65 protection.

Manufacturer: Atos
Type: Proportional Directional Valve (with integral electronics)
Model: DKZOR-AE-173-S5/Q 10

Technical Information

• Size: 10
• Valve Size: 10
• Configuration: 7, 3-position (spring centered)
• Spool Overlapping: 3, P positive overlapping
• Spool Size: 5
• Pressure: 350 bar

Attached Coil

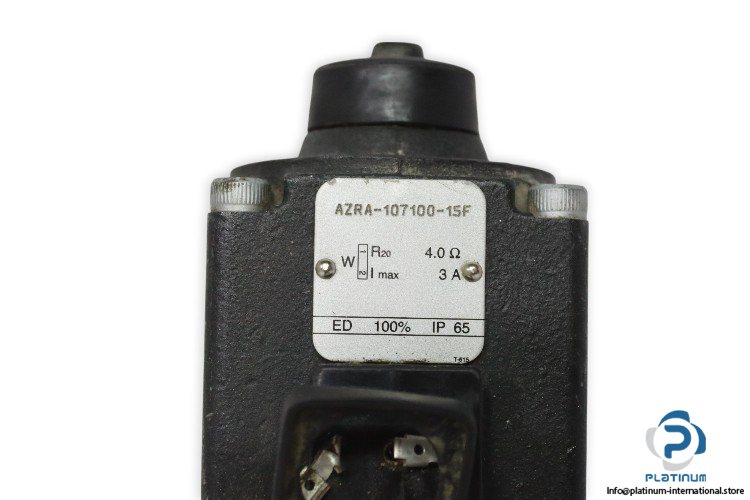

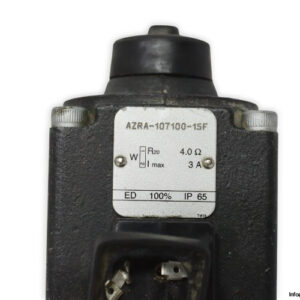

• Attachment: ATOS AZRA-107100-15F Coil
• Manufacturer: Atos
• Type: Coil
• Model: AZRA-107100-15F
• Current: 3 A
• Resistance: 4 ohms
• Duty: ED 100%
• IP Rate: 65
