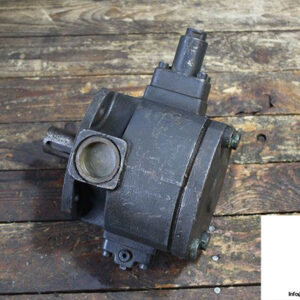

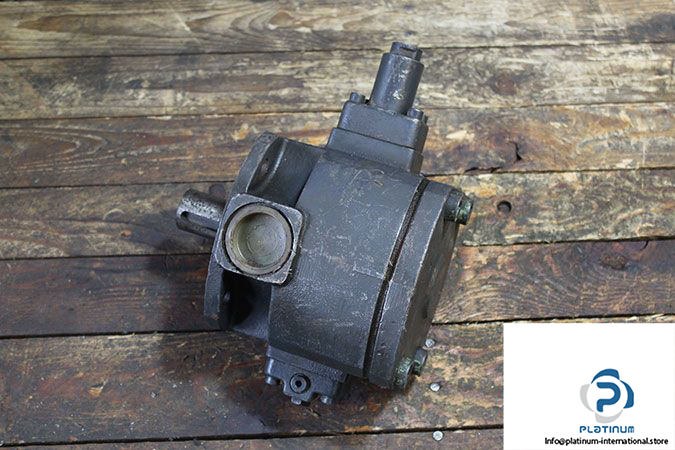

Manufacturer: Hydraulik Ring

Type: Variable vane Single pump

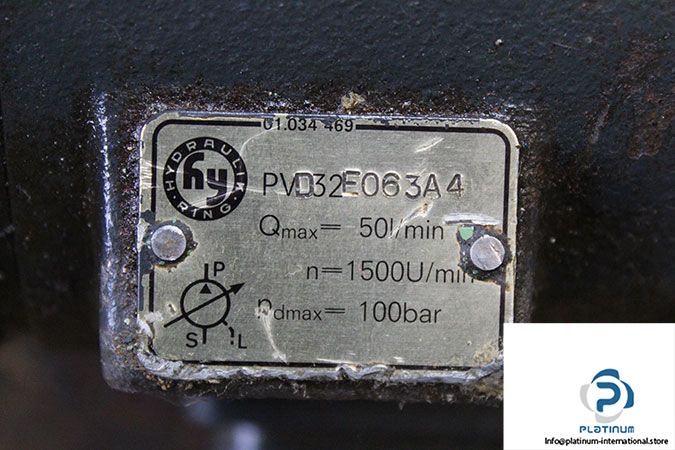

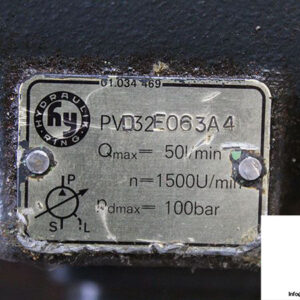

Model: PVD32E063A4



Size: 32

Displacement: 31 cm³

Direction of Rotation: Clockwise

Control options: Low pressure – high pressure

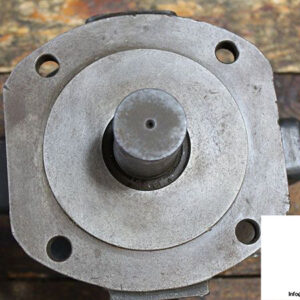

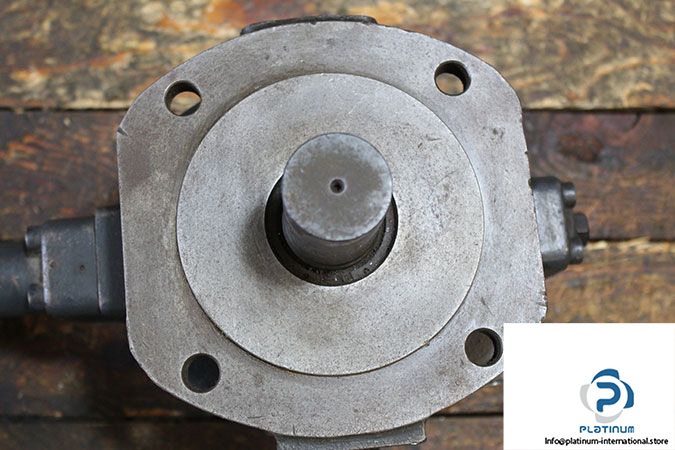

Shaft Diameter: 38 mm

Input power: 12.7 KW

Max pressure: 100 bar

Speed Range: 1000 …. 1800 rpm

Actual Speed: 1500 min^-1

Flow Rate at 1500 rpm: 45 l/m

Max Flow Rate at 1500 rpm: 50 l/m

Ambient-temperature range: –10 … 70 °C

Viscosity Range: 22 ….  100 mm²/s

Weight: 29 Kg
