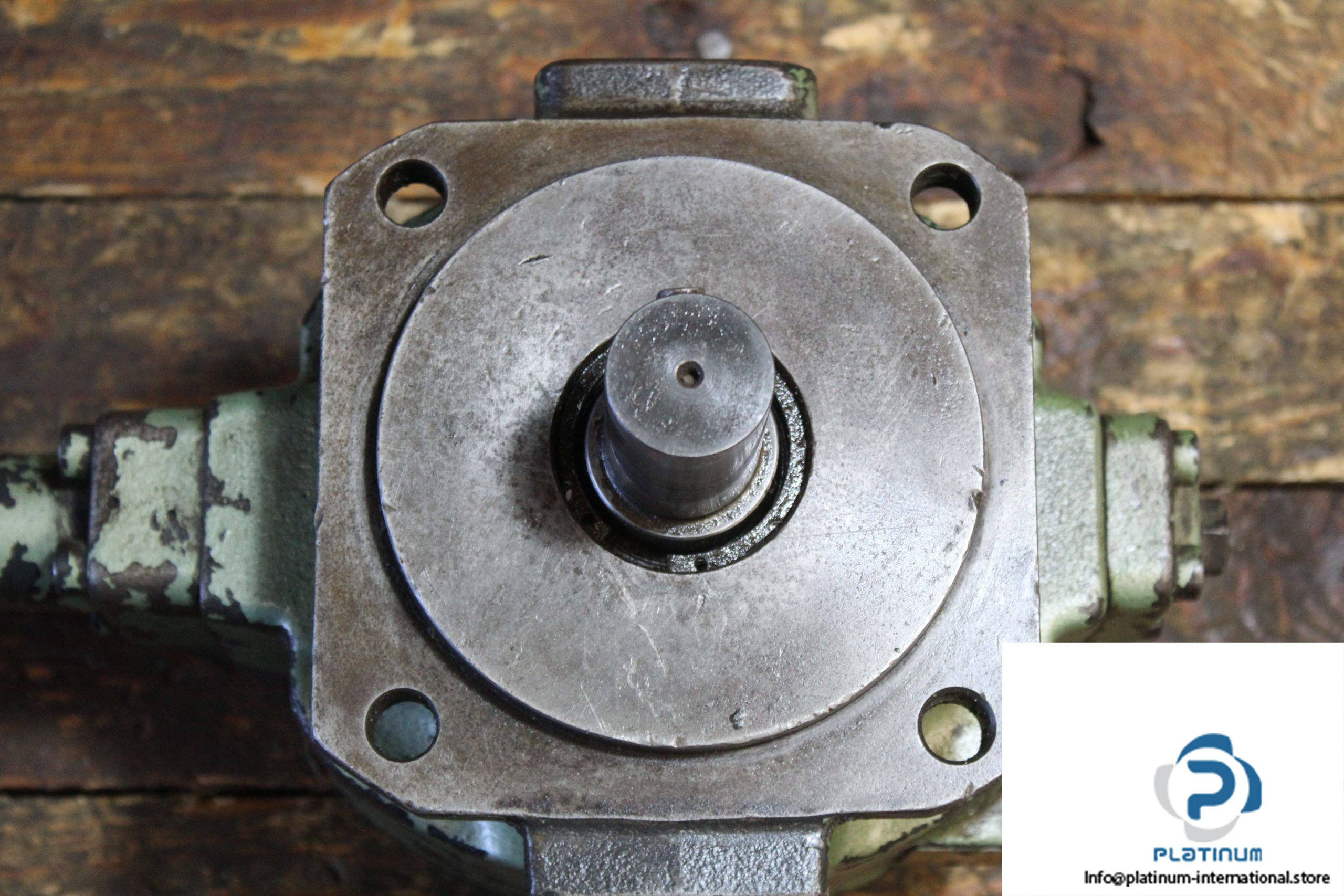

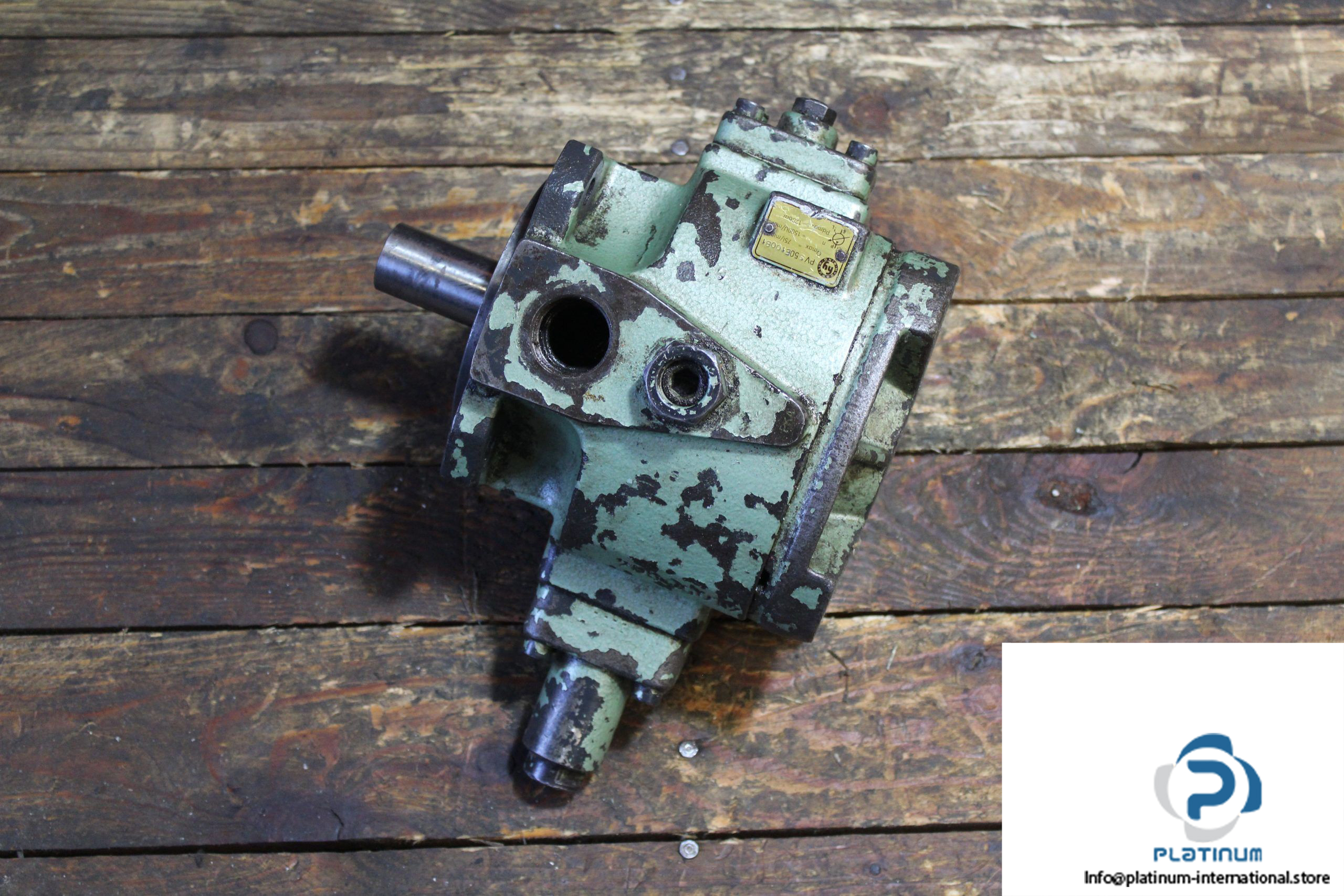

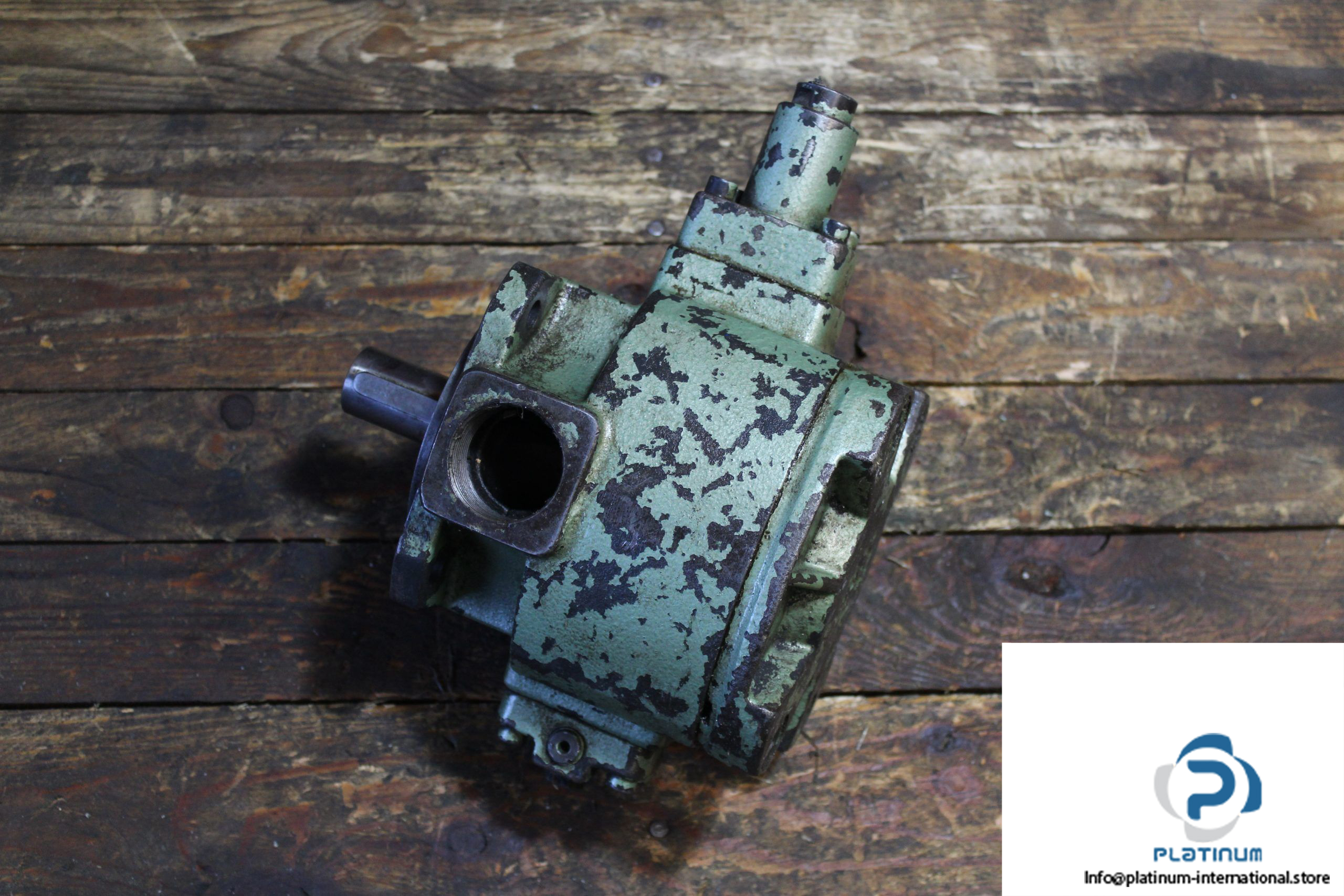

Manufacturer: Hydraulik Ring

Type: Variable vane Single pump

Model: PVS50E100B1



Size: 50

Displacement: 51.5 cm³

Direction of Rotation: Clockwise

Shaft Diameter: 32 mm

Input power: 19.7 KW

Max pressure: 120 bar

Speed Range: 1000 …. 1800 rpm

Actual Speed: 1500 min^-1

Flow Rate at 1500 rpm: 75 l/m

Ambient-temperature range: –10 … 70 °C

Viscosity Range: 22 ….  100 mm²/s

Weight: 28.3 Kg
