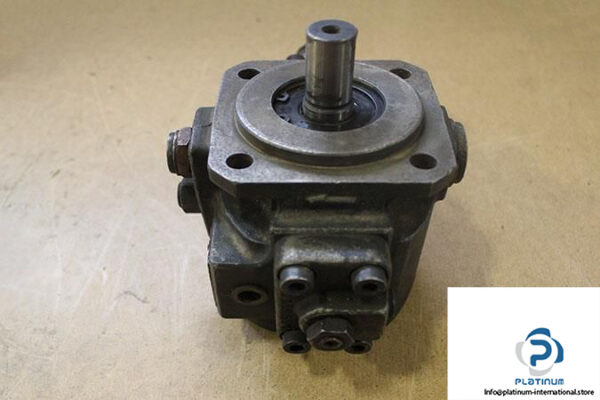

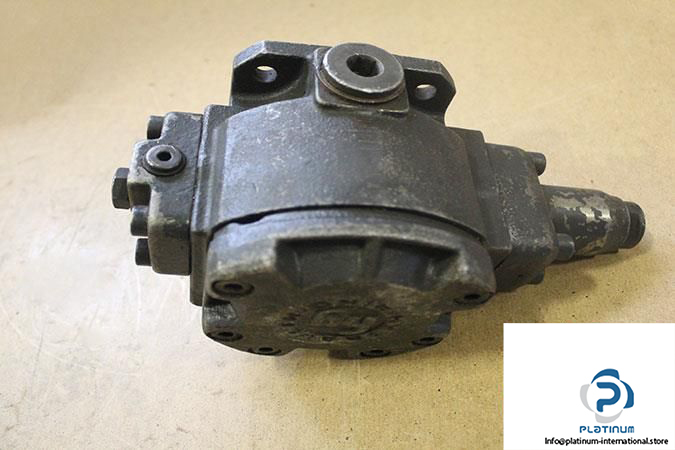

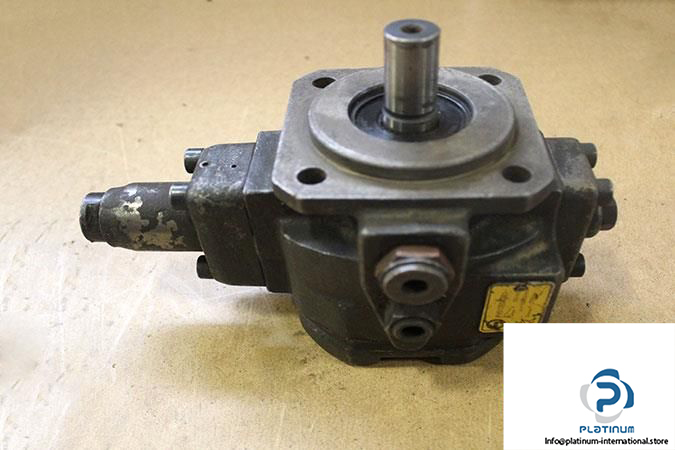

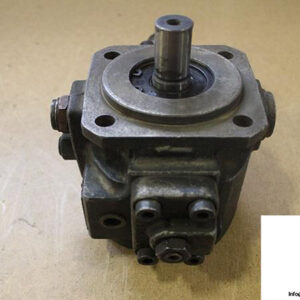

Manufacturer: Hydraulik Ring

Type: Variable vane Single pump

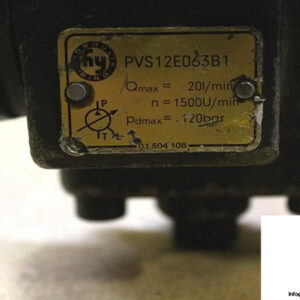

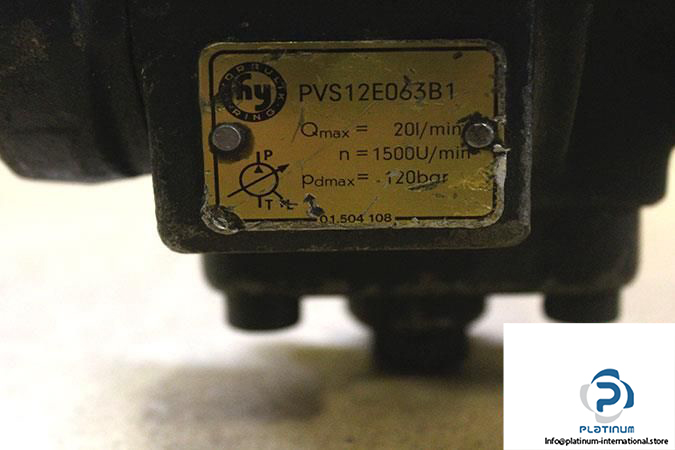

Model: PVS12E063B1



Size: 12

Displacement: 12.8 cm³

Direction of Rotation: Clockwise

Shaft Diameter: 20 mm

Input power: 5 KW

Settings Pressure: 63 bar

Max Pressure: 120 bar

Speed Range: 1000 …. 1800 rpm

Actual Speed: 1500 min^-1

Flow Rate at 1500 rpm: 19 l/m

Max Flow Rate at 1500 rpm: 20 l/m

Ambient-temperature range: –10 … 70 °C

Viscosity Range: 22 ….  100 mm²/s

Weight: 9.2 Kg
