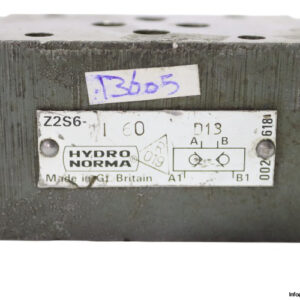

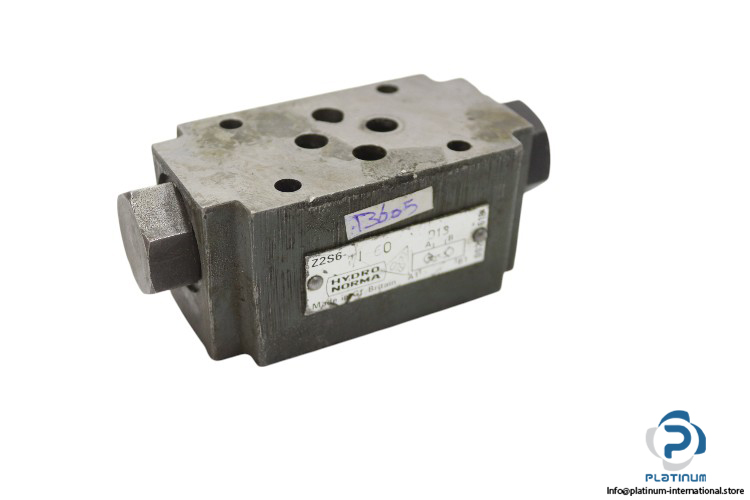

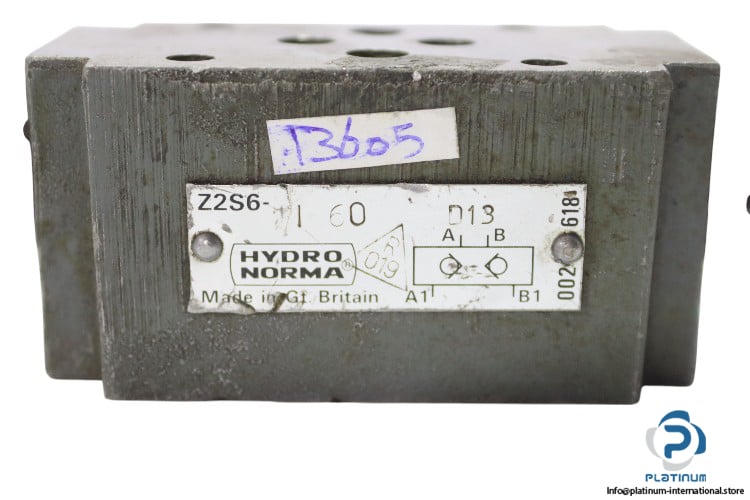

HYDRONORMA Z2S6-1-60 D13 Pilot Operated Check Valve
The HYDRONORMA Z2S6-1-60 D13 is a high-performance pilot operated check valve, designed for use in hydraulic systems. With precise control of fluid flow and pressure, this valve offers reliable performance in demanding industrial environments.
Manufacturer: HYDRONORMA
Type: Pilot Operated Check Valve
Model: Z2S6-1-60 D13
Technical Data:
- Size: NG6
- Cracking Pressure: 1.5 bar
- Viscosity Range: 2.8 “ 500 mm²/s
- Max. Pressure: 350 bar
- Max. Flow: 80 l/min
- Connection: Sub-plate
- Ambient Temperature Range: -30 to 80°C
