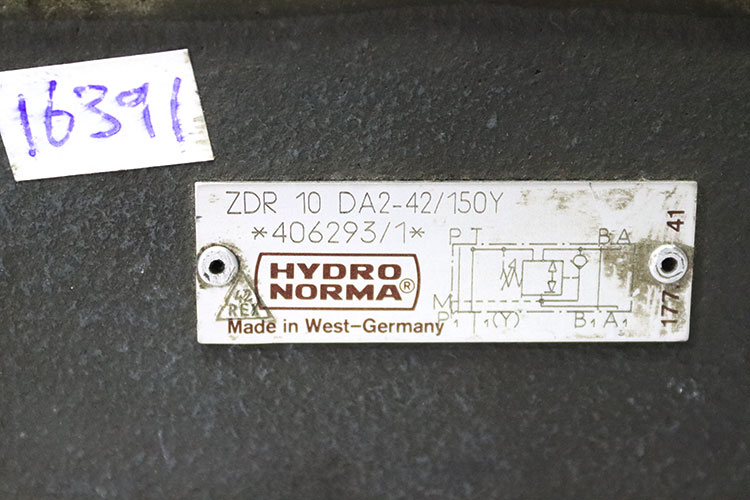

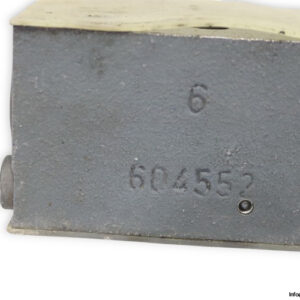

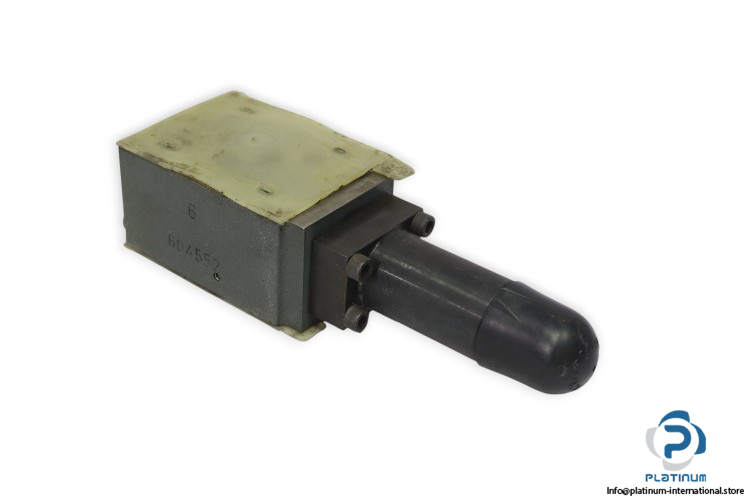

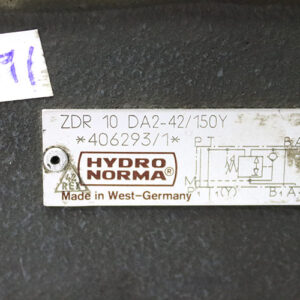

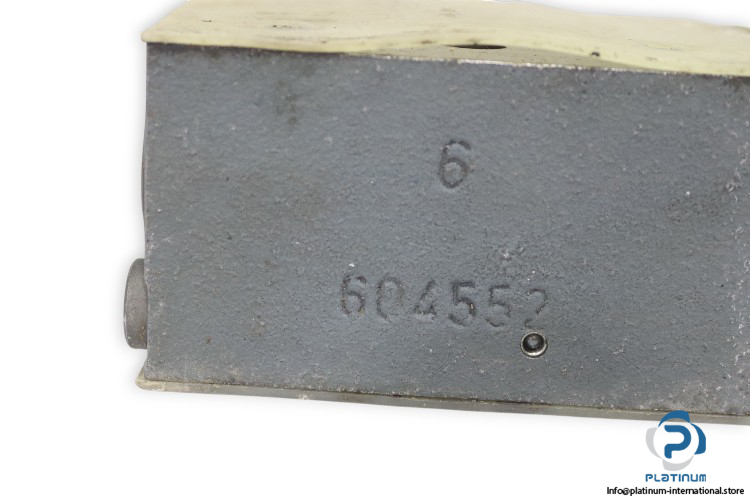

HYDRONORMA ZDR10DA2-42/150Y Pressure Reducing Valve
The HYDRONORMA ZDR10DA2-42/150Y is a pilot-operated pressure reducing valve engineered for high-performance hydraulic systems. It maintains stable secondary pressure and ensures smooth, controlled operation under demanding working conditions.
Manufacturer: HYDRONORMA
Type: Pressure Reducing Valve, Pilot Operated
Model: ZDR10DA2-42/150Y
MRN: 406293/1
Ref No.: 177 41
Series: ZDR
Technical Information
- Size: 10
- Secondary Pressure: 150 bar
- Maximum Operating Pressure: 315 bar
- Maximum Counter Pressure “ Port TA, TB: 160 bar
- Maximum Flow: 100 l/min
- Ambient and Storage Temperature Range: -30 / +80 °C
- Viscosity Range: 10 / 800 mm²/s
