Manufacturer: IBC

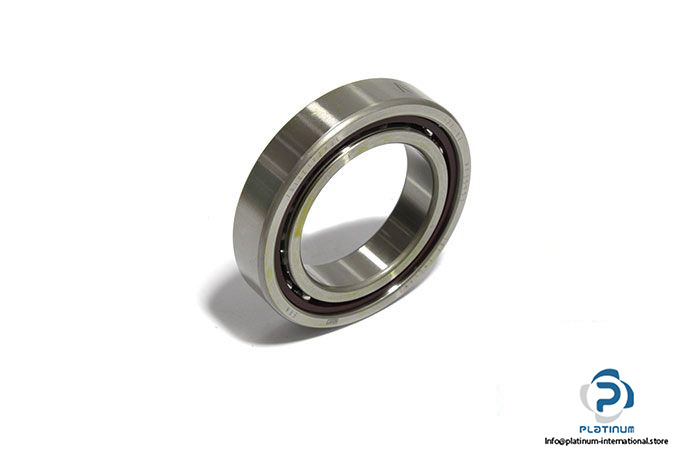

Type: Angular Contact Ball Bearing

Model: 7010CTP2HUL

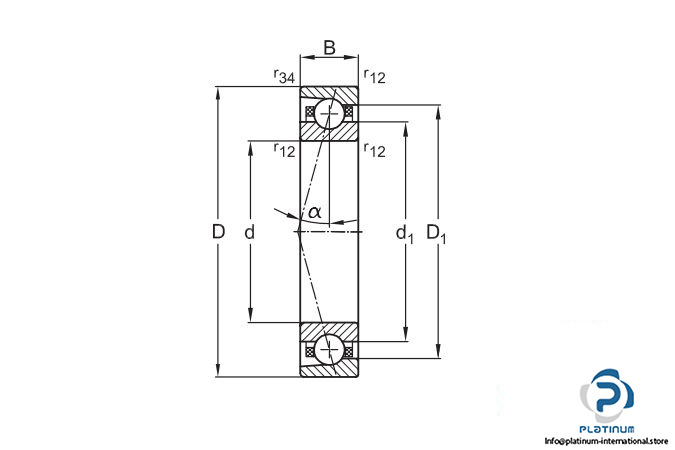

Dimensions:

Bore Diameter d: 50 mm

Outer diameter D: 80 mm

Width B: 16 mm

Contact Angle: 15°

Basic load ratings:

Dynamic C_r: 28700 N

Static C_0r: 23000 N

Fatigue load rating C_U: 852 N

Speed:

grease lubrication n_G : 16800 rpm

oil-air lubrication n_O : 27600 rpm

Accuracy: P2H

Cage: T; fabric reinforced phenolic resin

Weight: 0.28 kg
