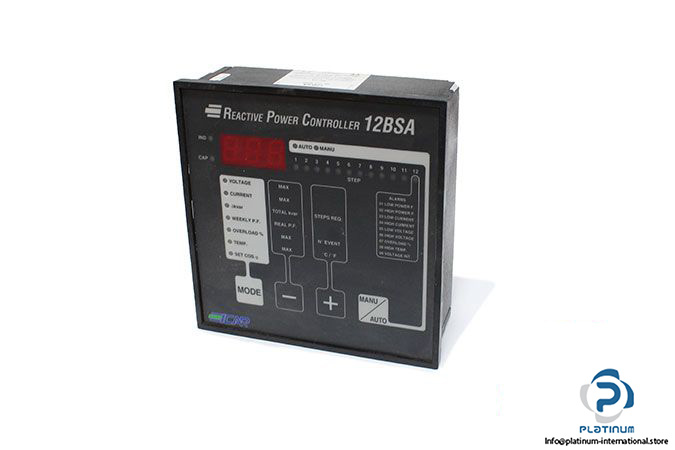

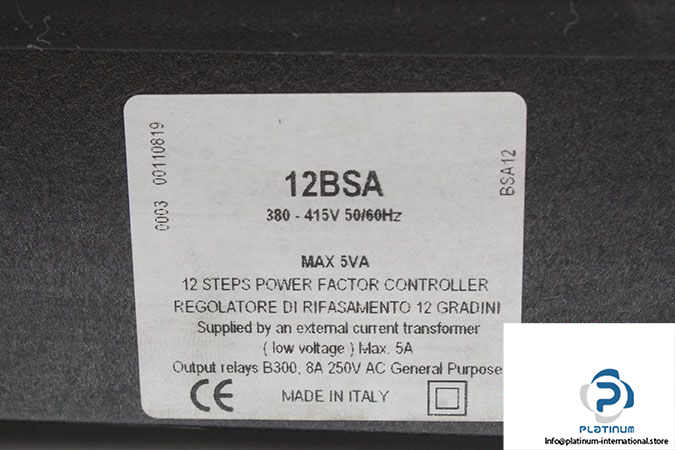

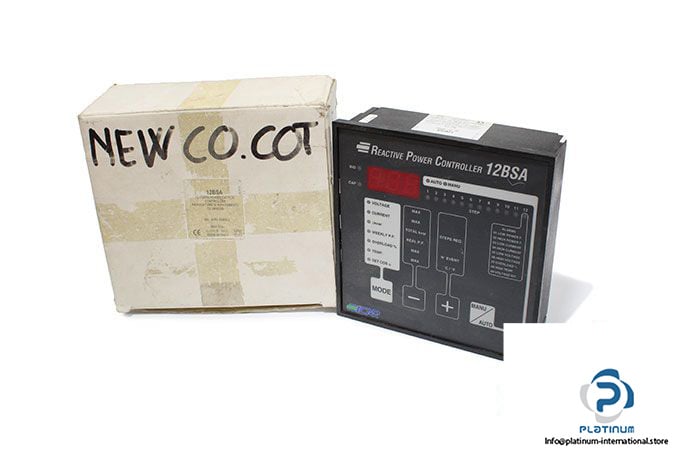

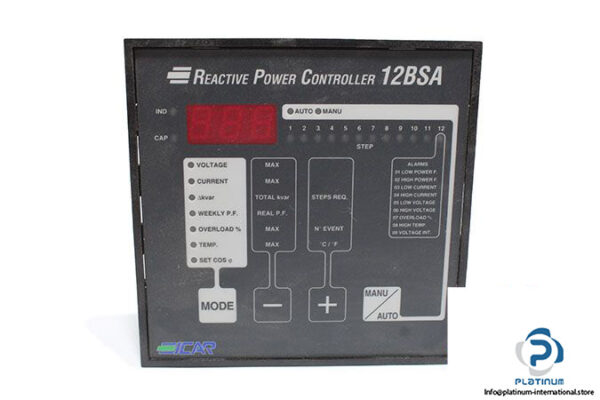

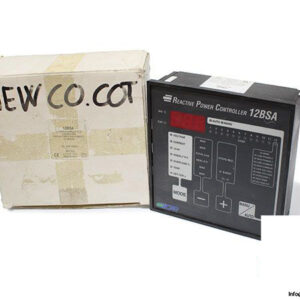

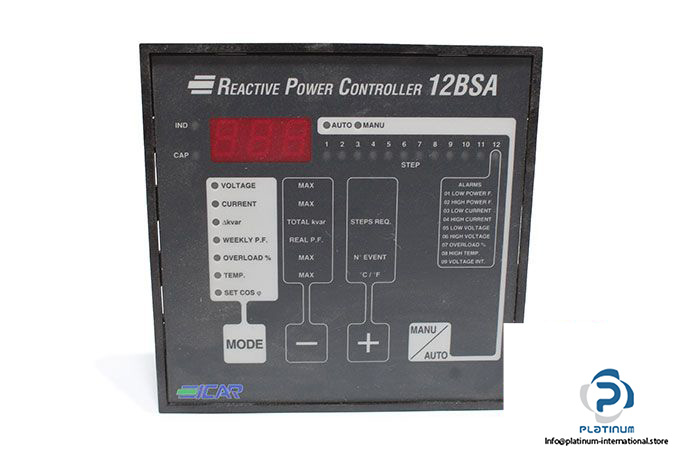

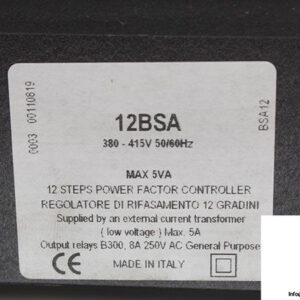

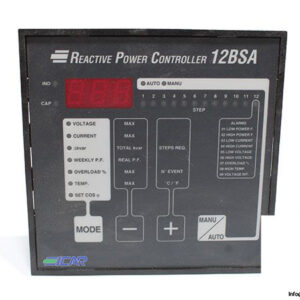

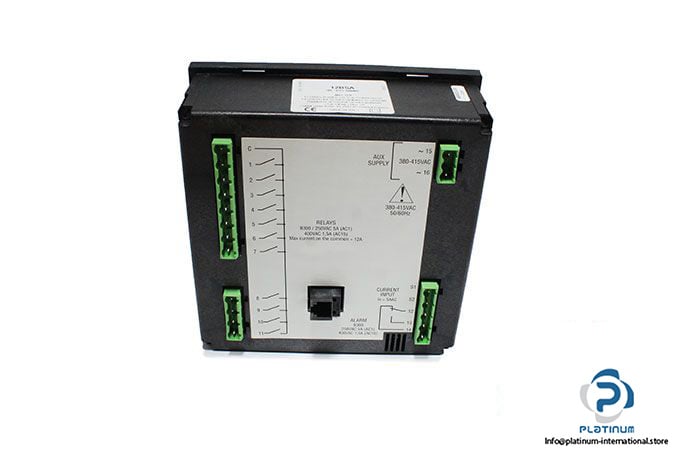

Manufactures: ICAR
Type: Reactive Power Controller
Model: 12BSA
Rated Voltage: 380… 415 VAC
Rated Frequency: 50 – 60 Hz
Max. Consumption: 5 VA
Max. Dissipation: 3 W
Maximum Power: 0.5 W with 5 A
Immunity Time for Micro-Breaking: ≤ 30 ms
Input:
Rated Current: 5 A
Input Power: 0.65 W
Output:
Number of Outputs: 12
Type of Output: 11 N/O + 1 C/O
Max. Current at Contact Common: 12 A
Rated capacity: 5 A
Rated Operating Voltage: 250 VAC
Max. Switching Voltage: 400 VAC
Operating Temperature: -20 … +60°C
Degree of Protection: IP41
Dimensions: 144 X 144 X 62 mm
Weight: 0.77 Kg
