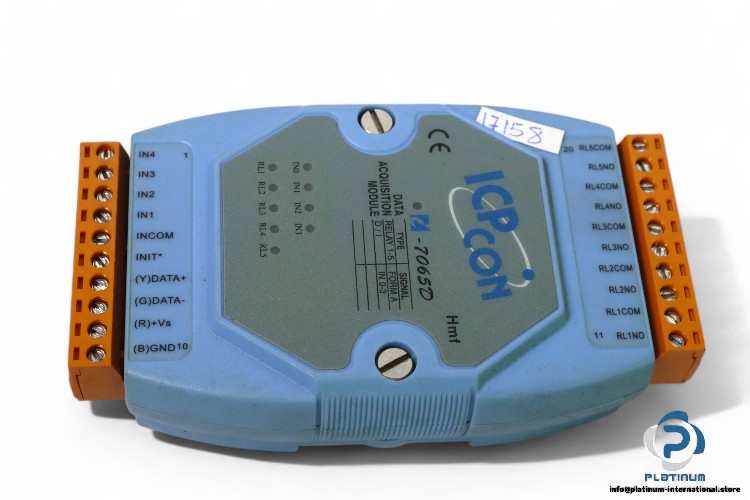

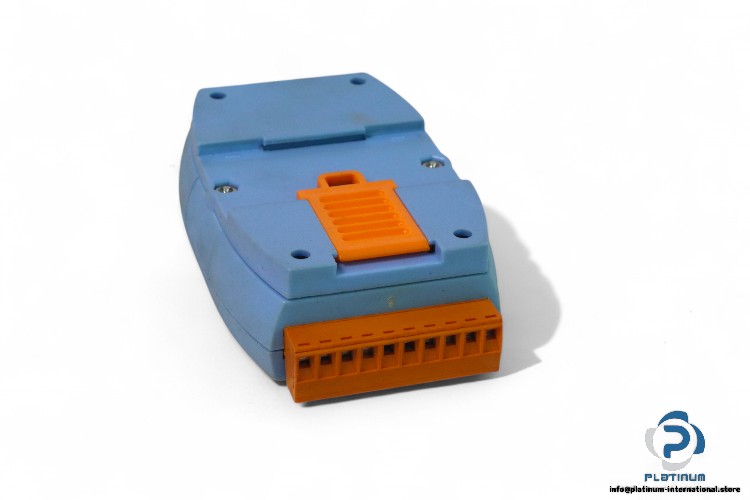

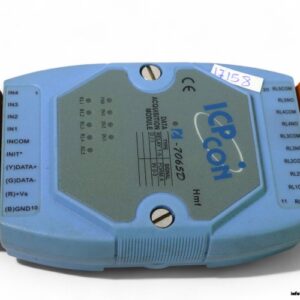

POWER RELAY MODULE with LED Display I-7065D by ICP Con
The ICP Con Power Relay Module I-7065D is a high-performance module designed for reliable switching and control in electrical systems. Featuring a user-friendly LED display, this module supports a wide input range and is equipped with advanced digital input channels, making it ideal for various industrial automation and control applications.
Key features include:
- Input Range: 4 / +30 V DC
- Power Consumption: 1.3 “ 1.8 W
- Number of Digital Inputs: 4
- Digital Input Channel/Counter: 16-bit (Maximum Counts: 65535)
- Wet Contact Type Digital Inputs: Sink- or Source-type
- Input Impedance: 3 kΩ
- Relay Outputs: 5 Power Relays
- Contact Material: Gold-plated Silver Cadmium Alloy
- Contact Rating: 5 A @ 250 VAC / 5 A @ 30 VDC
- Operate Time: 6 ms, Release Time: 3 ms
- Operating Temperature Range: -25 to +75°C
- Dimensions: 123 x 72 x 35 mm
- Installation: DIN-Rail or Wall Mounting
This power relay module is built for durability and ease of use, offering quick response times and a wide operating temperature range, making it perfect for industrial automation and control in various harsh environments.
