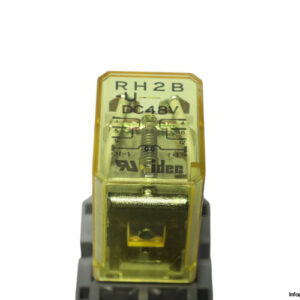

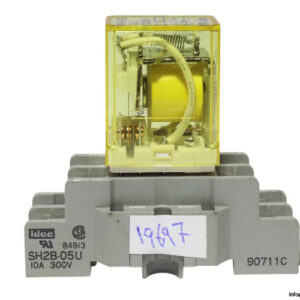

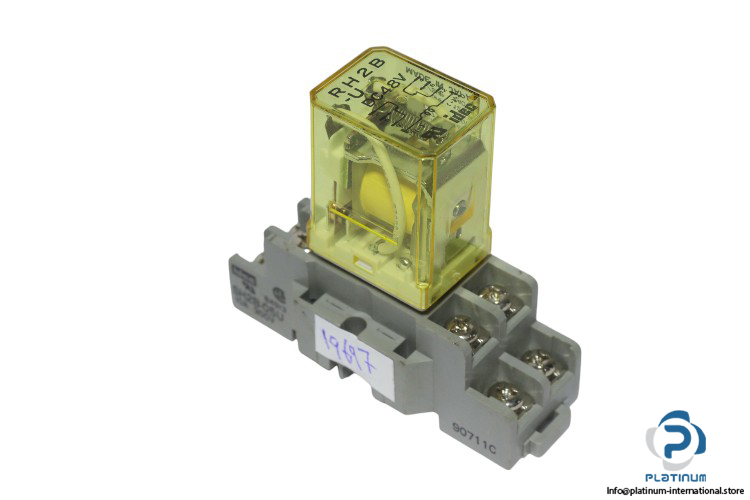

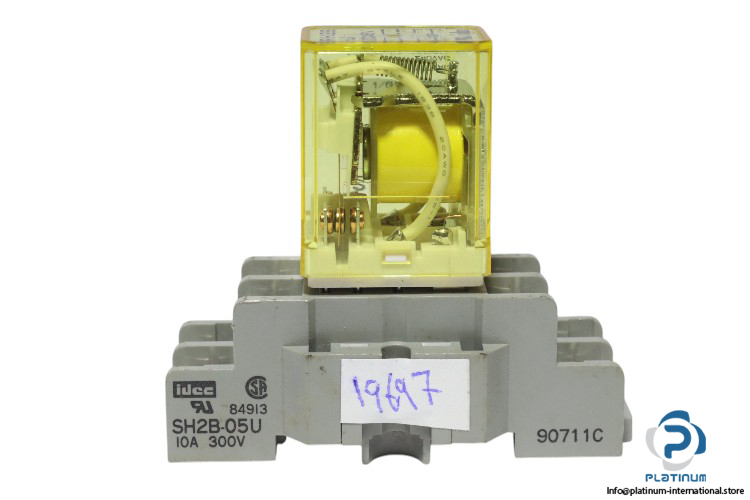

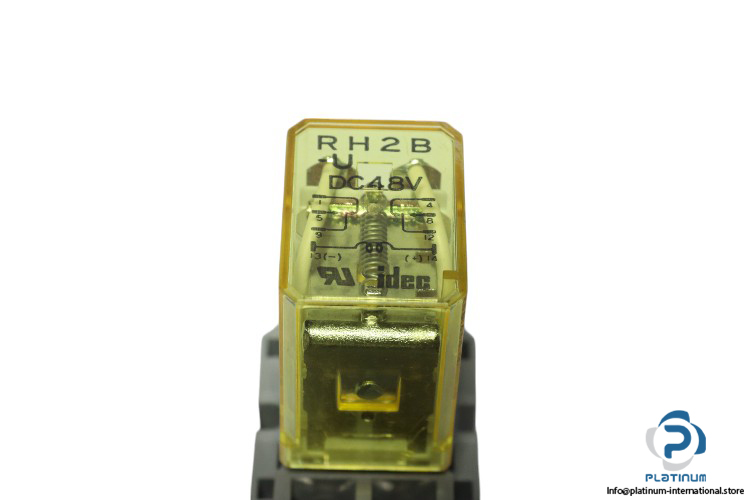

IDEC Relay SH2B-05U

The IDEC Relay SH2B-05U is a high-performance relay designed for industrial applications. With a rated voltage of 48V DC, it offers robust electrical ratings and is ideal for controlling various electrical circuits. This relay features an 8-blade style with snap-mount or surface-mount capabilities, providing ease of installation and secure connections. The SH2B-05U relay is engineered to handle up to 10A at 300V and is equipped with M3.5 screws with captive wire clamp for reliable connections.

Manufacturer: IDEC

Type: Relay

Model: SH2B-05U

Part No.: 90711C

Technical Information:

• Rated Voltage: 48V DC
• Electrical Rating: 300V, 10A
• No. of Poles: 2
• Terminal: M3.5 screws with captive wire clamp
• Wire Size: Maximum up to 2“12AWG
• Torque: 9 – 11.5 in.lbs
• Style: 8-blade, snap-mount/surface mount

This relay is built for reliability, efficiency, and durability, making it suitable for a wide range of electrical control applications.
