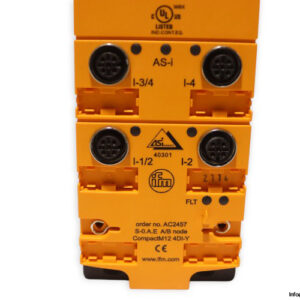

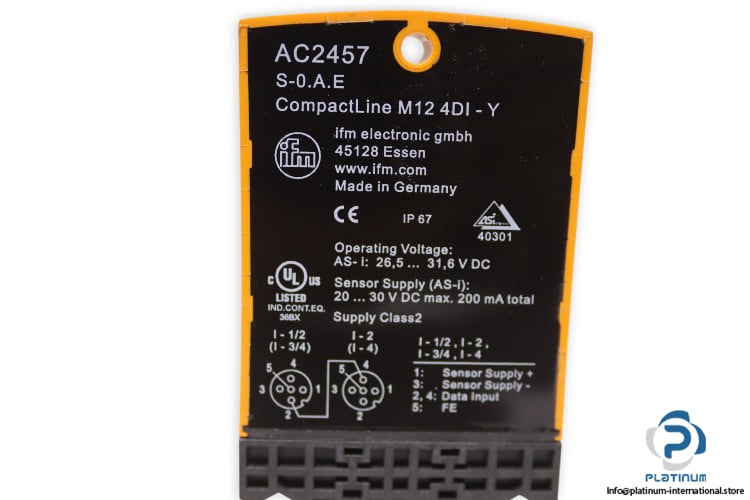

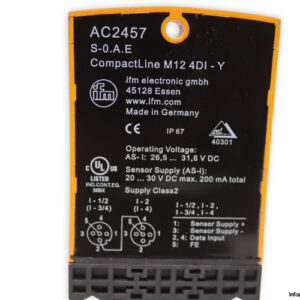

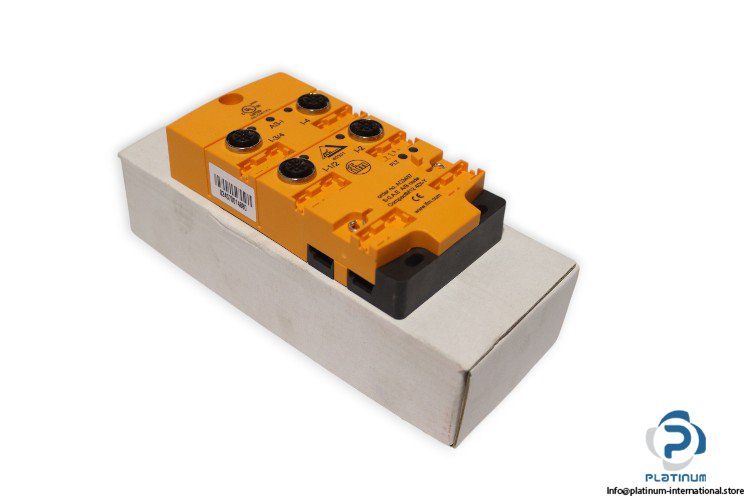

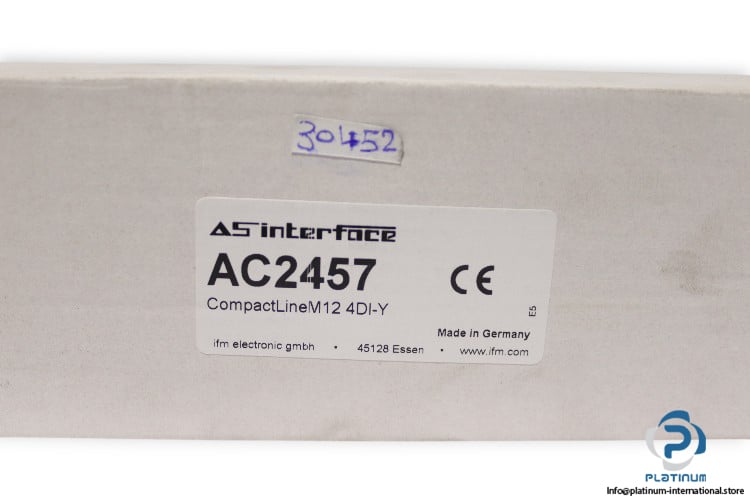

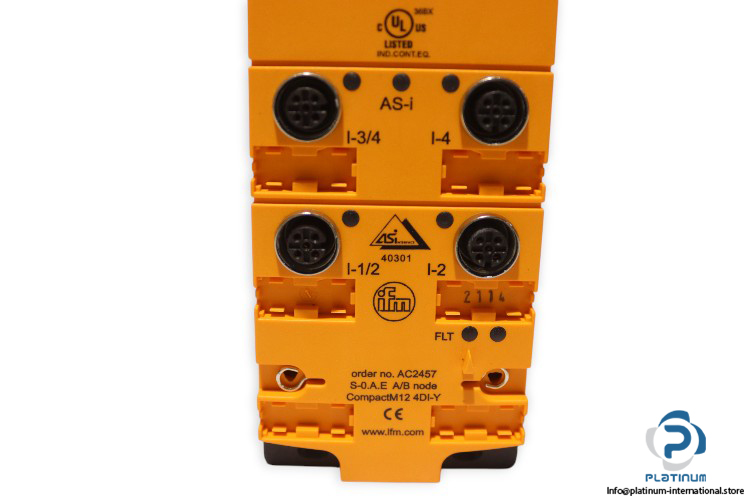

IFM AC2457 AS-Interface
The IFM AC2457 is a robust AS-Interface module with M12 4DI-Y connection, designed for reliable digital input handling in industrial automation. Built for durability, it offers high protection and stable performance in demanding environments.
Manufacturer: IFM
Type: AS-Interface
Model: AC2457
Technical Information
- M12 4DI-Y
- Operating Voltage [V]: 26.5…31.6 DC
- Max. Current Consumption from AS-i [mA]: 250
- Number of Digital Inputs: 4
- Input Circuit of Digital Inputs: PNP; (type 2 according to IEC 61131-2)
- Sensor Supply of the Inputs: AS-i
- Power Supply [V]: 20…30 (DC)
- Max. Total Current Rating of Inputs [mA]: 200
- Input Current Limitation [mA]: 15
- Input Current High [mA]: 6…10
- Input Current Low [mA]: 0…2
- Ambient Temperature [°C]: -25…80
- Max. Relative Air Humidity [%]: 90
- Max. Height Above Sea Level [m]: 2000
- Protection: IP 67
- Materials: PA
- Dimensions [mm]: 118.2 x 60 x 27
