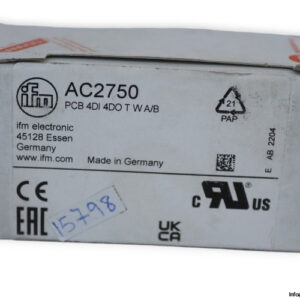

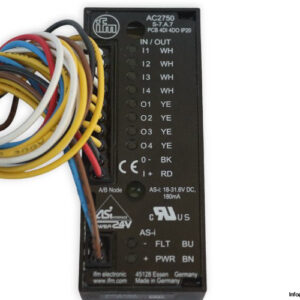

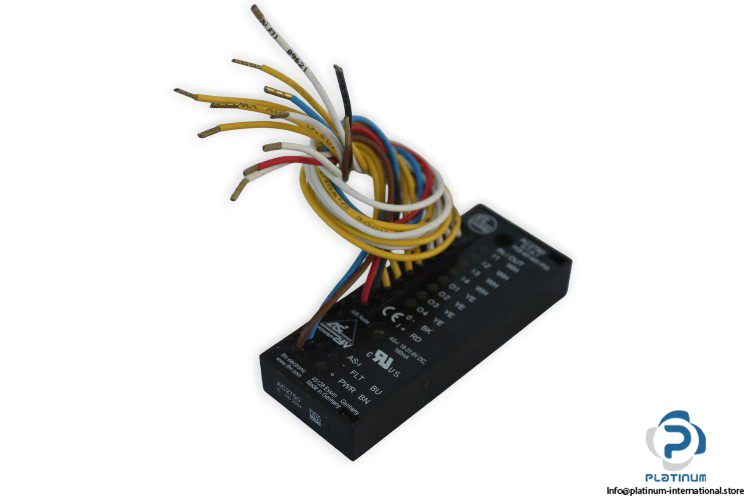

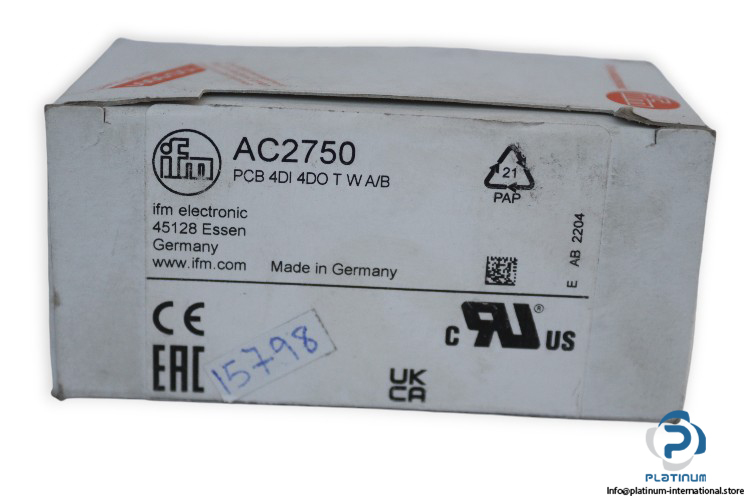

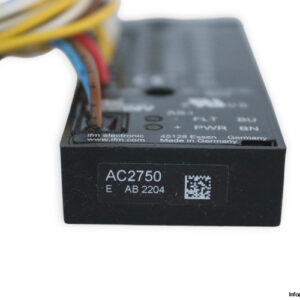

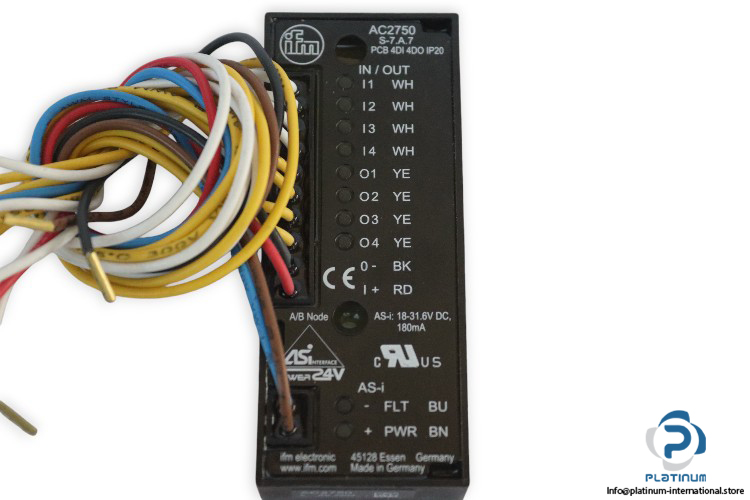

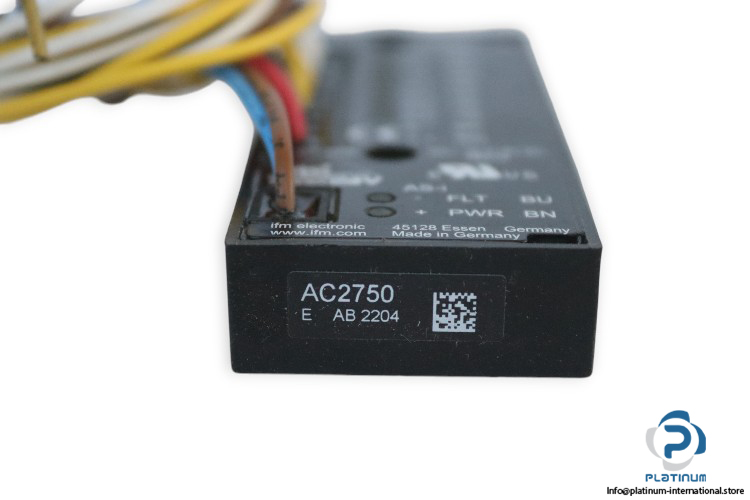

Manufacturer: IFM
Type: AS-Interface PCB module
Model: AC2750
MNR: PCB 4DI 4DO T W A/B

Operating voltage: 18 … 31.6 V DC
Max. current consumption: 180 mA
Number of digital inputs (DI): 4
Number of digital outputs (DO): 4
Electrical design: PNP
Electrical connection: Cable 0.2 m, PVC
Sensor supply of the inputs: AS-i
Input current High: 6 … 10 mA
Input current Low: 0 … 2 mA
Ambient temperature: -25 … 55°C
Protection degree: IP20
Housing: rectangular
Type of mounting: installation in a surface-mounted housing
Materials housing: PC potted
Dimensions: 76.3 x 31.1 x 12 mm
