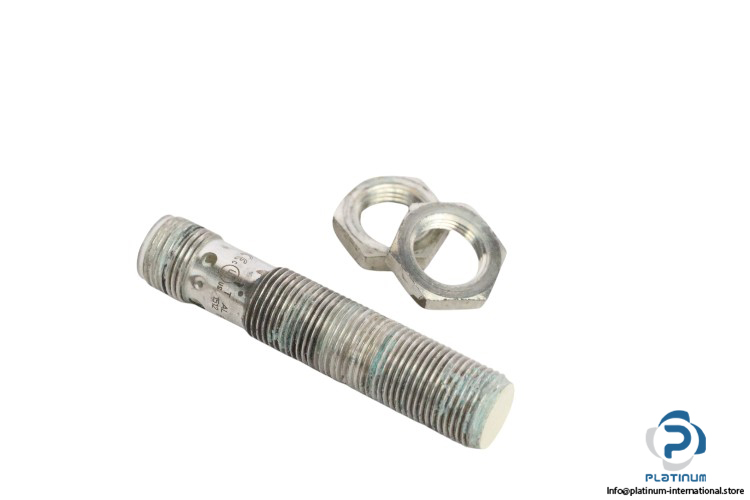

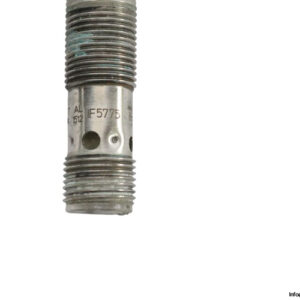

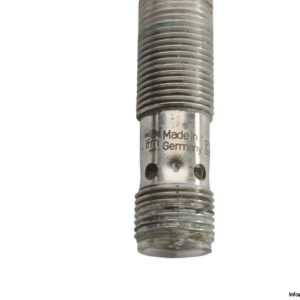

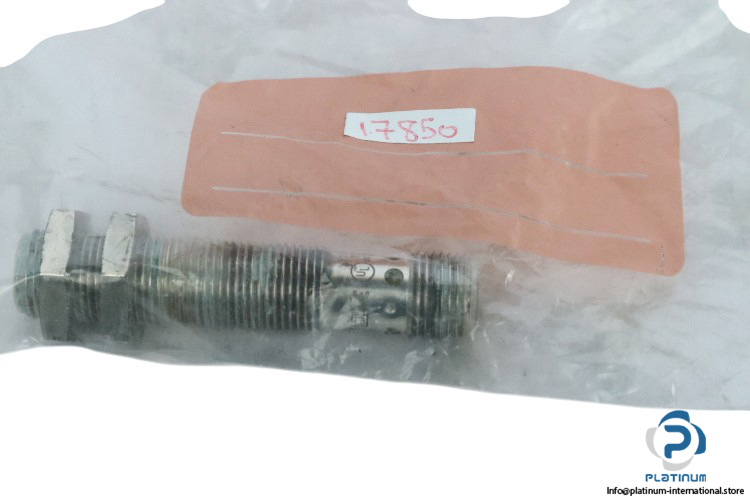

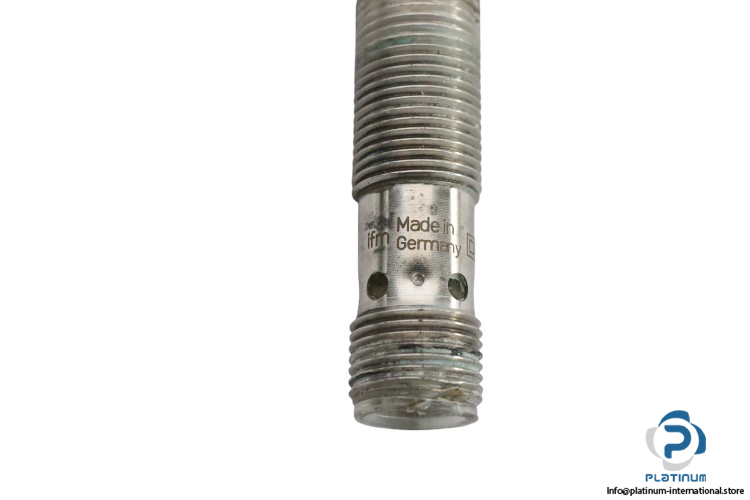

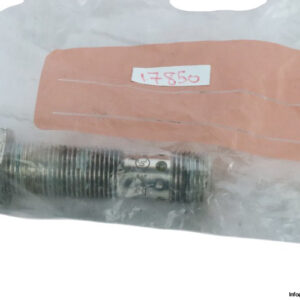

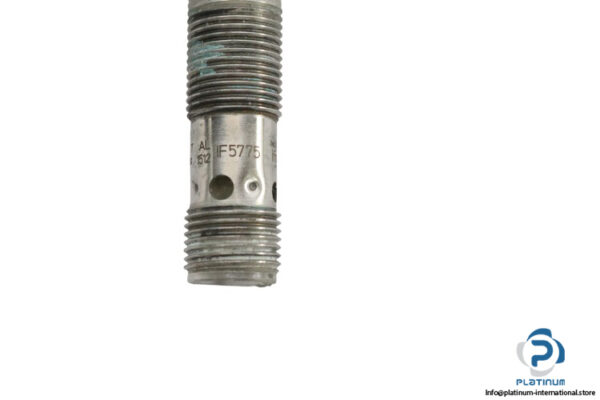

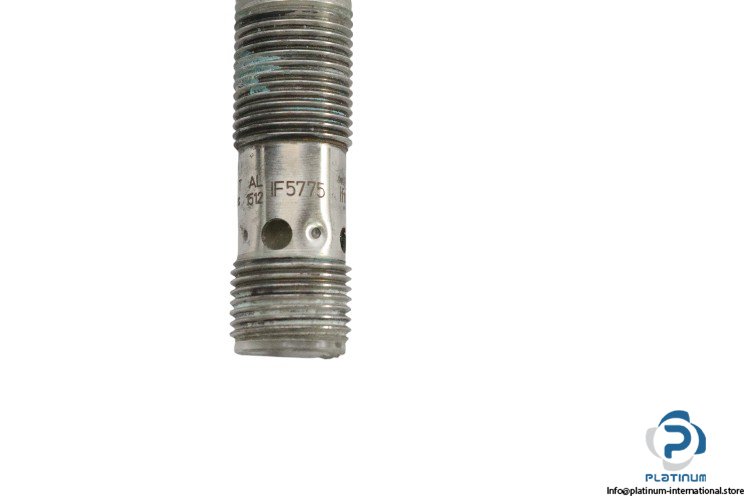

Ifm Inductive Sensor IF5775

Ifm Inductive Sensor IF5775 is a high-performance sensor designed for precise detection in industrial environments. It features a sensing range of 4 mm and an operating voltage range of 10 to 30 V DC, ensuring reliable performance under various conditions. Below are the key technical specifications:

• Manufacturer: Ifm
• Type: Inductive Sensor
• Model: IF5775

Technical Data:

• Sensing Range: 4 mm
• Operating Distance: 0 to 3.24 mm
• Operating Voltage: 10 to 30 V DC
• Electrical Design: PNP
• Switching Output: Normally open
• Current Consumption [mA]: max. 10 mA
• Connector: Connector M12
• Housing Materials: Brass white bronze coated
• Mounting: Flush mountable
• Operating Temperature: -25 to 70°C
• Enclosure Rating: IP68
• Dimensions: M12 x 1 / L = 60 mm
