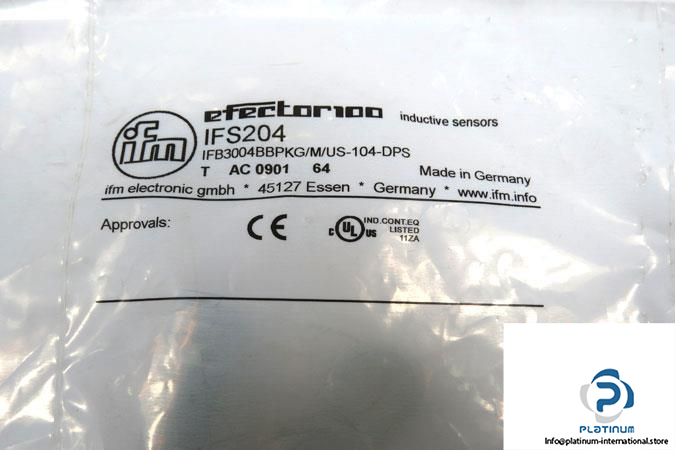

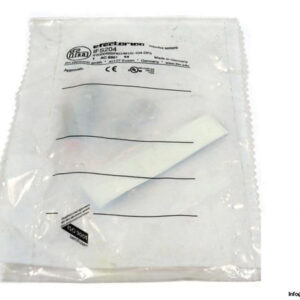

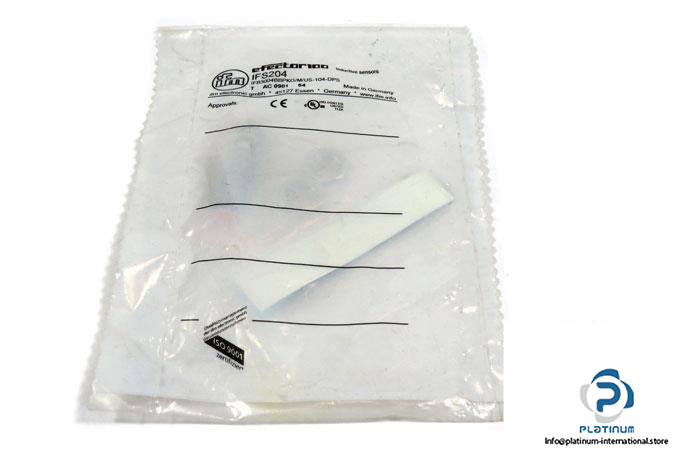

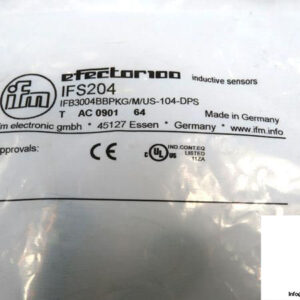

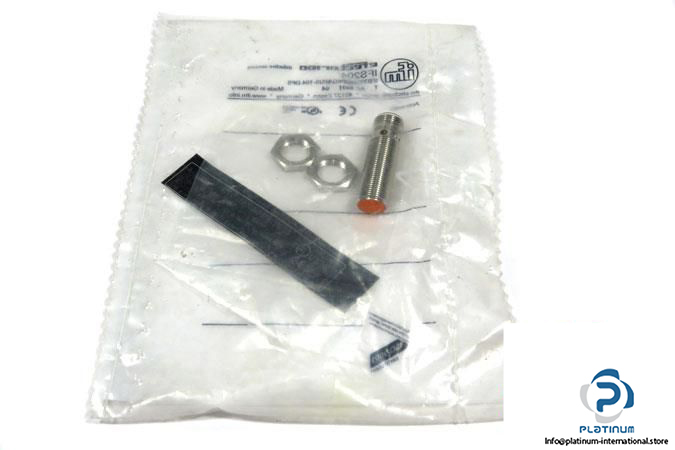

ifm IFS204 Inductive Sensor
The ifm IFS204 is a robust inductive sensor designed for precise object detection in industrial automation. With flush mounting, durable brass housing, and IP67 protection, it ensures reliable operation even in demanding environments.
Manufacturer: ifm
Type: Inductive Sensor
Part No.: IFS204
MRN: IFB3004BBPKG/US-104
Technical information
- Sensing Range: 4 mm
- Real Sensing Range: 4 ± 10% mm
- Operating Distance: 0 / 3.25 mm
- Operating Voltage: 10 / 30 V DC
- Switching Output Current: 100 mA DC
- Switching Frequency: 700 Hz
- Electrical Design: PNP
- Output Function: Normally open
- Connector Type: M12 connector
- Protection Class: II
- Enclosure Rating: IP67
- Housing: Threaded type
- Ambient Operating Temperature: -25 / 70 °C
- Diameter / Housing Length: 12 mm / 45 mm
- Material: Brass white bronze coated; sensing face: PBT orange
- Mounting: Flush mountable
