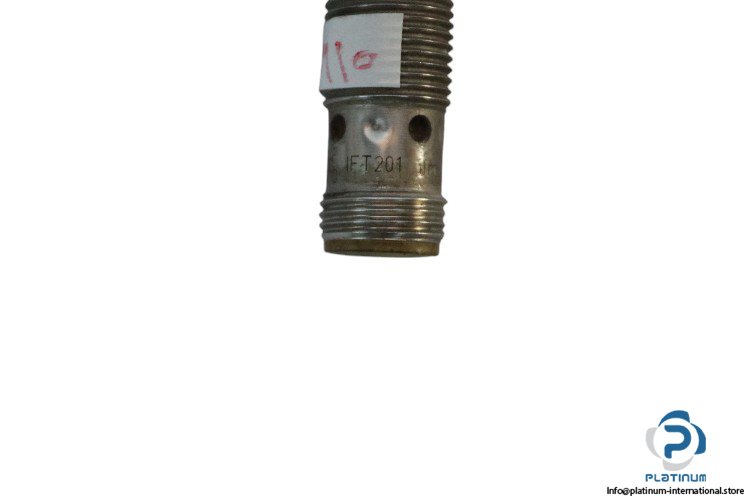

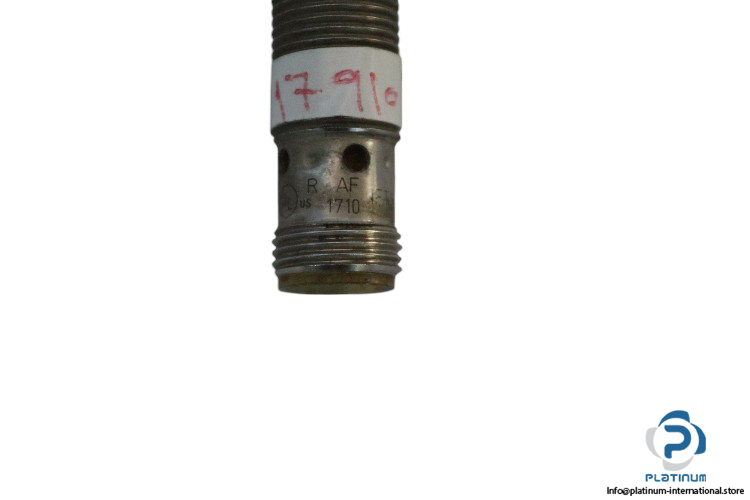

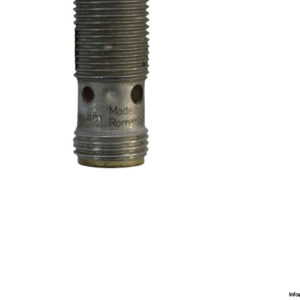

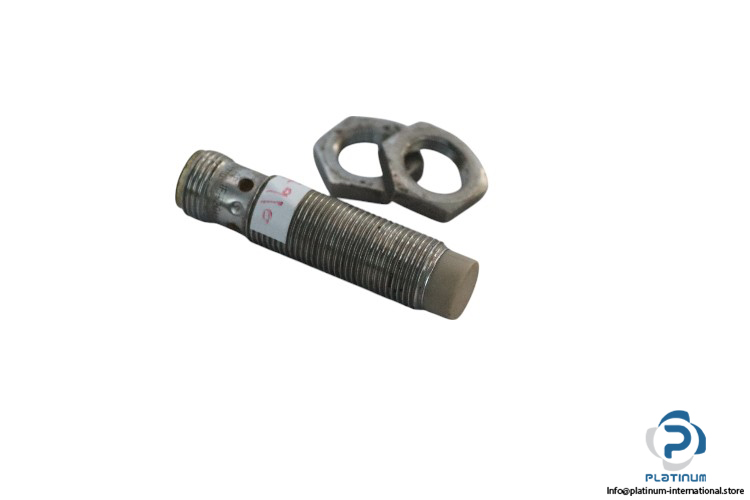

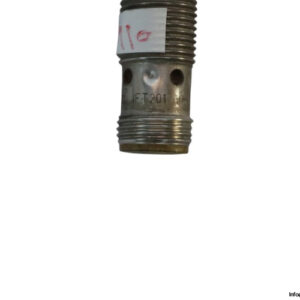

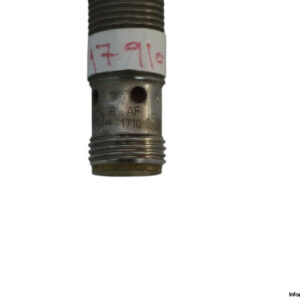

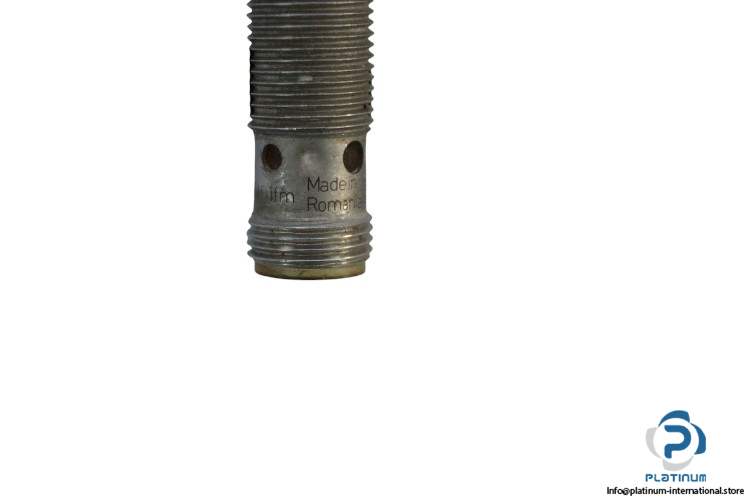

IFM IFT201 Inductive Sensor
The IFM IFT201 Inductive Sensor is a high-performance sensor designed for reliable detection in industrial environments, offering a longer sensing range and gold-plated contacts for enhanced durability. With its threaded housing, compact size, and IP68 protection, it is built for applications that involve regular cleaning processes and harsh conditions.
- Manufacturer: IFM
- Type: Inductive Sensor
- Model: IFT201
Technical Specifications:
- Operating Voltage: 10…30V DC
- Current Consumption: 10 mA
- Electrical Design: PNP
- Output Function: Normally closed
- Sensing Range: 7 mm
- Housing: Threaded type
- Protection Class: II
- Dimensions: M12 x 1 / L = 50 mm
- Tightening Torque: 15 Nm
- Special Feature: Gold-plated contacts; Increased sensing range
- Application: Regular cleaning processes
- Correction Factor: Steel: 1 / Stainless steel: 0.7 / Brass: 0.5 / Aluminium: 0.4 / Copper: 0.3
- Degree of Protection: IP68
- Ambient Temperature: 0…100°C
The IFM IFT201 Inductive Sensor is engineered for precision detection, featuring a 7 mm sensing range and gold-plated contacts for added durability. Its IP68 rating ensures protection against dust and water ingress, making it ideal for use in harsh environments and cleaning processes.
