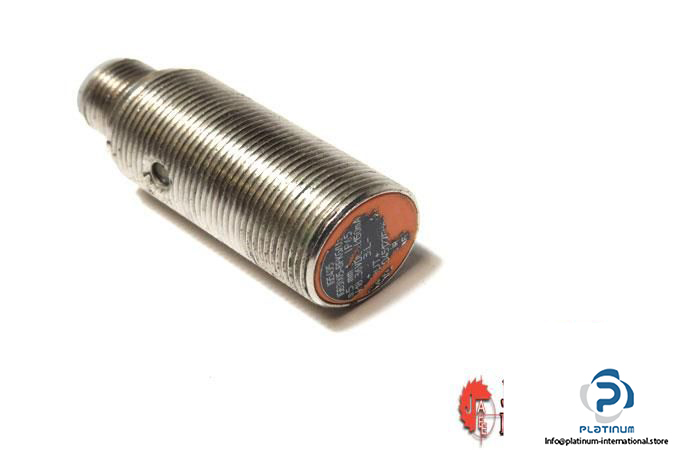

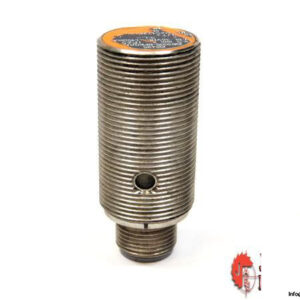

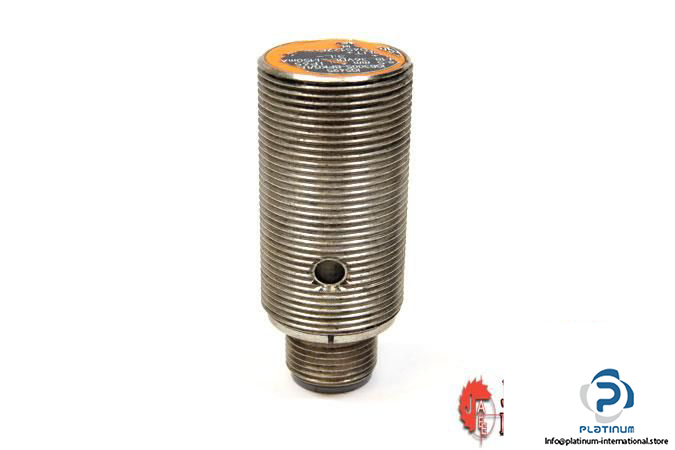

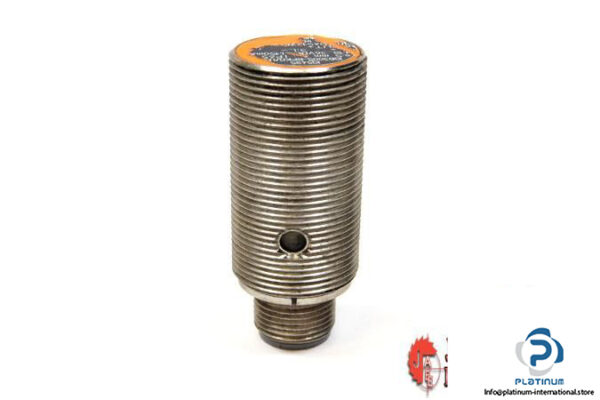

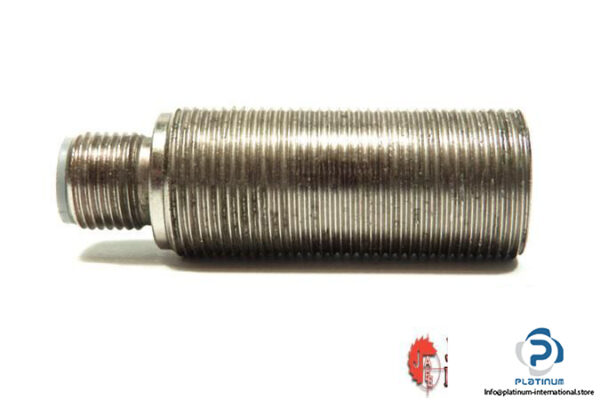

Manufacturer: IFM

Type: INDUCTIVE SENSOR

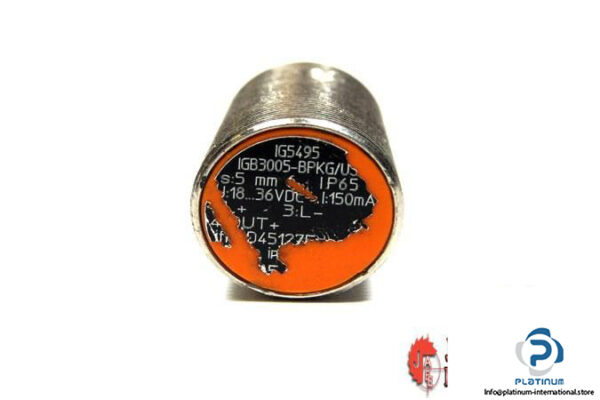

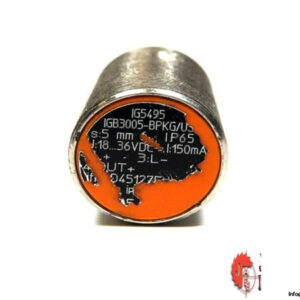

Part No.: IG5495

MRN: IGB3005-BPKG/US

Sensing Range: 5 mm

Real Sensing Range: 5 ± 10 % mm

Operating Distance: 0 … 4.05 mm

Operating Voltage: 10 … 30 V DC

Voltage Drop: 2.5 V DC

Switching output current: 100 mA DC

Current consumption: 10 mA

Switching frequency: 500 Hz DC

Electrical Design: PNP

Output: Normally open

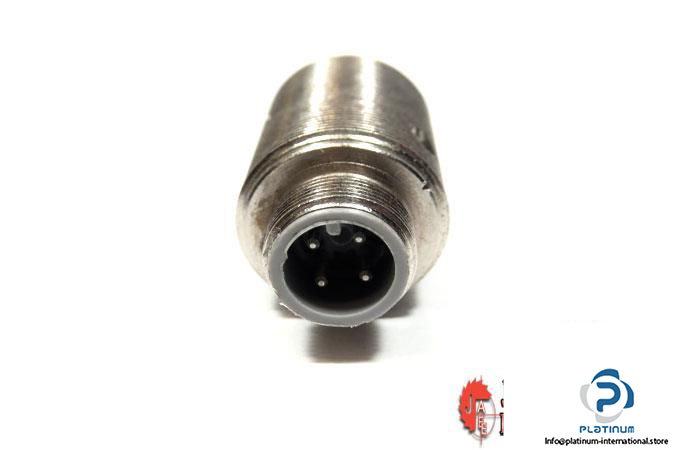

Connector type: M12 Connector

Protection Class: II

Enclosure rating: IP67

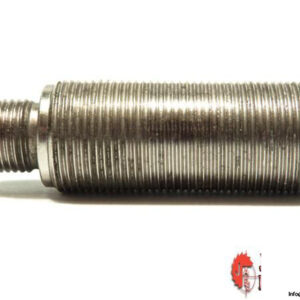

Housing: Threaded type

Ambient Operating temperature: -25 … 80 °C

Diameter, Housing length: 18, 50 mm

Material: Brass white bronze coated; sensing face: PBT orange

Mounting: Flush mountable

Weight: 44.5 g

Condition: Used
