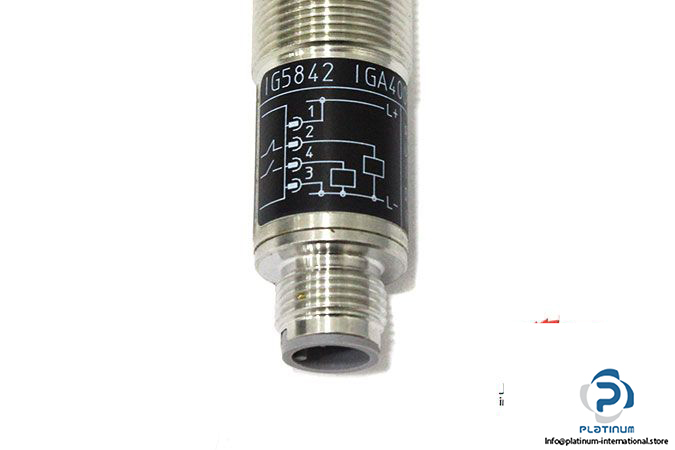

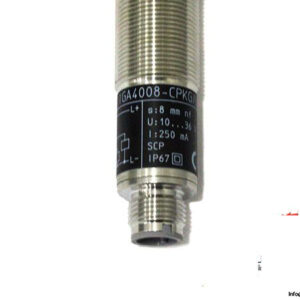

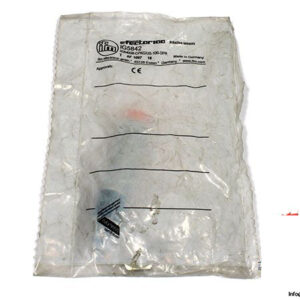

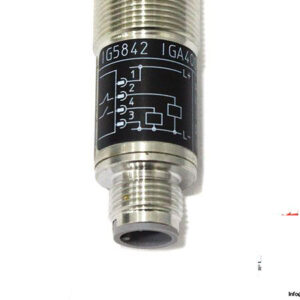

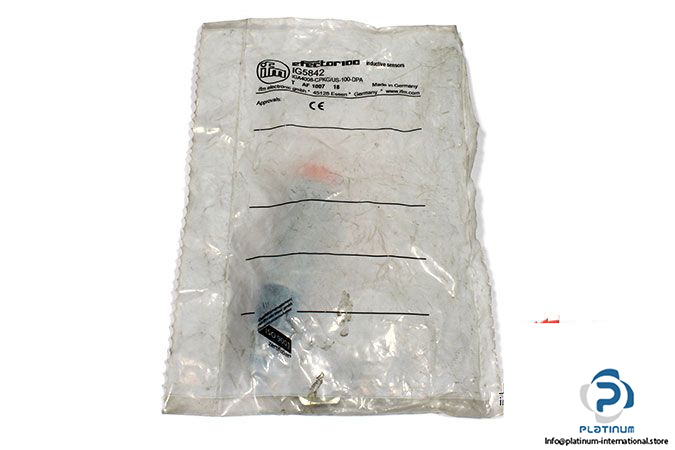

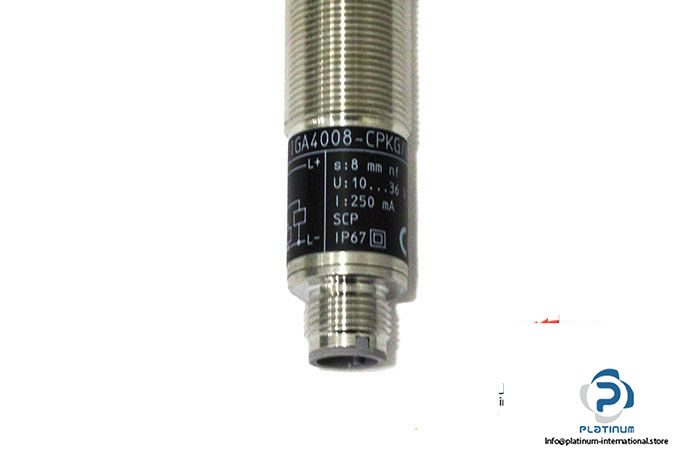

IFM IG5842 Inductive Sensor (IGA4008-CPKG/US-104)
The IFM IG5842 (IGA4008-CPKG/US-104) is a high-performance inductive sensor designed for reliable object detection in industrial environments. With an 8 mm sensing range, complementary PNP output, robust brass housing, and IP65 protection, it offers dependable performance and durability in automation systems.
Manufacturer: IFM
Type: Inductive Sensor
Part No.: IG5842
Model: IGA4008-CPKG/US-104
Technical information
- Sensing Range: 8 mm
- Operating Distance: 0 / 6.48 mm
- Operating Voltage: 10 / 30 V DC
- Current Consumption: < 10 mA
- Switching Frequency DC: 300 Hz
- Switching Output Current: 200 mA DC
- Voltage Drop Max.: 2.5 V
- Electrical Design: PNP
- Output Function: Complementary
- Protection Class: II
- Enclosure Rating: IP65
- Housing: Threaded Type
- Electrical Connection: M12 4-Pin
- Ambient Operating Temperature: -25 / 80 °C
- Diameter / Housing Length: 18 mm / 80 mm
- Material: Brass white bronze coated; Sensing Face: PBT orange
- Mounting: Non-flush mountable

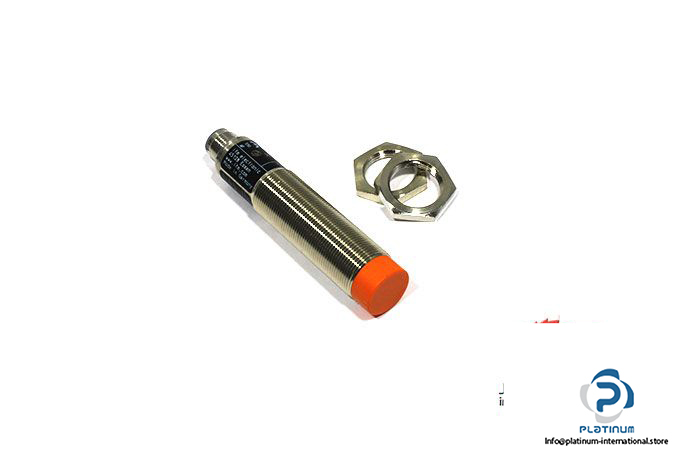

- Supplied Accessories: 2 lock nuts
