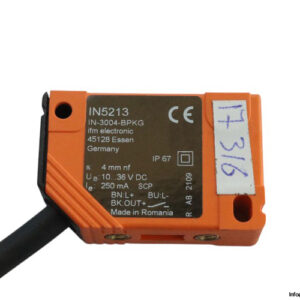

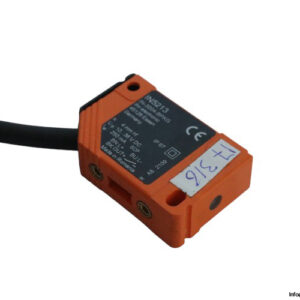

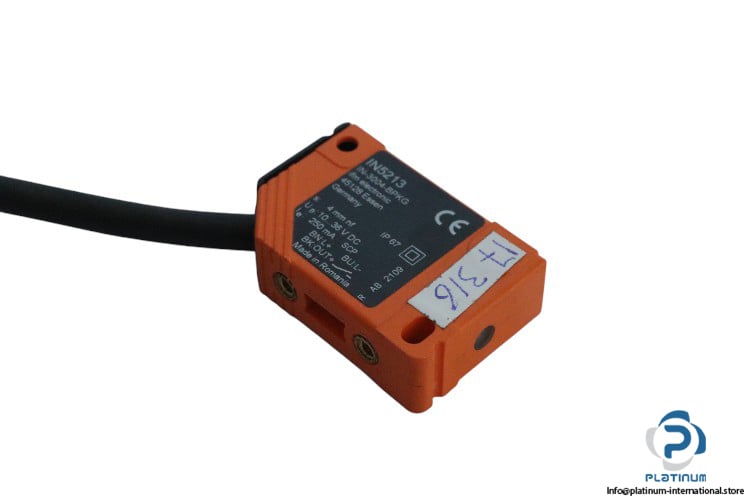

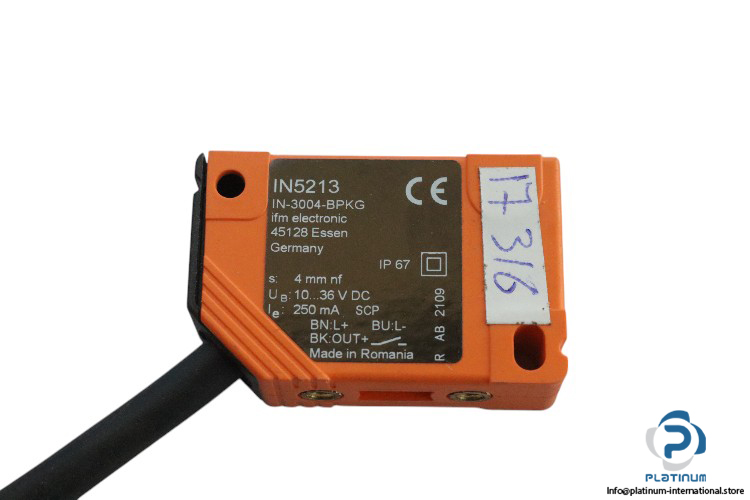

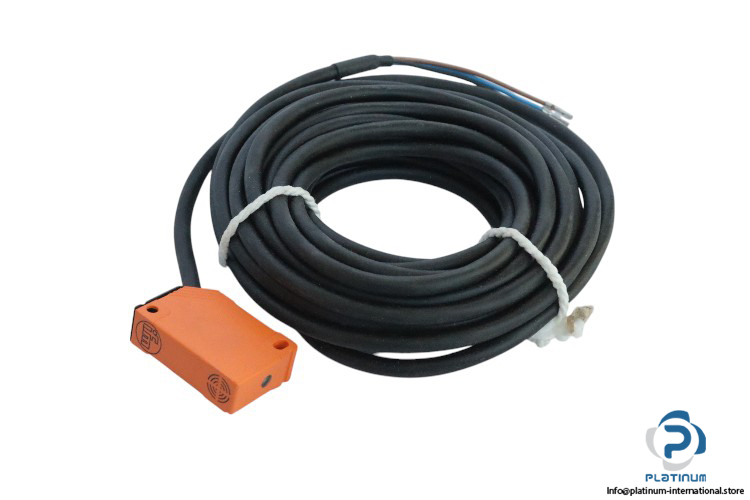

IFM Inductive Sensor IN-3004-BPKG
The IFM IN-3004-BPKG Inductive Sensor is a reliable solution for precise object detection in industrial environments. It features a 4 mm sensing range, rectangular housing, and robust IP67 protection. With its non-flush mountable design and compatibility across various metals, this sensor is engineered for demanding applications.
- Manufacturer: IFM
- Type: Inductive Sensor
- Model: IN-3004-BPKG
- Operating Voltage: 10…36 V DC
- Current Consumption: 15 mA (24 V)
- Electrical Design: PNP
- Output Function: Normally open
- Type of Short-Circuit Protection: Pulsed
- Connection: Cable: 2 m, PVC; 3 x 0.5 mm²
- Protection Class: II
- Tightening Torque: 1.2 Nm
- Sensing Range: 4 mm
- Housing: Rectangular
- Mounting: Non-flush mountable
- Correction Factor:
- Steel: 1
- Stainless Steel: 0.7
- Brass: 0.4
- Aluminium: 0.3
- Copper: 0.2
- Degree of Protection: IP67
- Ambient Temperature: -25…80°C
- Dimensions: 40 x 12 x 26 mm
