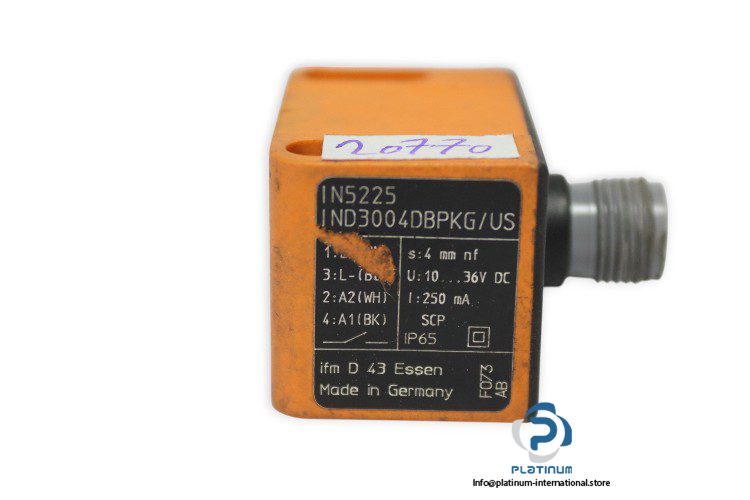

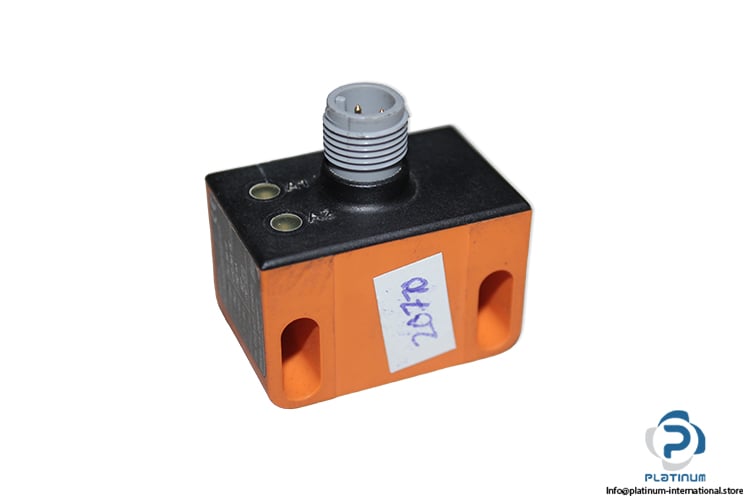

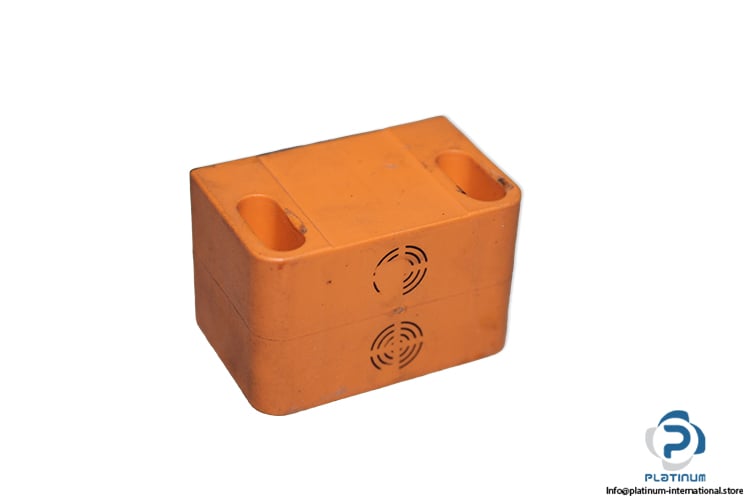

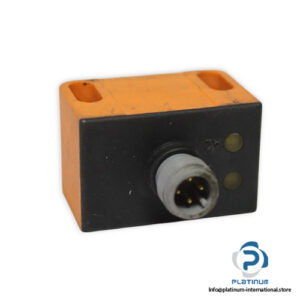

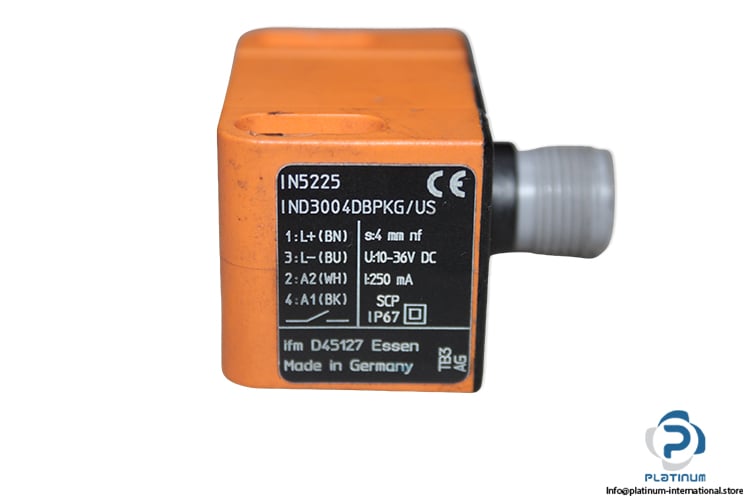

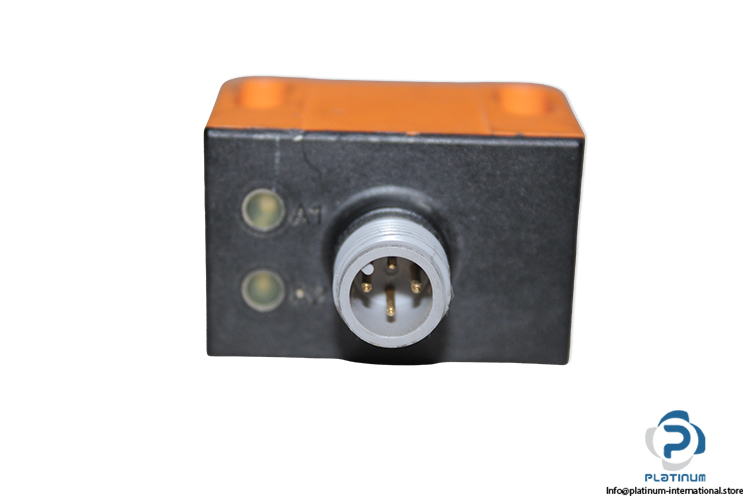

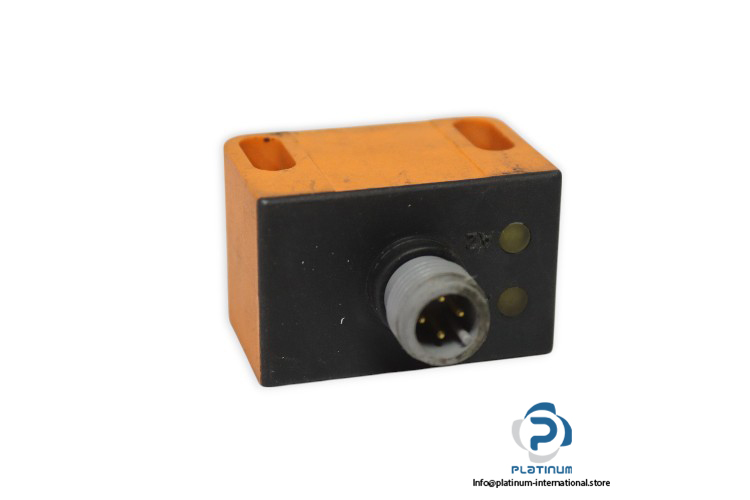

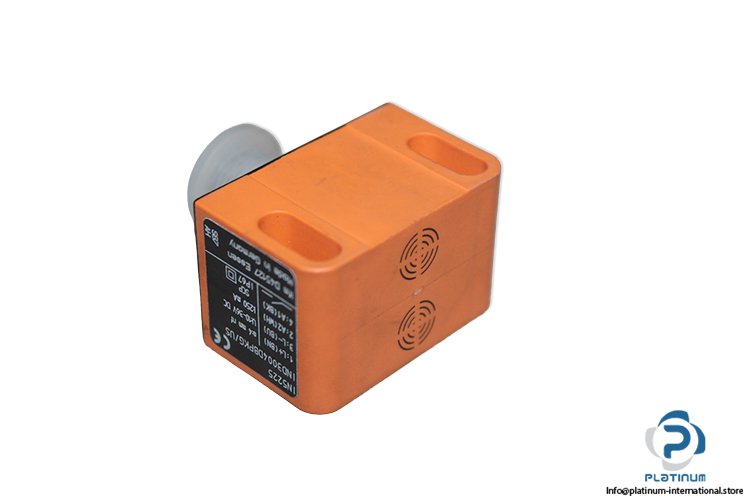

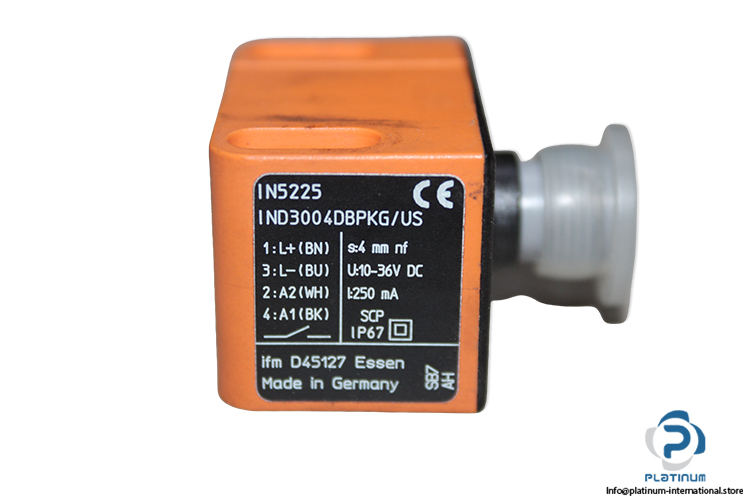

IFM IN5225 INDUCTIVE DUAL SENSOR “ IND3004DBPKG/US
Engineered for valve actuator applications, the IN5225 sensor by ifm provides high-reliability dual-position monitoring with PNP switching and IP65-rated protection in a compact rectangular housing.
Manufacturer: ifm
Type: Inductive Dual Sensor
Part No.: IN5225
MRN: IND3004DBPKG/US
Application
Designed for monitoring valve positions in actuator systems.
Technical Specifications
- Sensing Range: 4 mm
- Operating Distance: 0 / 3.25 mm
- Operating Voltage: 10 / 36 V DC
- Voltage Drop max.: 2.5 V DC
- Switching Output Current: 250 mA DC
- Switching Frequency: 1300 Hz
- Output Function: 2 x Normally Open
- Electrical Design: PNP
- Connector Type: M12 Connector, Gold Plated Contacts
- Protection Class: II
- Enclosure Rating: IP65
- Housing: Rectangular
- Ambient Operating Temperature: -25 / 80 °C
- Dimensions: 40 x 26 x 26 mm
- Material: PBT
- Mounting: Non Flush Mountable
