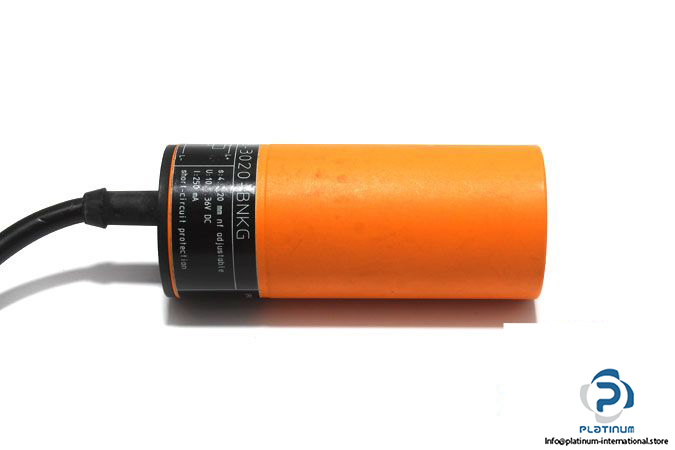

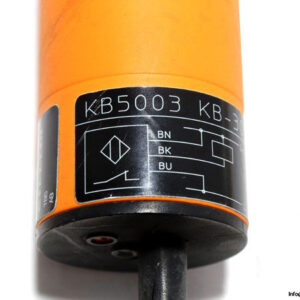

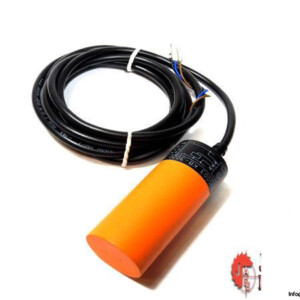

Manufacturer: IFM

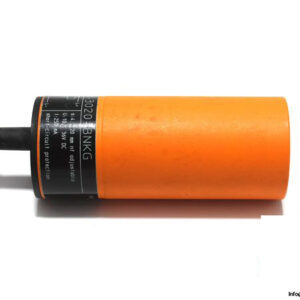

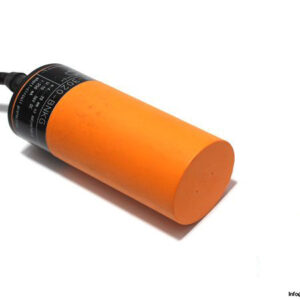

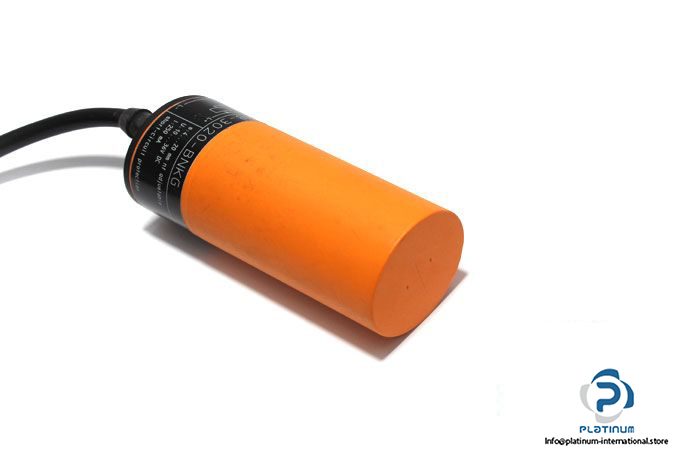

Type: CAPACITIVE SENSOR

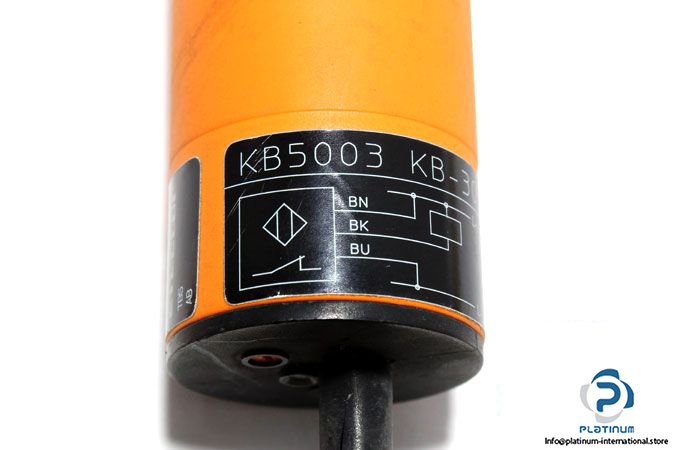

Part No.: KB5003

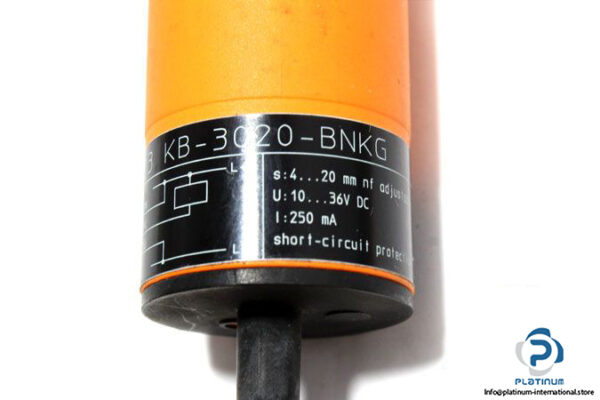

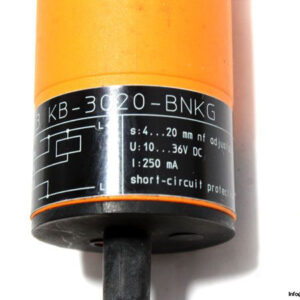

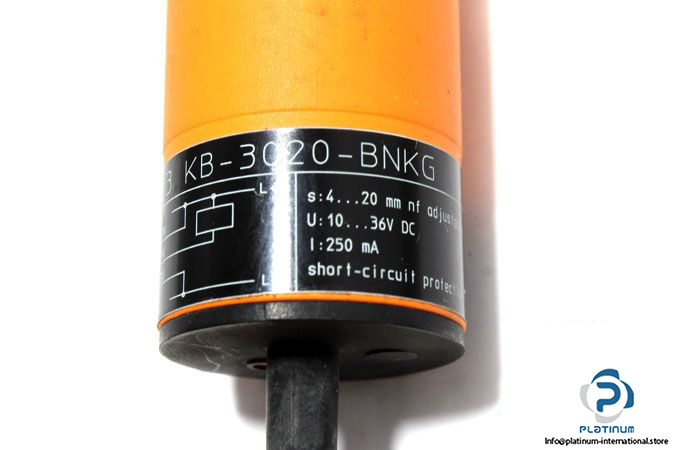

MRN: KB-3020-BNKG

Sensing Range: 4 … 20 mm

Real Sensing Range: 20 ± 10 % mm

Operating Distance: 0 … 16.2 mm

Operating Voltage: 10 … 36 V DC

Switching output current: 250 mA DC

Switching frequency: 40 Hz DC

Electrical design: NPN

Output Function: Normally closed

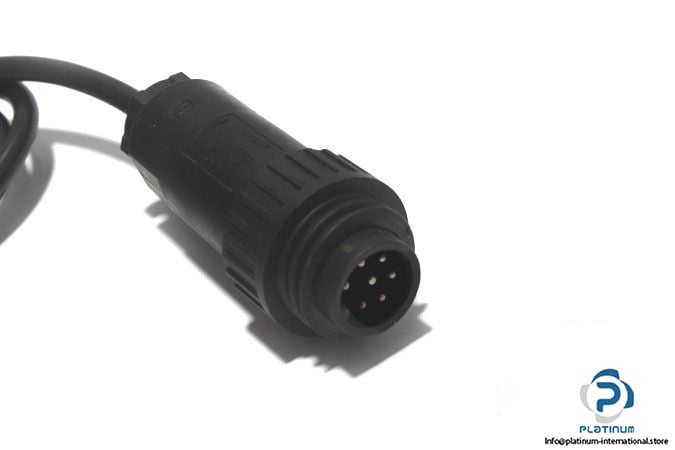

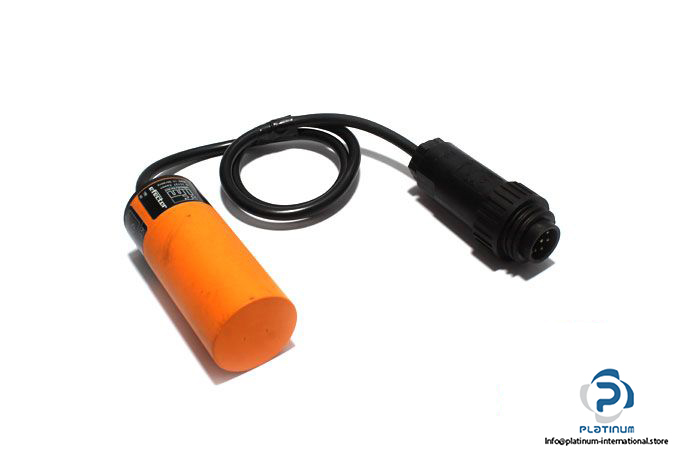

Connector type: PVC Cable,7-pin Connector

Protection Class: II

Enclosure rating: IP65

Housing: Tubular

Ambient Operating temperature: -25 … 70°C

Diameter, Housing length: 34. 81 mm

Material: PBT

Mounting: non-flush mountable

Weight: 255 g
