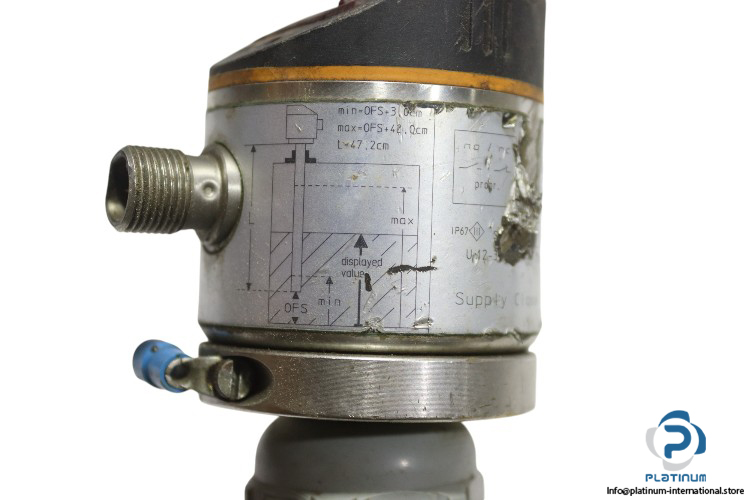

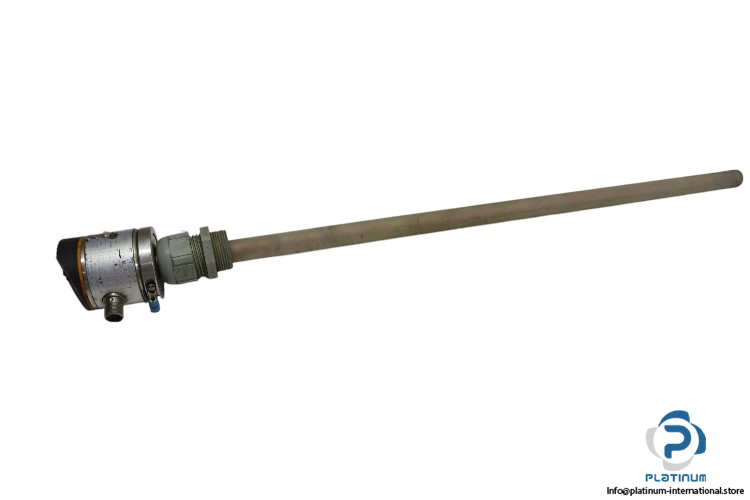

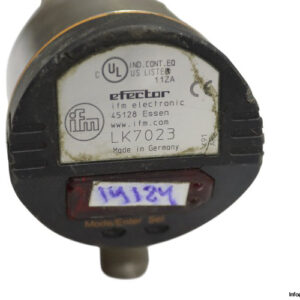

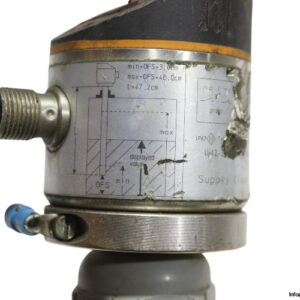

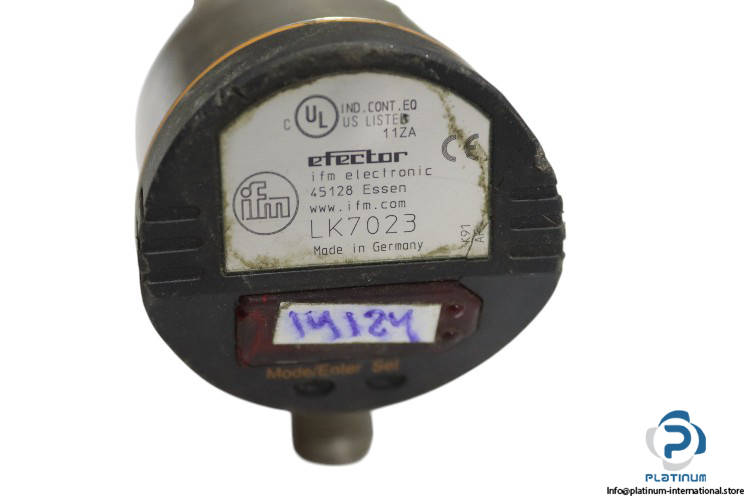

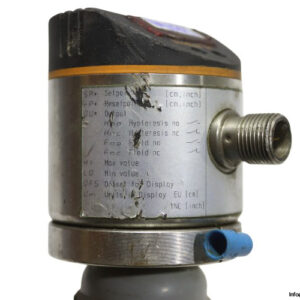

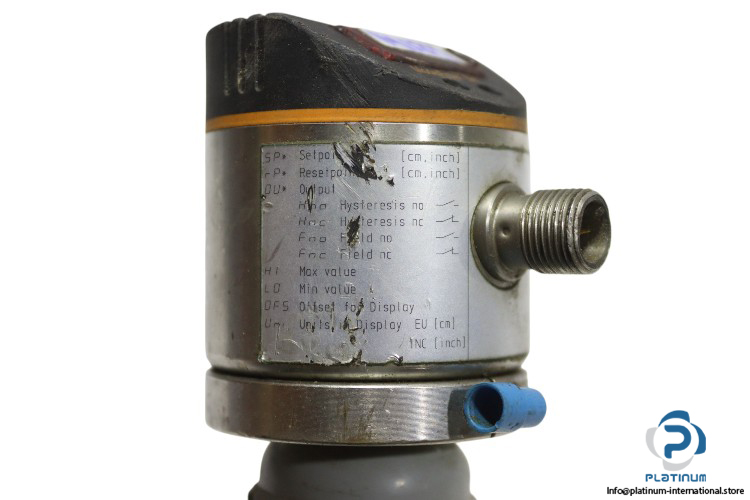

IFM LK 7023 “ Electronic Level Sensor
The IFM LK 7023 electronic level sensor is a highly precise and reliable sensor designed for industrial applications. It offers excellent performance in detecting liquid levels in various media, such as coolants, oils, and water-based solutions, with configurable switching outputs for versatile system integration.
- Manufacturer: IFM
- Type: Electronic Level Sensor
- Family: Efector
- Model: LK 7023
Technical Information:
- Operating Voltage: 12 to 30 V DC
- Current Consumption: <80 mA
- Number of Digital Outputs (DO): 2
- Media: Hydrous coolants; oils; oil-based media; water; media similar to water
- Output Signal: Switching Signal; IO-Link
- Electrical Design: PNP/NPN
- Output Function: Normally open/closed; (configurable)
- Max. Voltage Drops Switching Output: 2.5 V DC
- Set Point: 35 to 390 mm
- Reset Point: 30 to 385 mm
- Resolution: 5 mm
- Tank Pressure: 0.5 bar
- Electrical Connection: Connector: 1 x M12; coding: A; Contacts: gold-plated
- Medium Temperature: 0 to 35 °C
- Probe Length: 472 mm
