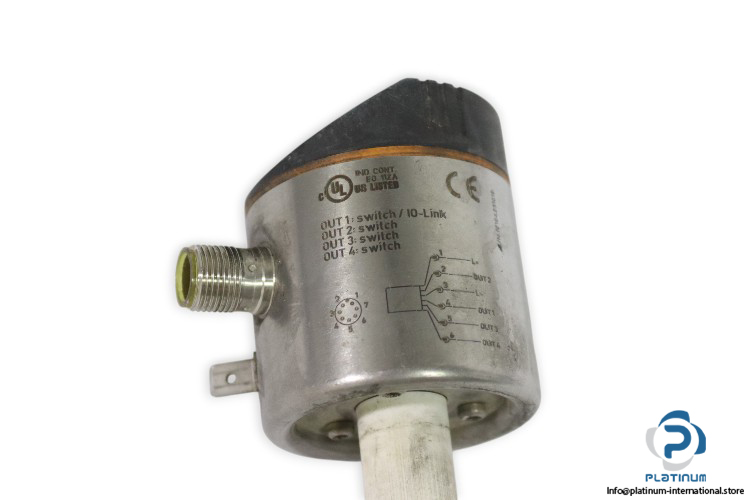

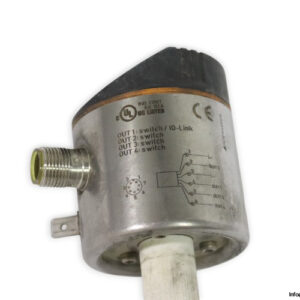

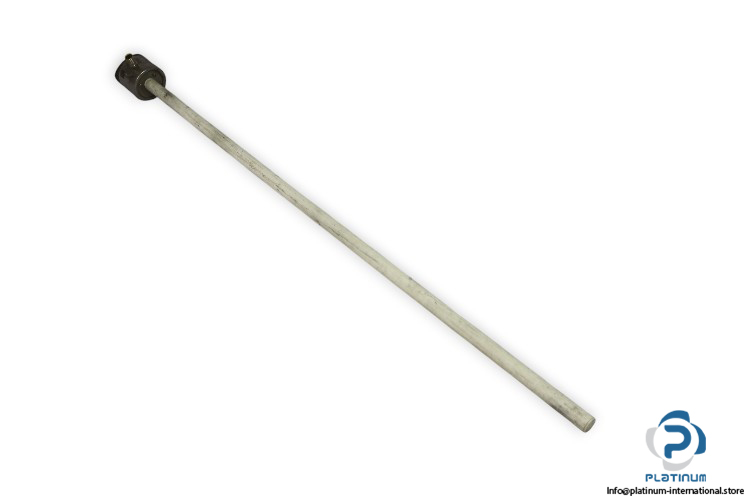

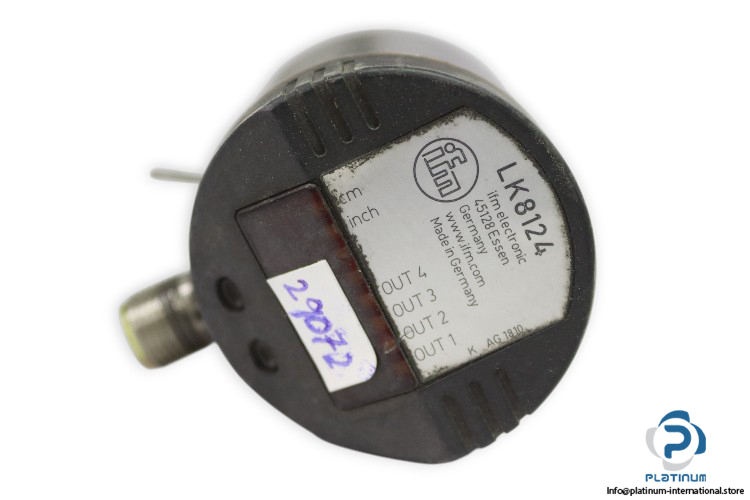

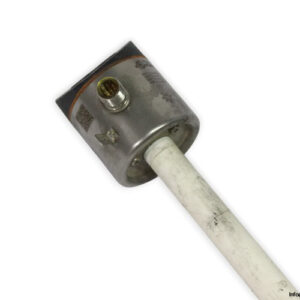

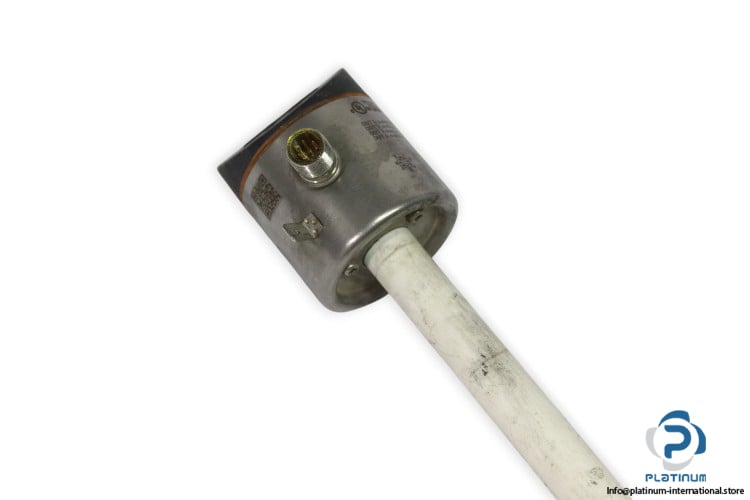

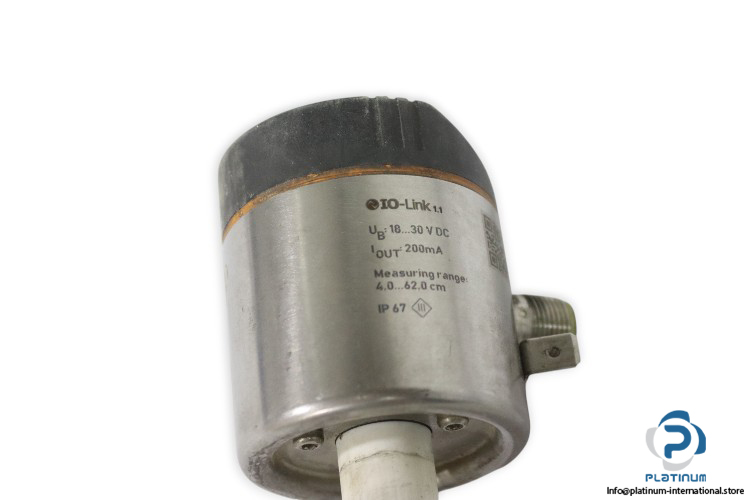

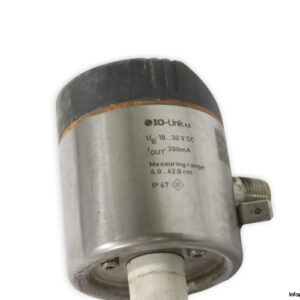

IFM LK8124 Electronic Level Sensor
The IFM LK8124 is a high-performance electronic level sensor designed for precise detection and monitoring of liquids such as water, oils, hydrous coolants, and oil-based media. Built with IO-Link technology and robust housing materials, it ensures reliable operation even in demanding industrial environments.
Manufacturer: IFM
Type: Electronic Level Sensor
Model: LK8124
MNR: LK0728B-B-00KVPKG/US
Technical Information
- Application: Hydrous coolants; oils; oil-based media; water; media similar to water
- Technology: IO-Link
- Probe Length: 728 mm
- Active Range: 585 mm
- Operating Voltage: 18 / 30 V DC
- Rating Current: 200 mA
- Measuring Range: 4 / 62 cm
- IP Rating: IP67
- Electrical Design: DC PNP
- Maximum Speed Of Level Change: 300 mm/s
- Switching Output: 3x normally open/closed programmable (OUT1…OUT3); 1x normally open/closed programmable (OUT-OP)
- Connector Type: 1 x M12 Connector
- Materials (Wetted Parts): PP
- Housing Materials: Stainless Steel (304S15); FKM; NBR; PBT; PC; PEI; PP; TPE/V
- Medium Temperature (Oil): 0 / 70 °C
