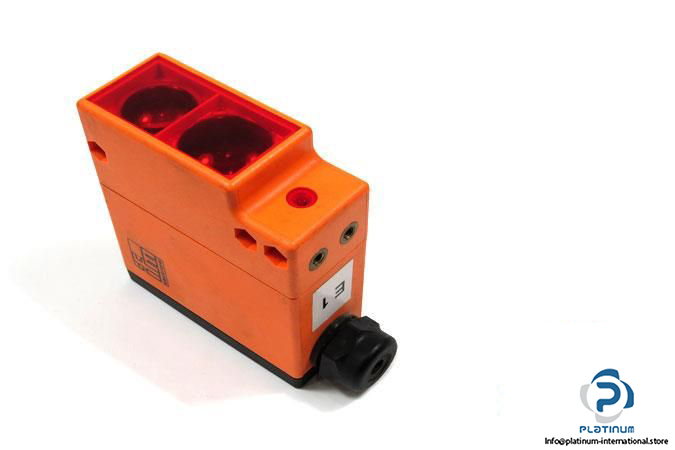

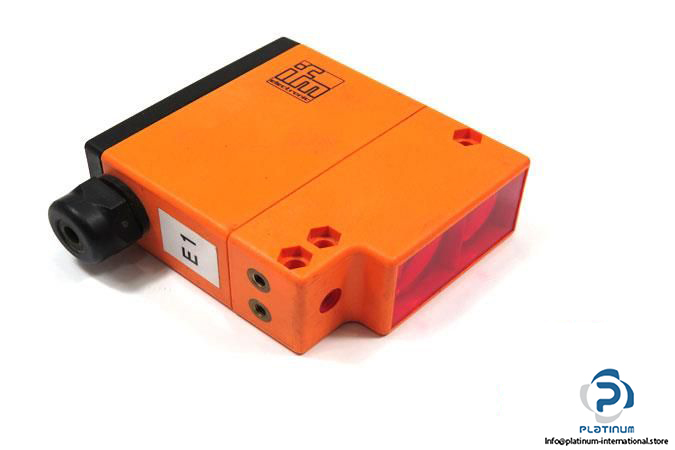

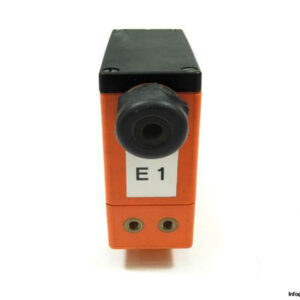

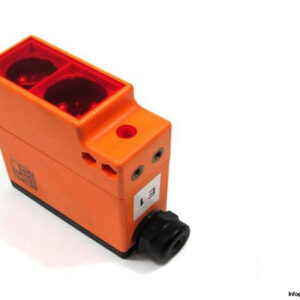

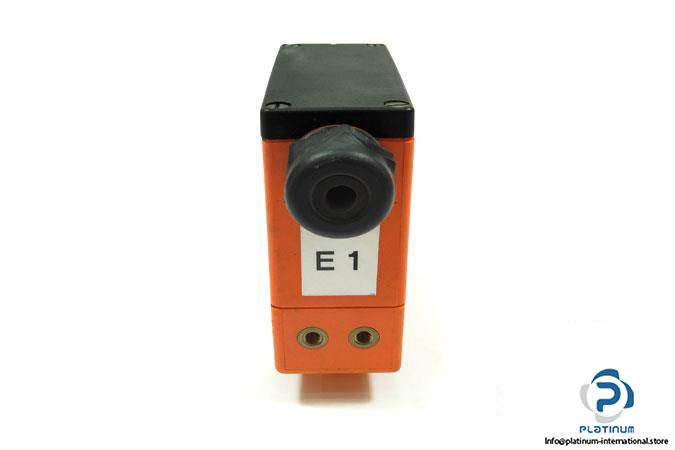

Manufacturer: ifm

Type: PHOTOELECTRIC DIFFUSE REFLECTION SENSOR

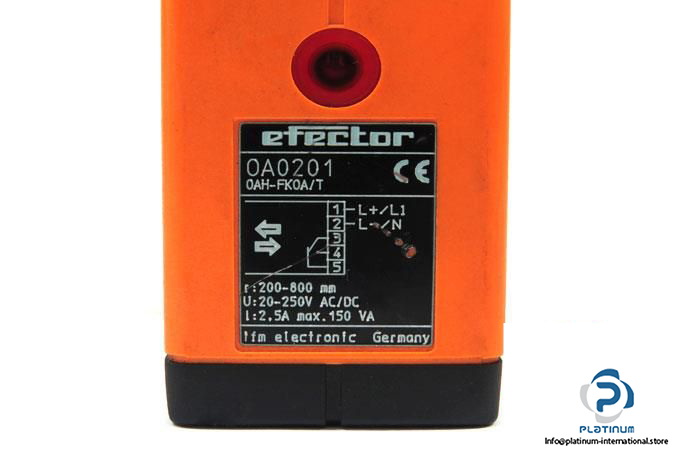

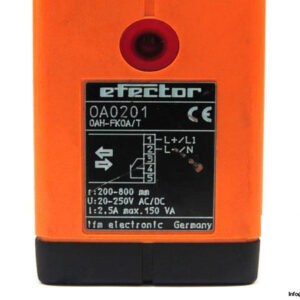

Part No.: 0A0201

MRN: OAH-FKOA/T

Sensing Range: 200 … 800 mm

Operating Voltage: 20 … 250 V AC/DC, at 47 … 63 for AC

Switching Output Current (AC, DC): 2500 mA AC, 2500 mA DC

Power Consumption Max: 2 VA

Switching Frequency (AC, DC): 10, 10 Hz

Electrical Design: Relay

Output Function: Light-on/Dark-on Mode

Type of Light: Infrared Light

Wave Length: 950 nm

Light Spot Diameter Max.: 15 mm

Connector Type: Cable Gland: M16 X 1.5

Enclosure Rating: IP67

Housing: Rectangular

Ambient Operating Temperature: -25 … 55°C

Dimensions: 85 x 36 x 100 mm

Material: PPO Modified

Lens Material: PMMA

Weight: 0.25 kg
