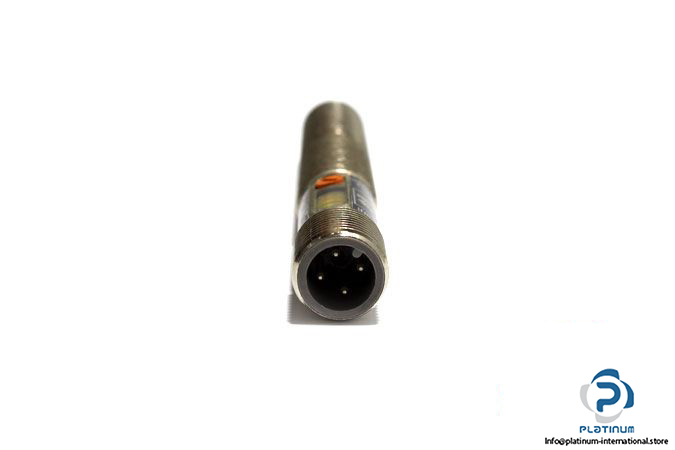

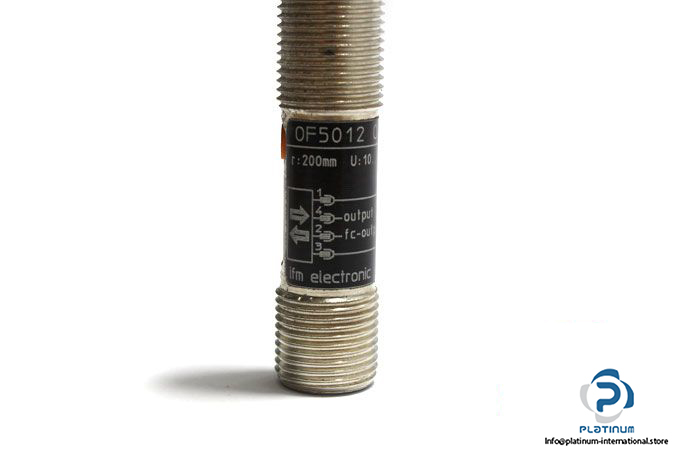

Manufacturer: ifm

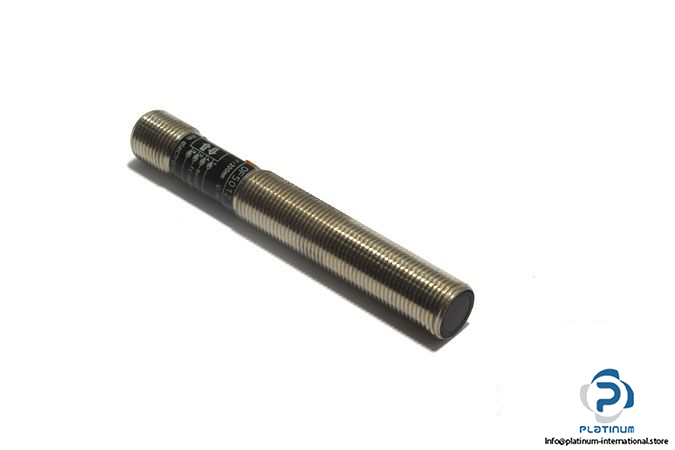

Type: DIFFUSE REFLECTION SENSOR

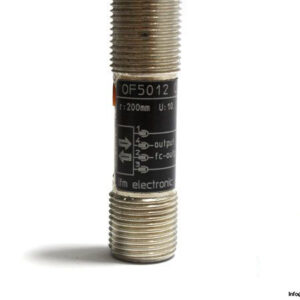

Part No.: 0F5012

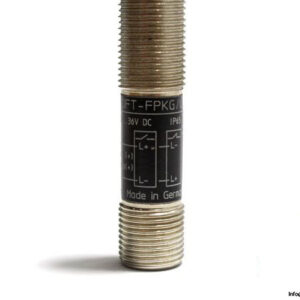

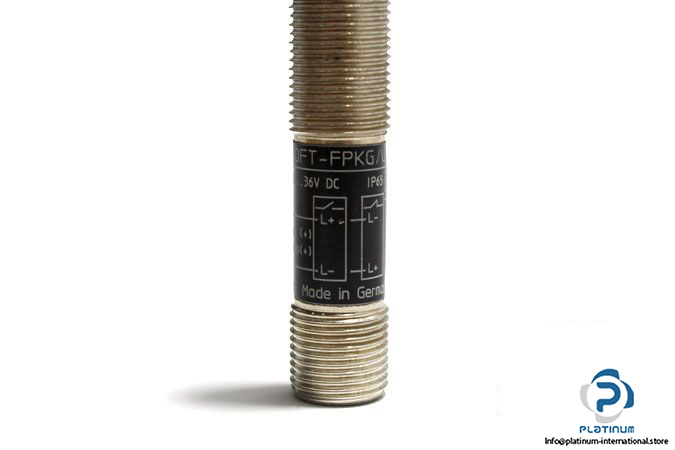

MRN: OFT-FPKG/US

Sensing Range: 200 mm

Operating Voltage: 10 … 36 V DC

Voltage Drop max.: 2.5 V DC

Switching output current: 200 mA DC

Switching frequency: 320 Hz

Electrical Design: PNP

Output Function: Light on/dark on mode

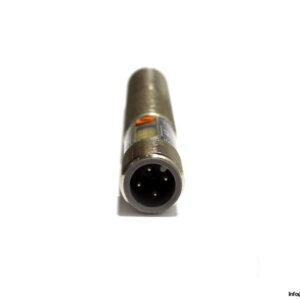

Connector type: M12 Connector, 4 pin

Protection Class: II

Enclosure rating: IP67

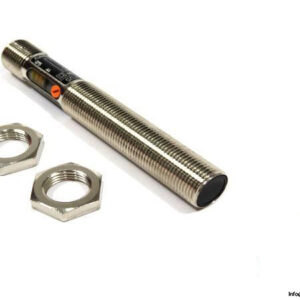

Housing: Threaded type

Ambient Operating temperature: -25 … 60°C

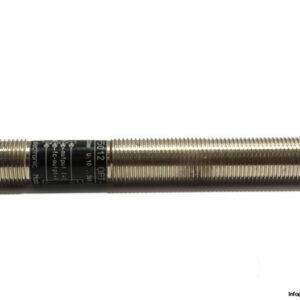

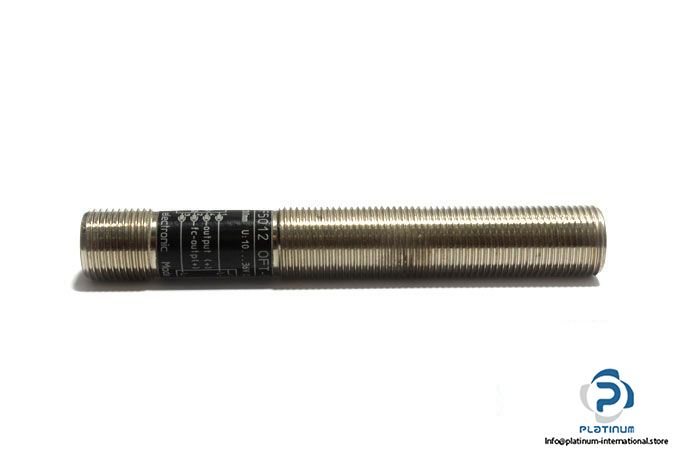

Diameter, Housing length: 12 , 74 mm

Material: Brass nickel-plated

Lens material: PMMANo.: 0F5012

Weight: 15 g
