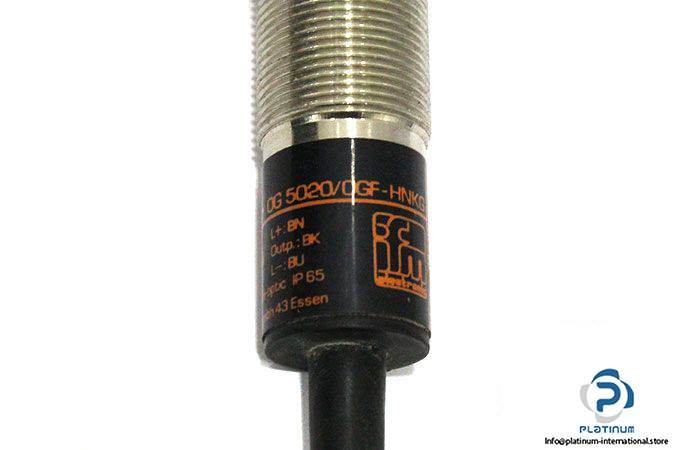

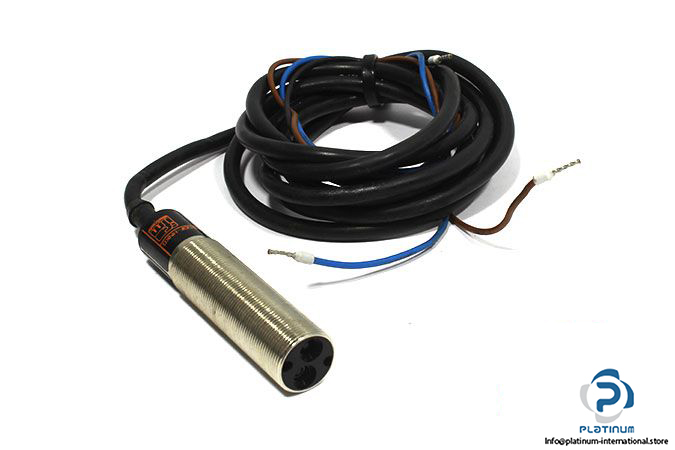

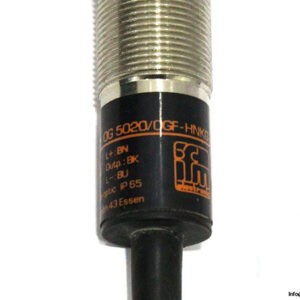

Manufacturer: IFM

Type: Fiber-Optic Amplifier

Part No.: OG5020

MRN: OGF-HNKG

Operating Voltage: 10 … 55 V DC

Voltage Drop Max.: 2.5 V

Current Consumption: < 30 mA
Operating Current: 250 mA

Switching Frequency: 160 Hz

Electrical Design: NPN

Output Function: Light-On Mode

Type of Light: Infrared Light

Wave Length: 880 nm

Housing:  Threaded Type

Protection Class: II

Enclosure Rating: IP65

Electrical Connection: Cable: 2 m, 3 Wire

Diameter, Housing Length: 18, 88 mm

Ambient temperature: -25 … 80 °C

Material: Brass Nickel-Plated

Supplied Accessories: 2 Lock Nuts

Weight: 0.15 kg
