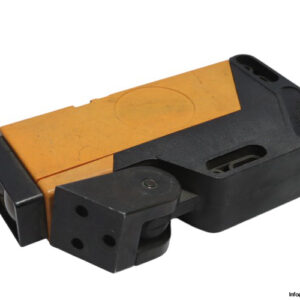

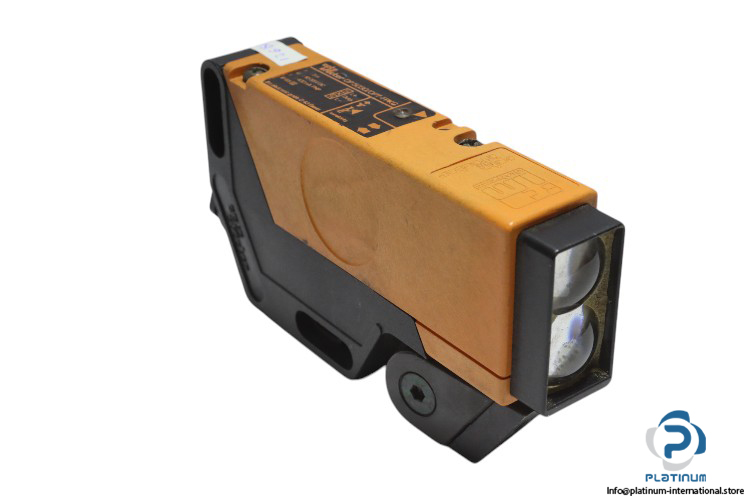

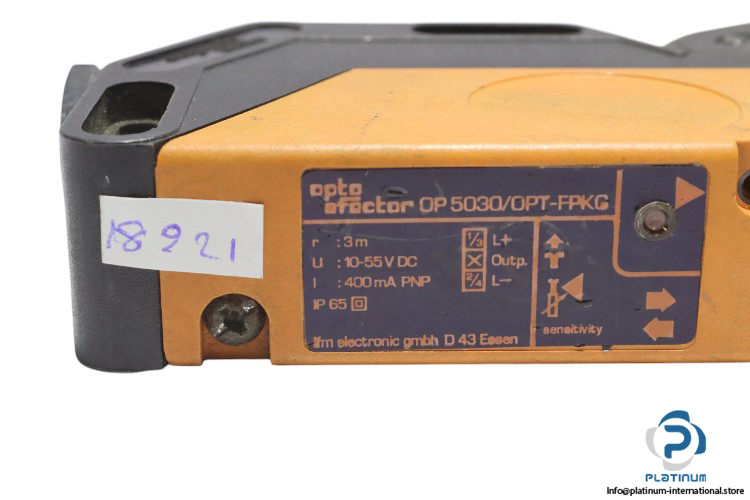

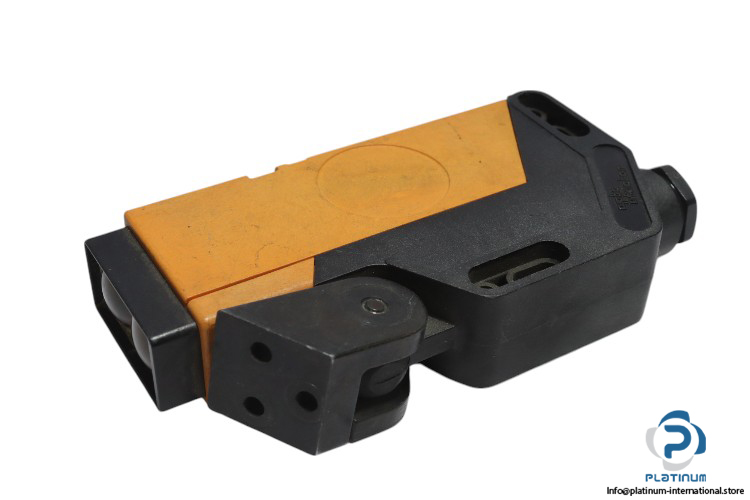

IFM OP 5030 Diffuse Reflection Sensor

The **IFM OP 5030 Diffuse Reflection Sensor** is designed to provide reliable object detection in industrial environments. It offers a **detection zone range** of **up to 3000 mm**, making it suitable for long-range sensing applications. With an **operating voltage range** of **10 to 55 V DC**, this sensor is highly versatile and compatible with various systems. It features a **light-on/dark-on mode** output function, providing flexible control options. The sensor operates with an **infrared light source** at a wavelength of **880 nm**, ensuring accurate detection. With a **maximum voltage drop of 2.5 V DC** on the switching output and a **permanent current rating** of **400 mA**, it ensures dependable performance. The **PPO modified housing** and **glass lens** provide durability, while the **IP65 protection degree** ensures reliable operation in dusty and wet environments. It operates in a **temperature range of -25 to 80°C**, making it suitable for diverse industrial conditions. The sensor is designed for easy installation with a **terminal connection**.

• Manufacturer: IFM
• Type: Diffuse Reflection Sensor
• Model: OP 5030

Technical Information

• Operating Voltage: 10 to 55 V DC
• Current Consumption: 12 mA at 24 V
• Detection Zone Range: 3000 mm
• Output Function: Light-on/dark-on mode
• Max. Voltage Drop Switching Output: 2.5 V DC
• Permanent Current Rating of Switching Output AC: 400 mA
• Type of Light: Infrared light
• Wavelength: 880 nm
• Housing Design: Rectangular
• Housing Material: PPO modified
• Lens Material: Glass
• Connection: Terminal
• Ambient Temperature: -25 to 80°C
• Protection Degree: IP65
• Dimensions: 86 x 28 x 142 mm

The **IFM OP 5030 Diffuse Reflection Sensor** offers long-range and reliable sensing in a compact, durable design, ideal for industrial automation and demanding environments.
