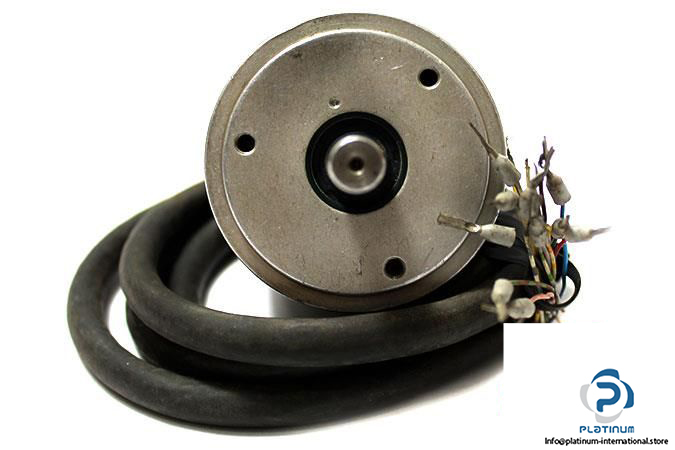

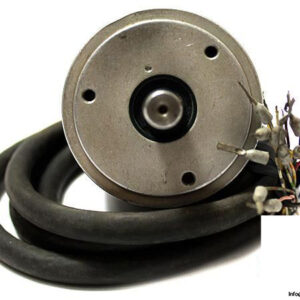

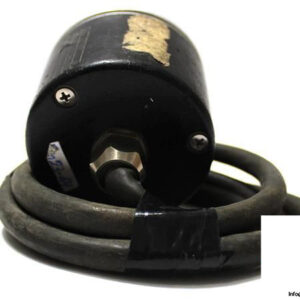

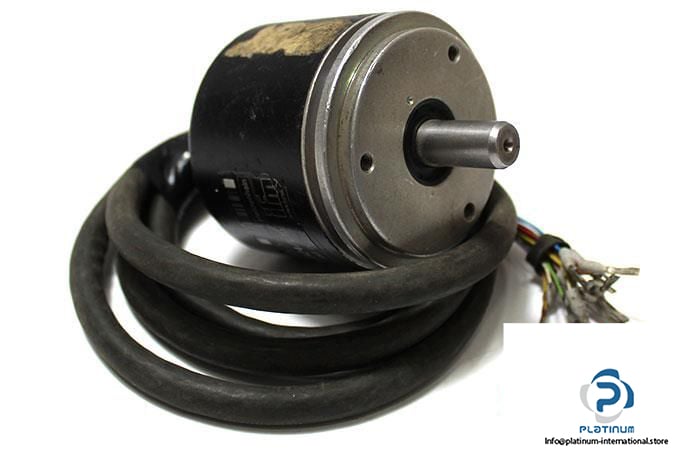

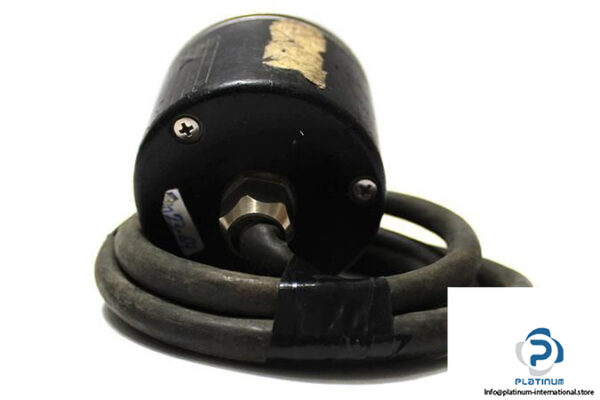

IFM RN-0360-G24/L1B ABSOLUTE ENCODER
The IFM RN-0360-G24/L1B is a high-precision absolute encoder designed for robust industrial environments. With a solid shaft and synchro-flange design, it delivers reliable positioning data with Gray code resolution and HTL electrical design.
Manufacturer: IFM
Type: Absolute Encoder

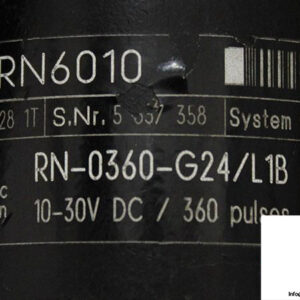

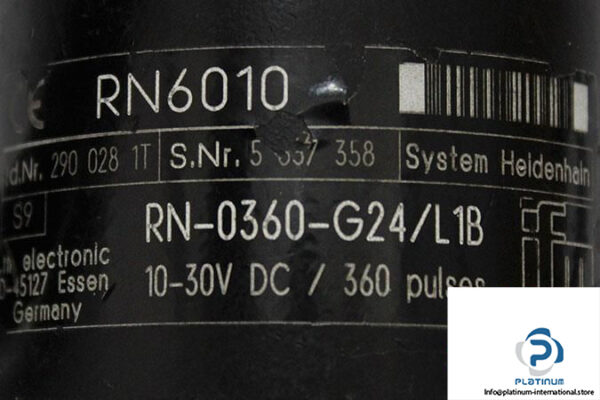

Model: RN-0360-G24/L1B
MNR: RN6010
ID NO: 290 028 1T
Technical Information
- Flange Design: Synchro-flange
- Shaft Design: Solid shaft
- Shaft Diameter: 10 mm
- Resolution: 360 Steps (9 bit)
- Voltage Supply: 10 / 30 VDC
- Electrical Design: HTL (Push Pull)
- Connection Type: Cable (1m), PUR, Axial
- Code: Gray Code
- Protection Class: IP64
- Temperature Range: -20 / 100 °C
