IFM RV6106 INCREMENTAL ENCODER
The IFM RV6106 is a high-resolution incremental encoder engineered for reliable signal output and precision positioning. Built for robust industrial environments, it combines a solid shaft design with durable IP64 protection and HTL electrical design, making it ideal for automation systems and motion control applications.
Manufacturer: ifm
Type: Incremental Encoder

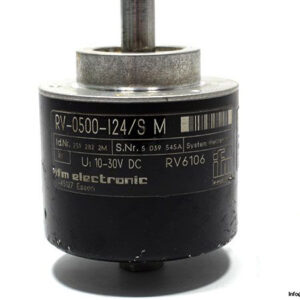

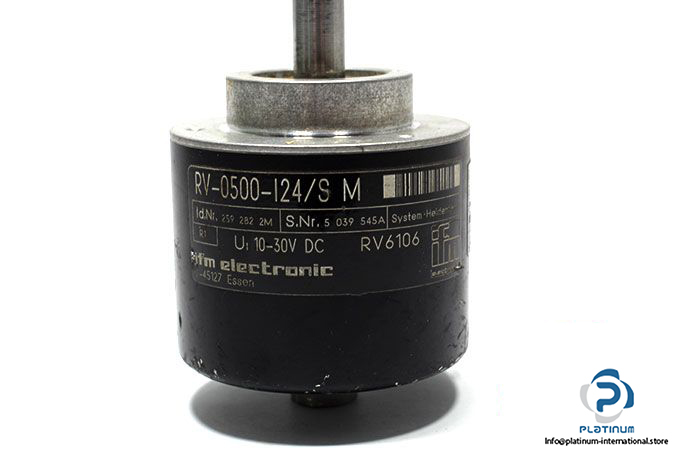

Model: RV6106
MRN: RV-0500-I24/S M
ID No.: 259 282 2M
S No.: 5 039 545A
Technical Information

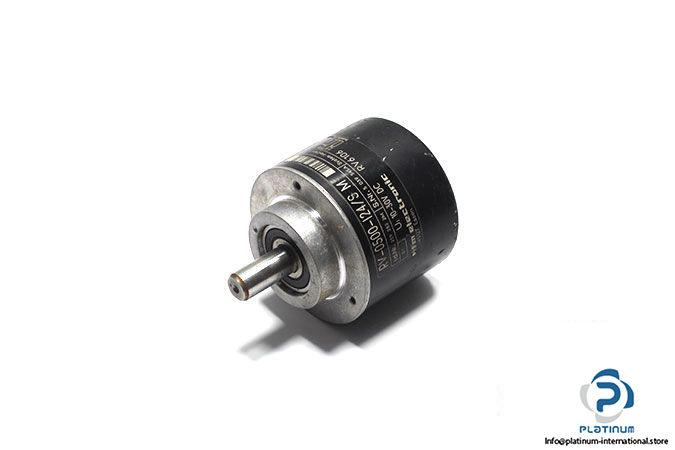

- Shaft Design: Solid Shaft
- Resolution: 500 Resolution
- Operating Voltage: 10 / 30 V DC
- Current Consumption: 150 mA
- Electrical Design: HTL
- Switching Frequency: 300 kHz
- Ambient Temperature: -40 / 100 °C

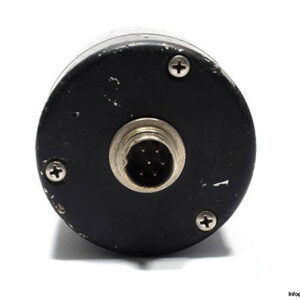

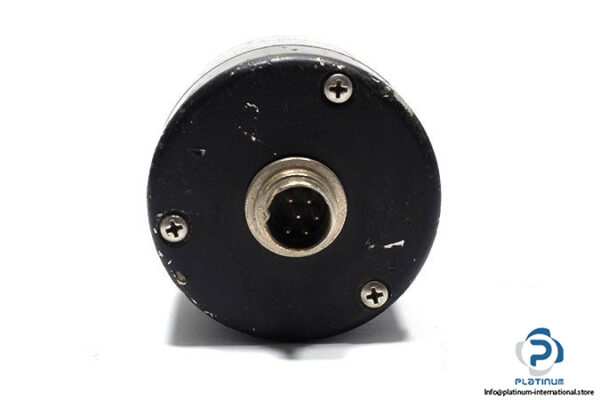

- Output Connection: 6-pin (Connector: ifm 1013.1, axial)
- Shaft Size: 10 mm
- Dimensions: Diameter 58 mm / Length 82.5 mm
- Protection Rating: IP64
