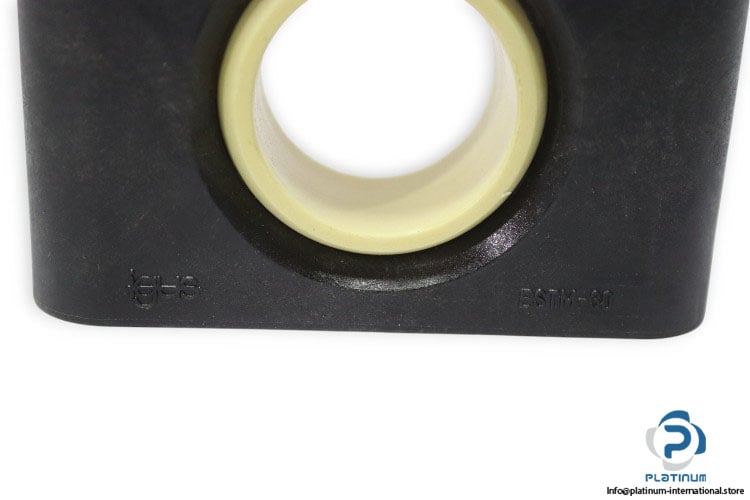

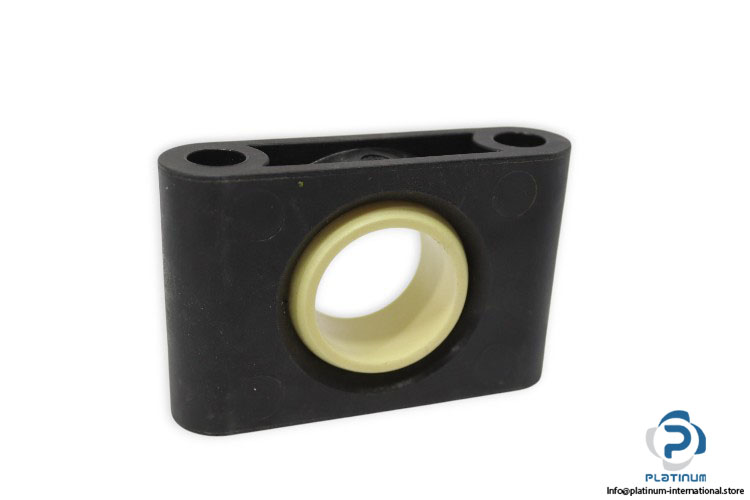

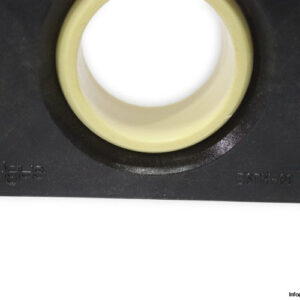

Igus ESTM30 Pillow Block Bearing

The Igus ESTM30 is a high-performance pillow block bearing designed for precise alignment and long-lasting operation in mechanical and industrial systems.

Manufacturer: Igus
Type: Pillow Block Bearing
Model: ESTM30

Technical Information

• Shaft Diameter: 30 mm
• Overall Length: 86 mm
• Overall Height: 56 mm
• Overall Width B: 22 mm
• Max. Pivot Angle: 20°
• Maximum Tightening Torque, Fastening: 10.5 Nm
• Max. Radial Static Pressure Load, Short-Term: 16500 N
• Max. Radial Static Pressure Load, Long-Term: 8250 N
• Max. Static Radial Tensile Stress, Short-Term: 10000 N
• Max. Static Radial Tensile Stress, Long-Term: 5000 N
• Max. Axial Static Load, Short-Term: 2500 N
• Max. Axial Static Load, Long-Term: 1250 N
• Material Housing: igumid G

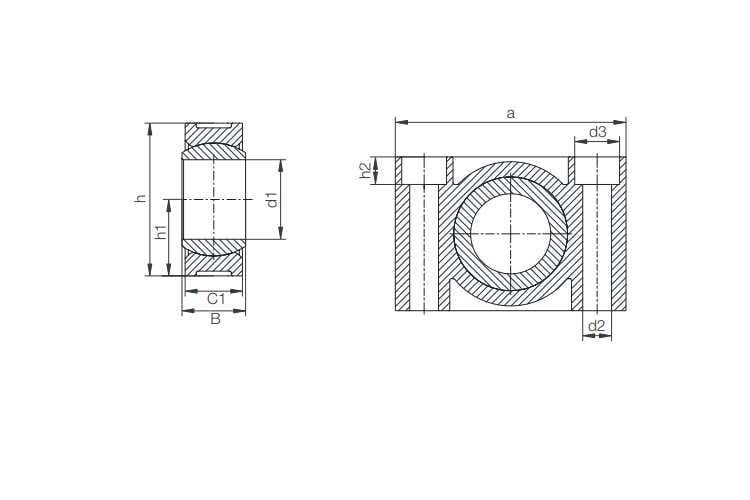

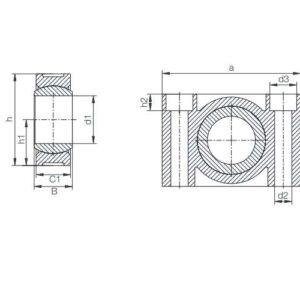

• R1: 11 mm
• C1: 22 mm
• h1: 28 mm
• h2: 10.6 mm

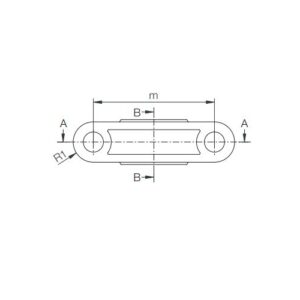

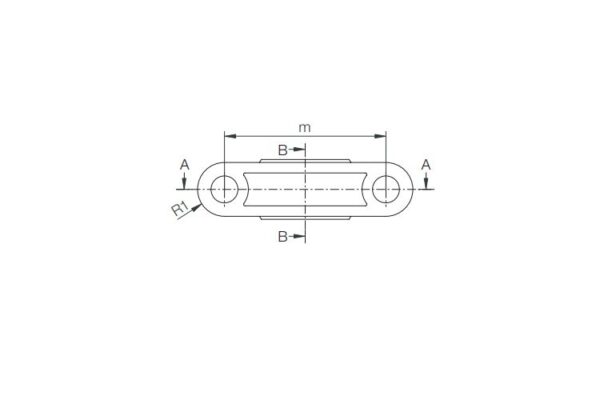

• m: 64 mm
