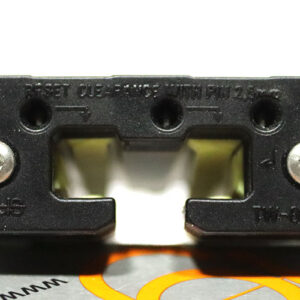

Manufacturer: IGUS
Type: LINEAR GUIDE CARRIAGE
Model: TW 01 15

Size: 15

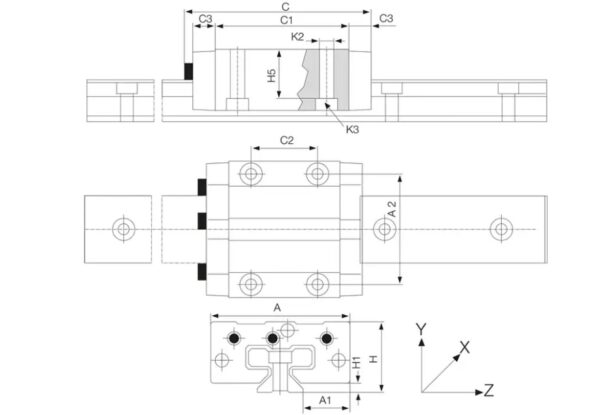

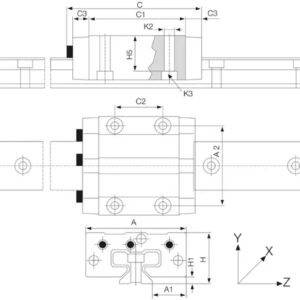

Dimensions
Total Height H: 24 mm
Block Height(H-H1): 20 mm
Block Width A: 47 mm
Block Length(C1+C3*2): 68 mm
Block Length Total C: 74 mm
C₁: 50 mm
A₂: 38 mm
C₂: 30 mm
Thread K2: M5
Thread K3: M4
Mounting Hole: 4 tapped holes
Torque Max.: 1.5 Nm
Static load capacity Coy: 4000 N
