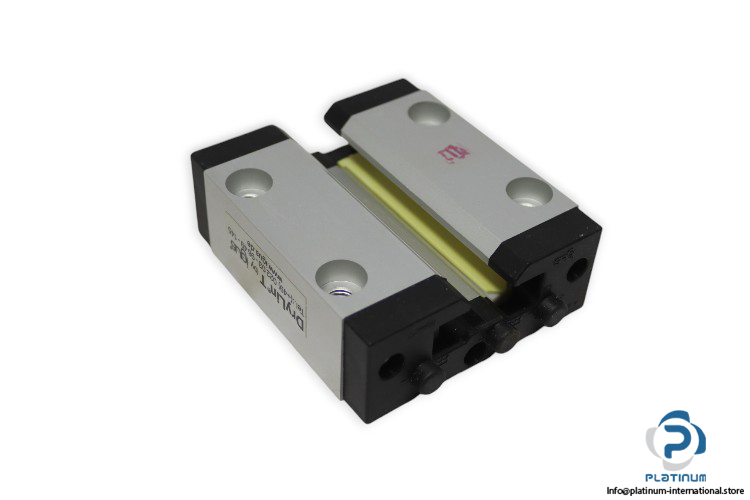

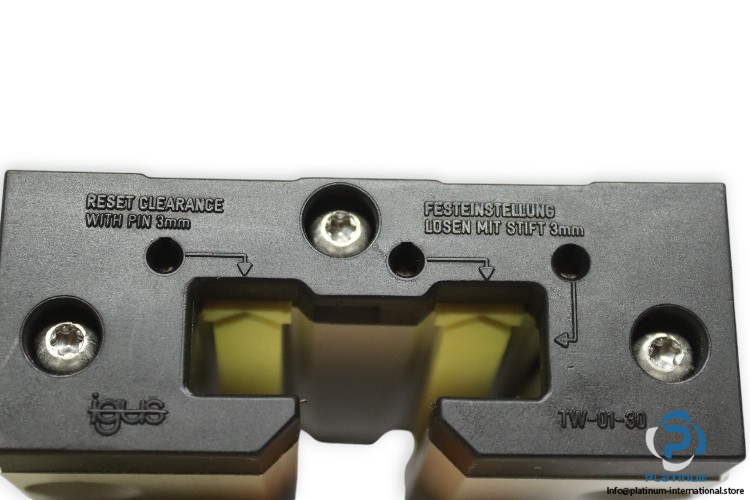

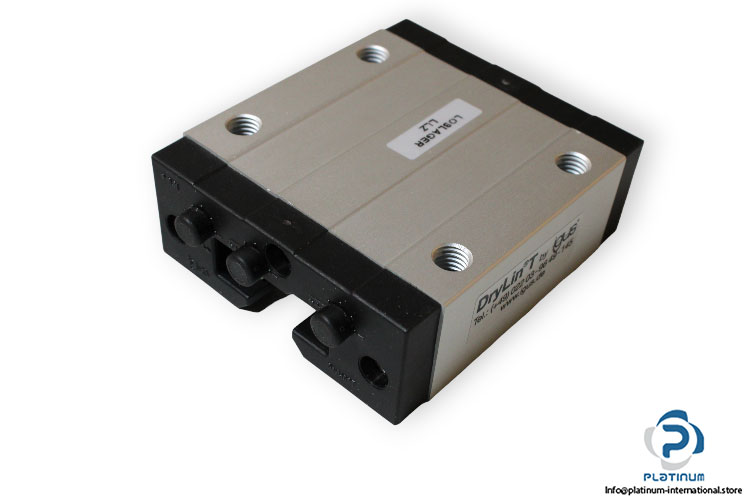

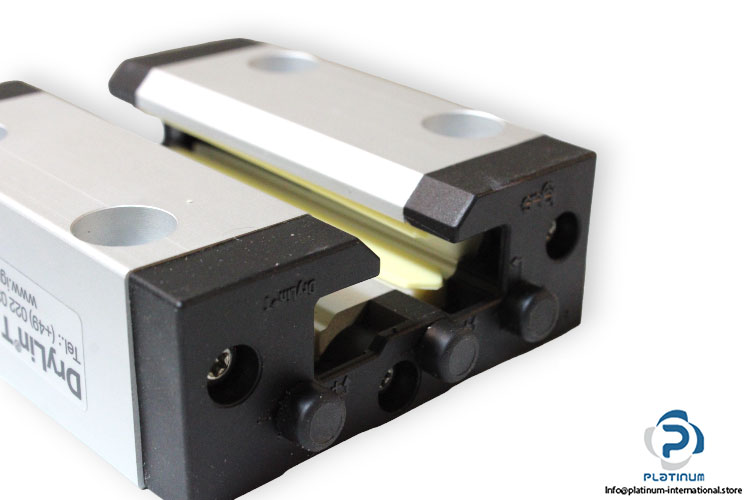

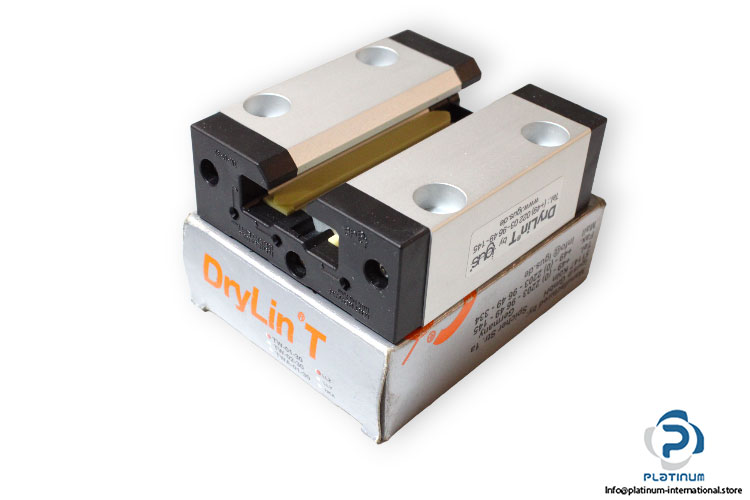

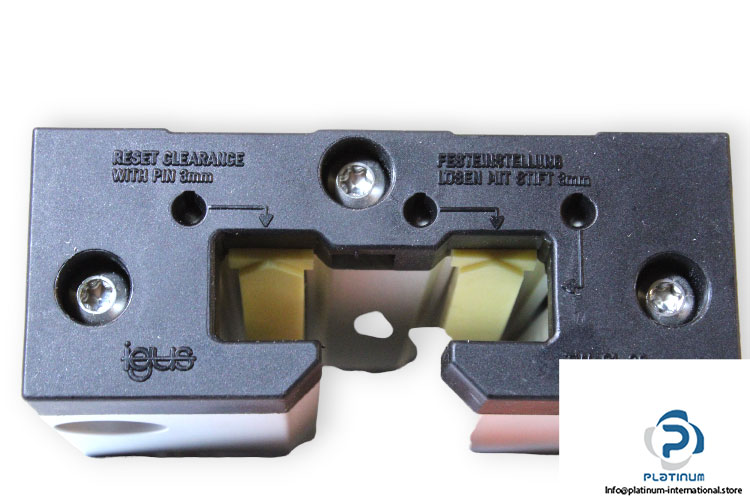

IGUS TW-01-30-LLZ LINEAR GUIDE CARRIAGE

Name: IGUS TW-01-30-LLZ LINEAR GUIDE CARRIAGE
SKU: 1057103
Availability: InStock

Manufacturer: IGUS
Type: LINEAR GUIDE CARRIAGE WITH FLOATING BEARING IN Z-DIRECTION
Model: TW 01 30 LLZ

SKU: 1057103 Category: Other Linear Bearings Tags: 30, bearing, carriage, Guide, Guideway, IGUS, linear, Motion, TW

Add to quote

Manufacturer: IGUS
Type: LINEAR GUIDE CARRIAGE WITH FLOATING BEARING IN Z-DIRECTION
Model: TW 01 30 LLZ

Size: 30

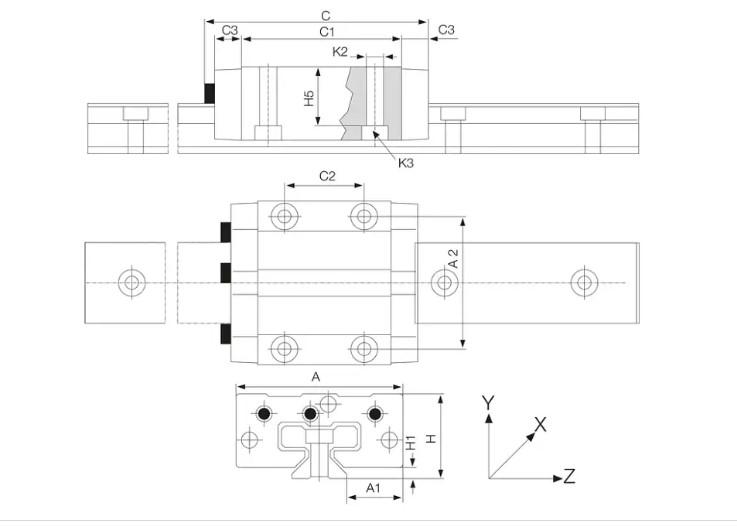

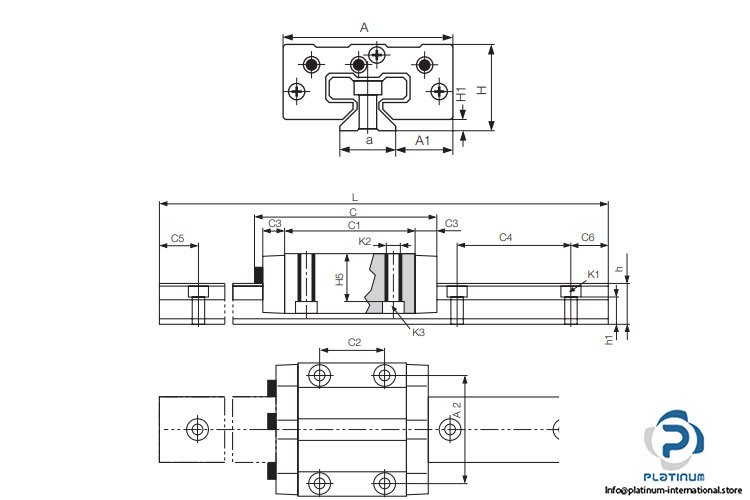

Dimensions
Total Height H: 42 mm
Block Height(H-H1): 35.5 mm
Block Width A: 90 mm
Block Length(C1+C3*2): 103 mm
Block Length Total C: 109 mm
C₁: 79 mm
A₂: 72 mm
C₂: 52 mm
Thread K2: M10
Thread K3: M8
Mounting Hole: 4 tapped holes
Torque Max.: 15 Nm
Static load capacity Coy: 14000 N

Weight	0,53 kg
Condition	New
Model	TW-01-30-LLZ
Manufacturer	IGUS
Type of Product	LINEAR GUIDE CARRIAGE
Shelf No.	241131
