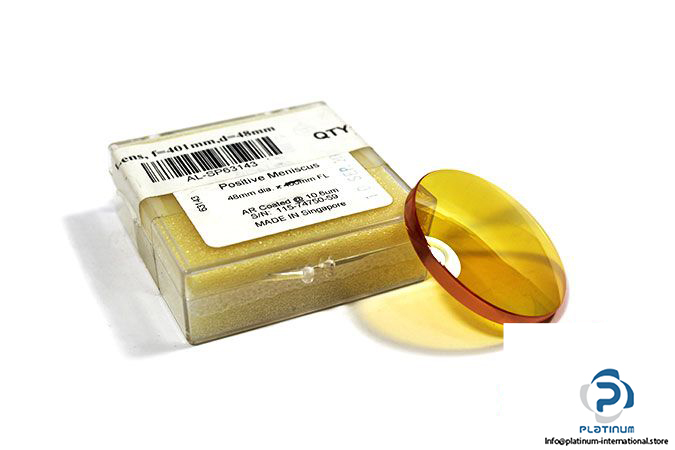

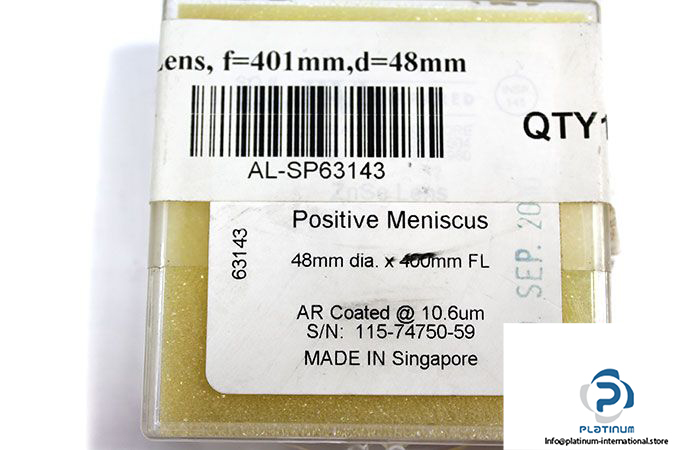

Manufacturer: II-VI INFRARED
Type: FOCUSING LENS
Part No.: SL1-10.6-43-145-400-U
Videojet Part No.: AL-SP63143
Features:
- precision optical elements
- via hole drilling diameters from 75 to 300 μm
- low loss AR coatings
- special housing designs to optimize performance
- wavelength options from 9.2 to 10.6 μm
Application:
- engraving
- rapid prototyping
- drilling circuit board via holes
- cutting cloth
- cutting paper
- marking
lens material: ZnSe
Lens Diameter: 48 mm
focal length: 400 mm
working distance: 420 mm
