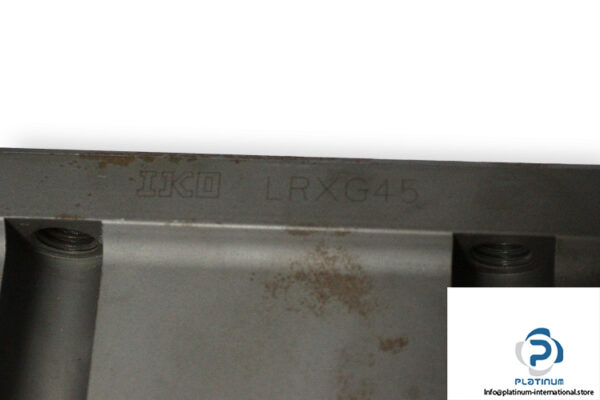

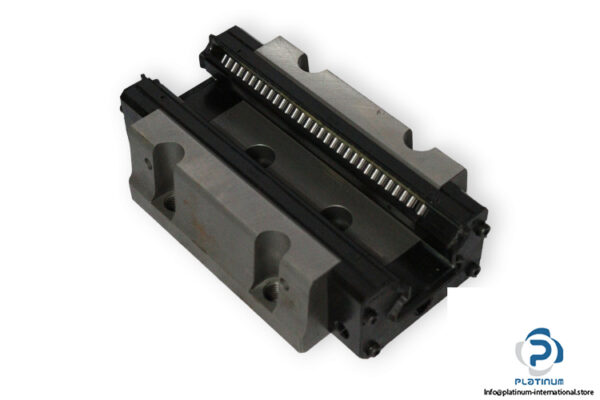

Manufacturer: IKO
Type: Linear Roller Way Super X
Model: LRXG 45

Size: 45 mm
Basic Load Ratings:
Dynamic C: 124000 N
Static C0: 223000 N
Block Type: Flange type
Block Mounting Type: from top/bottom

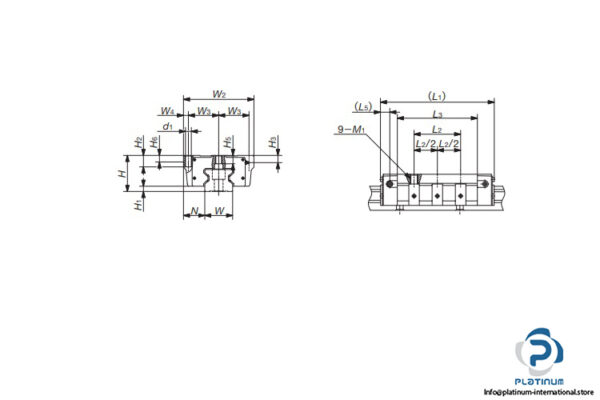

Dimensions
Block Length L1: 194 mm
Block Width W2: 120 mm
System Height H: 60 mm
Block Height: 52 mm
W3: 50 mm
L2: 80 mm
L3: 139 mm
N: 37.5 mm
Mounting bolt for track rail: M12×40
