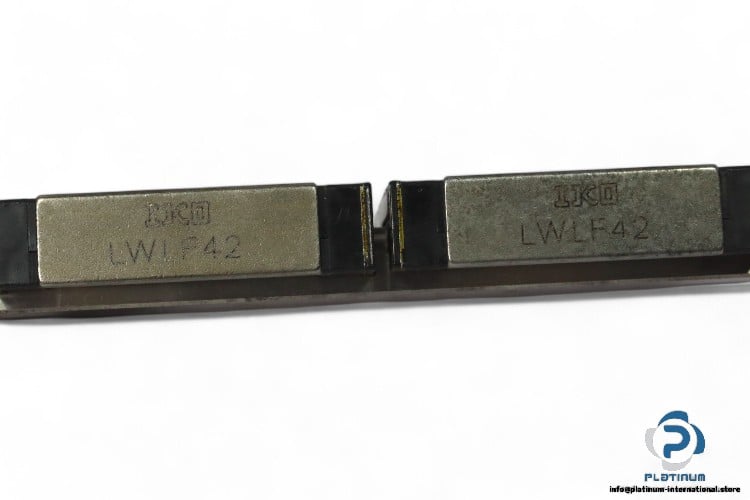

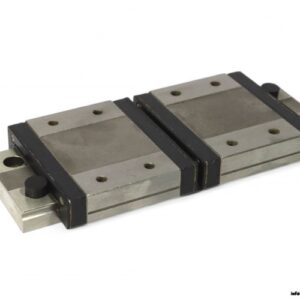

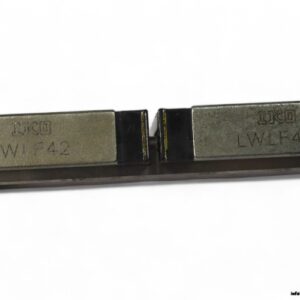

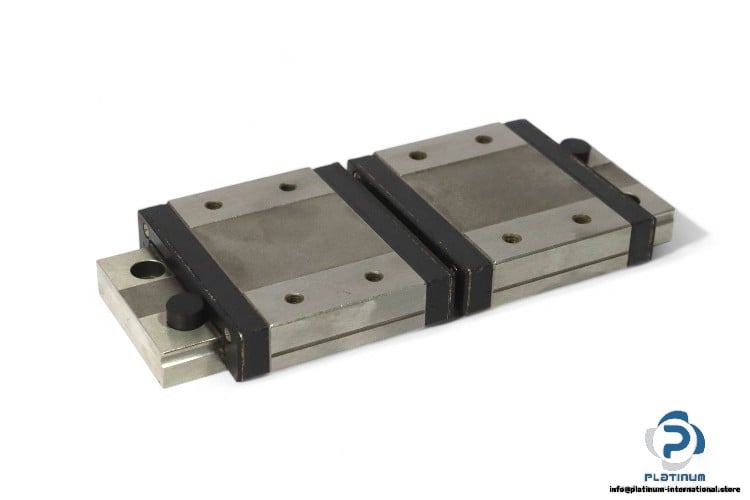

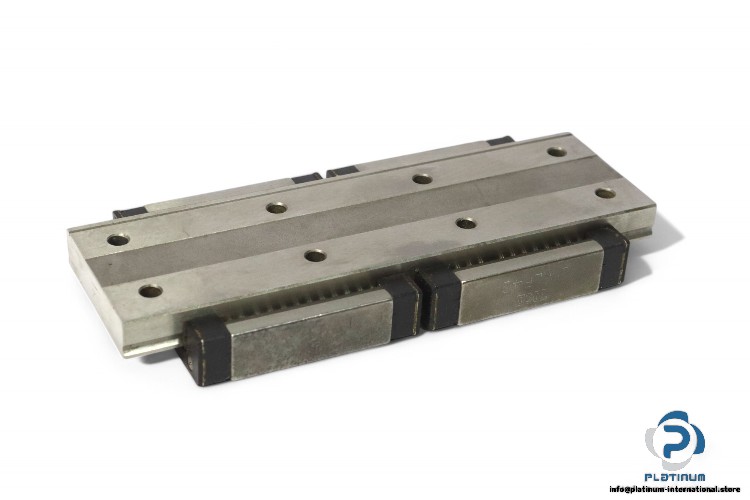

Manufacturer: IKO
Type: LINEAR GUIDEWAY BLOCK
Model: LWLF 42

Size: 42

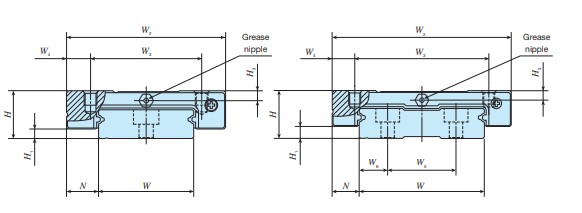

Dimensions
Total Height H: 16 mm
Block Width W₂: 60 mm
Block Length L₁: 55 mm
Block height(H-H1): 12 mm
W₃: 45 mm
L₂: 20 mm
Rail width: 42 mm
Basic Load Ratings:
Dynamic C: 7050 N
Static C₀: 9840 N
Block Type: Standard Type
Material type: Stainless steel made
Structure: Ball Non-Retained Type
Item per set: 2
