ILC DPM-5 PROGRESSIVE LUBRICATION

Progressive Lubrication

The ILC DPM 5 Progressive Lubrication system features 5 pistons, 15-250 bar pressure range, and a wide temperature range. Includes ILC 49.050.0 micro switch with IP65 protection for enhanced reliability in lubrication applications.

SKU: 1074241 Category: Tags: , , , , , , , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

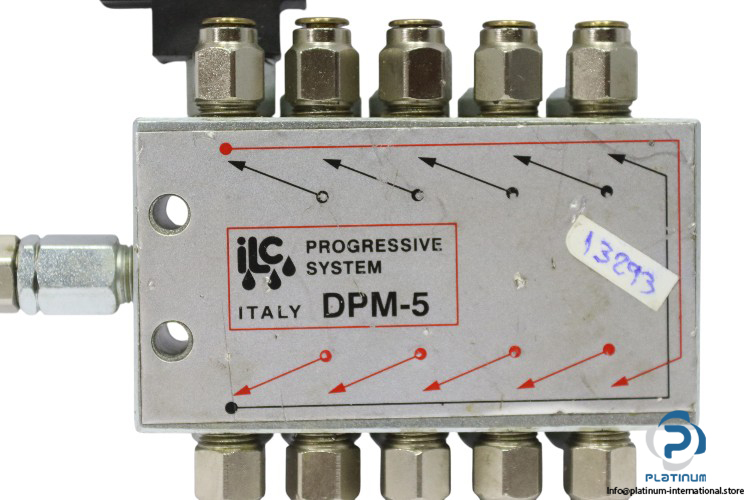

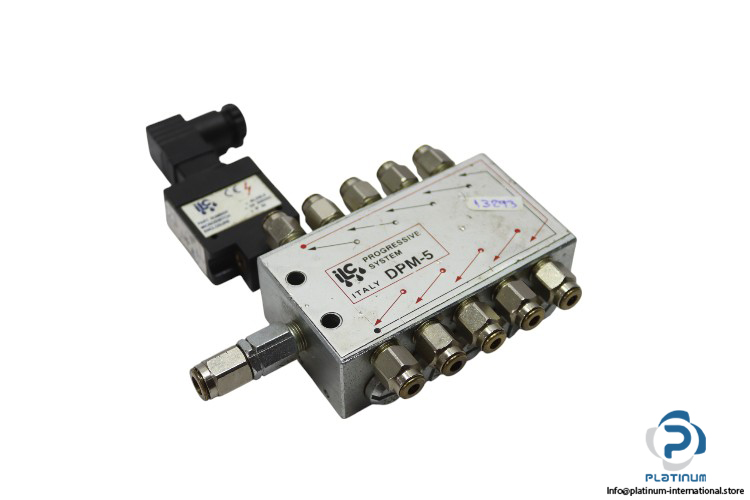

ILC DPM 5 Progressive Lubrication

The ILC DPM 5 is a highly efficient progressive lubrication system designed for industrial applications. With 5 pistons and an operating pressure range of 15 to 250 bar, it is suitable for a variety of lubrication tasks. The system supports both oils and greases, providing versatile lubrication capabilities for machinery and equipment.

Manufacturer: ILC

Type: Progressive Lubrication

Model: DPM 5

Technical Data:

  • Lubricants: Min. Oils 15 Cst “ Max. Grease Nlgi 2
  • Number of Pistons: 5
  • Operating Pressure: 15 / 250 Bar
  • Operating Temperature: -20 / +100°C
  • Divider Material: Galvanised Steel
  • Inlet Port Size: G1/8

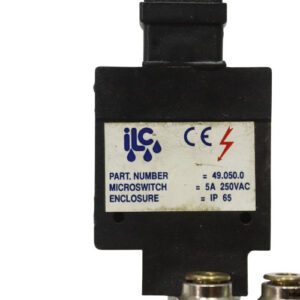

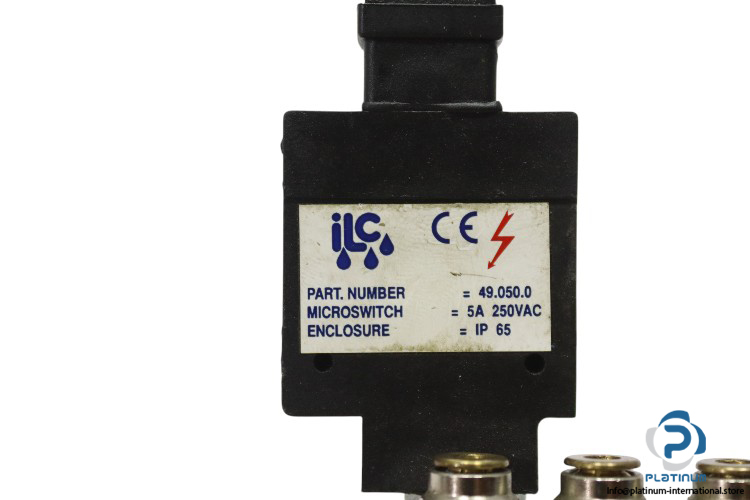

Attached Micro Switch:

  • Part No.: ILC 49.050.0
  • Voltage: 250 VAC
  • Current: 5A
  • Protection Class: IP65
Weight1,1 kg
