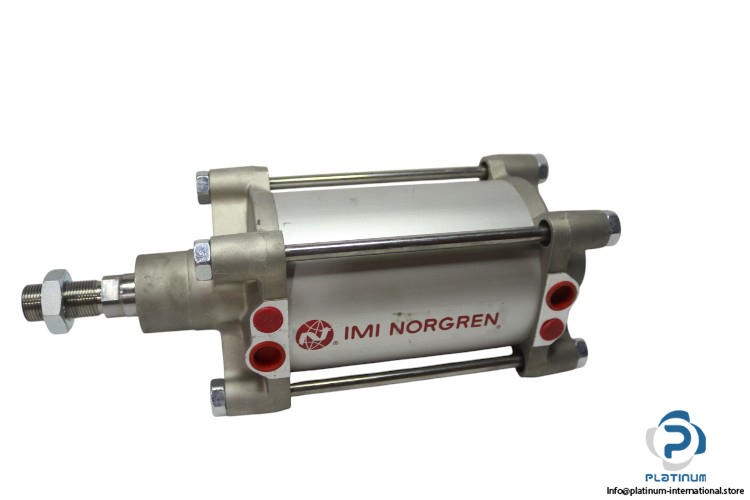

IMI NORGREN RA802125M125 ISO LINE DOUBLE ACTING CYLINDER

This robust tie-rod double acting pneumatic cylinder from IMI Norgren is designed to deliver reliable linear motion in demanding industrial environments.

Manufacturer: IMI Norgren
Type: ISO Line Tie-Rod Double Acting Cylinder

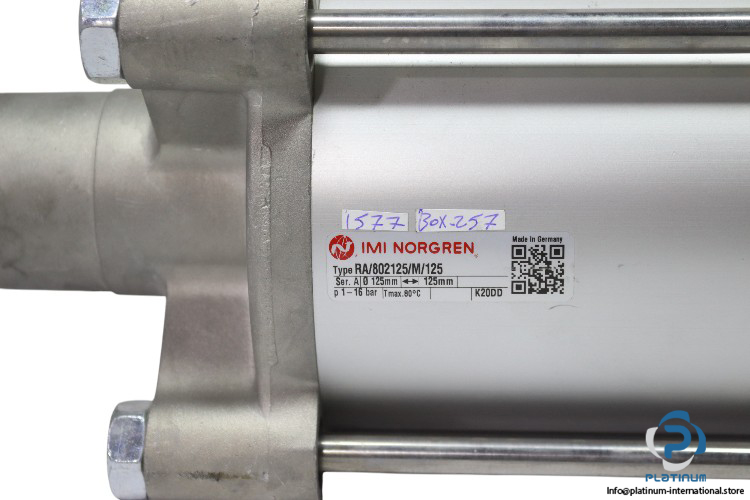

Model: RA802125M125
Ref. No.: K20DD

Technical Information

• Media: Compressed air, filtered, lubricated or non-lubricated
• Bore Diameter: 125 mm
• Stroke: 125 mm
• Bore x Stroke: 125 x 125 mm
• Rod Diameter: 32 mm
• Frame Dimensions: 138 x 300 mm
• Pneumatic Connection: G 1/2
• Pressure Max.: 1 to 16 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
• Ambient Temperature Max.: 80°C

Materials

• Barrel: Anodized aluminum
• End Covers: Pressure diecast aluminum (200 to 320 mm gravity cast aluminum)
• Piston Rod: Stainless steel
• Piston Rod Seals: PUR
