Manufacturer: IMO

Type: Slew Drive

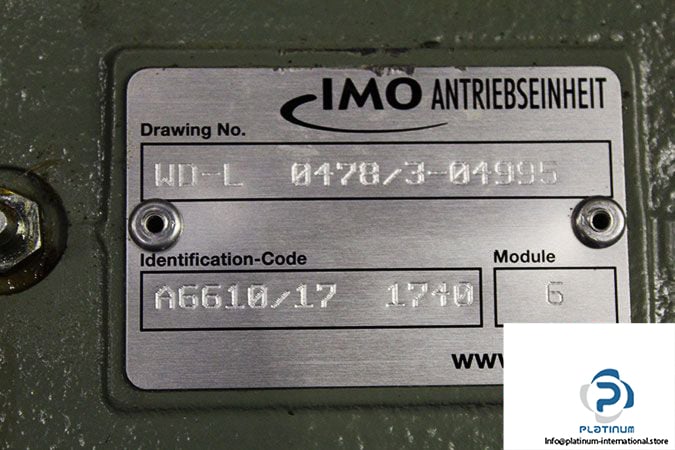

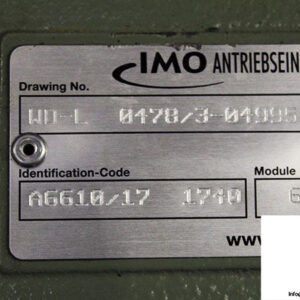

Model: WD-L 0478/3-04995

Identification-Code: A6610/17 1740

Uses: Man lift platforms, steering gears for undercarriages of cranes and heavy-duty vehicles, loading cranes, turntables, forklift rotators, mining equipment, robotic arms, welders, mixers and more.

Module: 6

Gear ratio: i = 93

Version: Single Row Slewing Ring

Type of gearing: Hardened

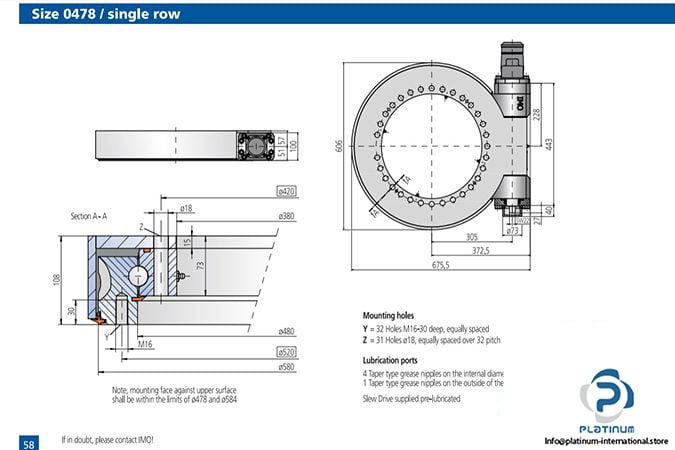

Race way diameter: 478 mm

Operation torque: max. 24288 Nm

Static load rating: kN 675 radial, 1808 kN axial

Weight: 130 kg
