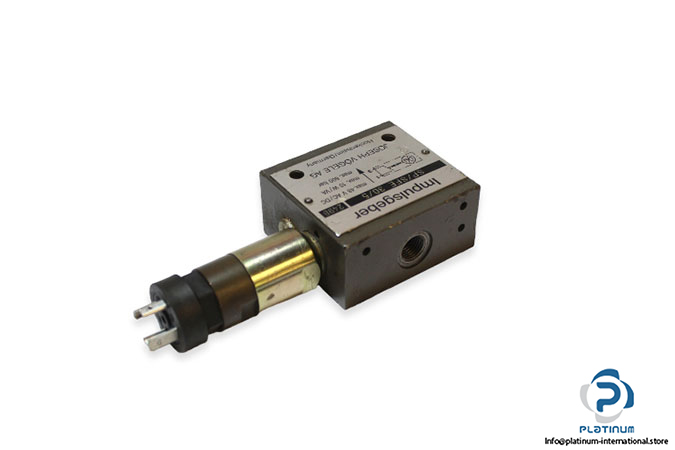

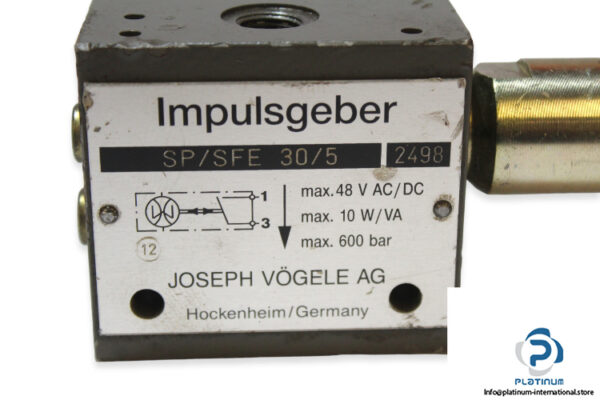

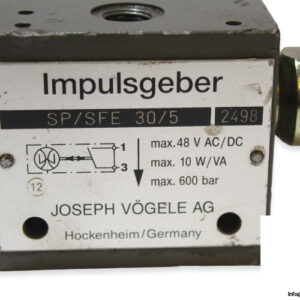

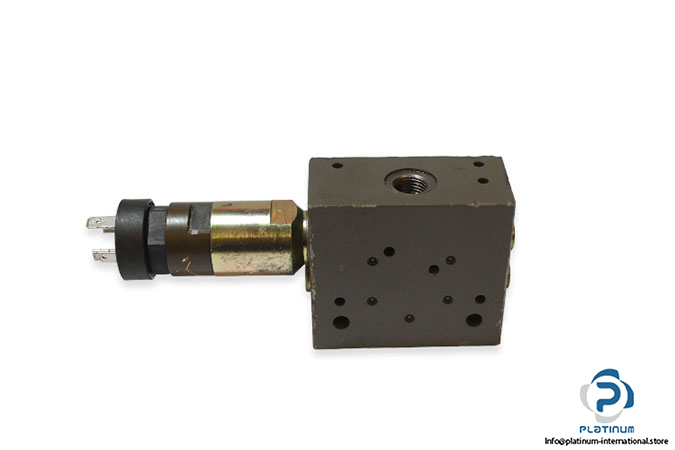

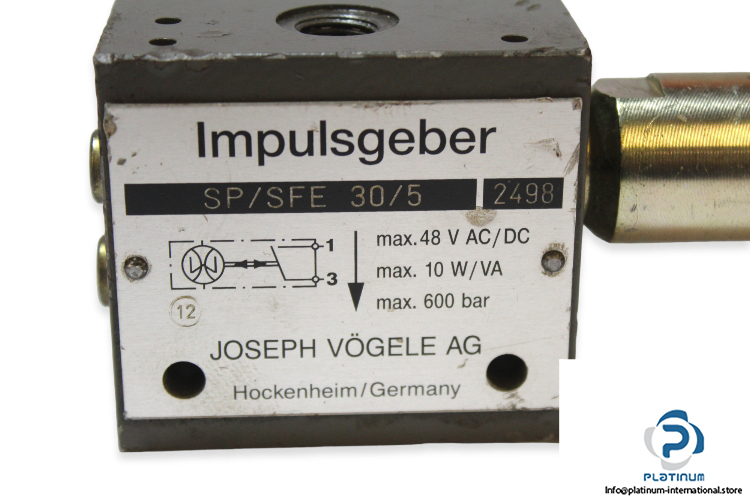

VOGEL SP/SFE 30/5 IMPULSE GENERATOR
The Vogel SP/SFE 30/5 is a high-performance impulse generator engineered for use in progressive and multi-line lubrication systems. Designed to operate reliably under extreme industrial conditions, it offers precise switching, high pressure tolerance, and robust sealing for demanding lubrication control applications.
Manufacturer: Vogel
Type: Impulse Generator
Model: SP/SFE 30/5
Part No.: 2498
Technical Information
- For Use: Progressive or multi-line lubrication systems
- Flow Rate: 0.1 to 50 cm³/min
- Operating Pressure: 600 bar
- Operating Temperature: -15 to +70¯°C
- Cable Diameter: 12 mm
- Protection Class: IP65
- Connection Cross-Section: 1.5 mm²
- Switching Power: 10 W/VA
- Switching Voltage: 48 V AC/DC
- Switching Current: 416 mA at 24 V, 208 mA at 48 V
- Dimensions: 65 × 170 × 35 mm
- Lubricant: Oil (min. viscosity 12 mm²/s), Grease (NLGI 1)
