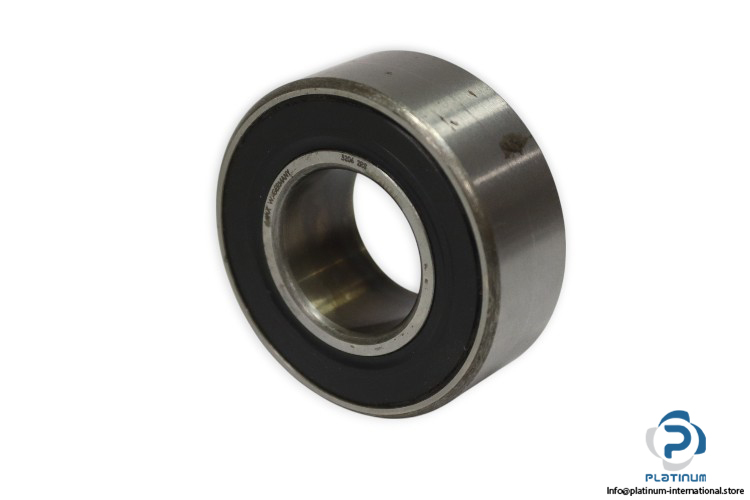

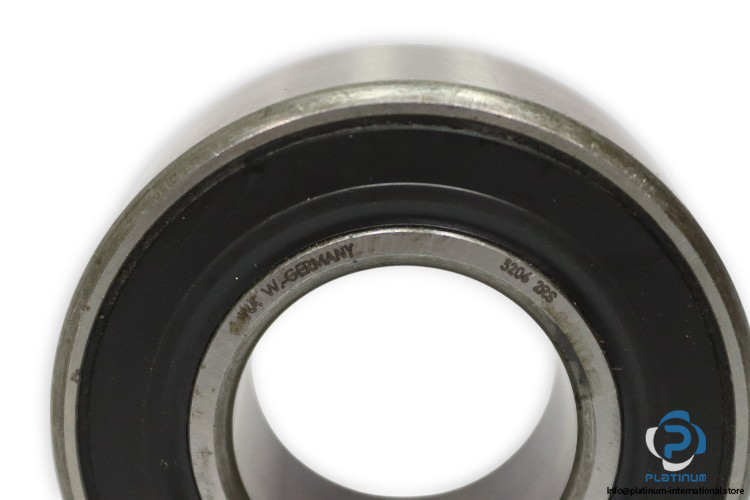

INA 3206 2RS ANGULAR CONTACT BALL BEARING

The INA 3206 2RS Angular Contact Ball Bearing is engineered for applications requiring high load capacity and precise axial and radial performance. With dual seals and a 30° contact angle, it ensures reliable operation and extended service life.

Manufacturer: INA
Type: Angular Contact Ball Bearing
Model: 3206 2RS

Technical Information

• Bore Diameter (d): 30 mm
• Outer Diameter (D): 62 mm
• Width (B): 23.8 mm
• Contact Angle: 30°
• Dynamic Cr: 31,000 N
• Static C0r: 22,200 N
• Fatigue Load Limit: 1,540 N
• Limiting Speed: 9,000 1/min
• Seal: 2RS (sealed on both sides)
