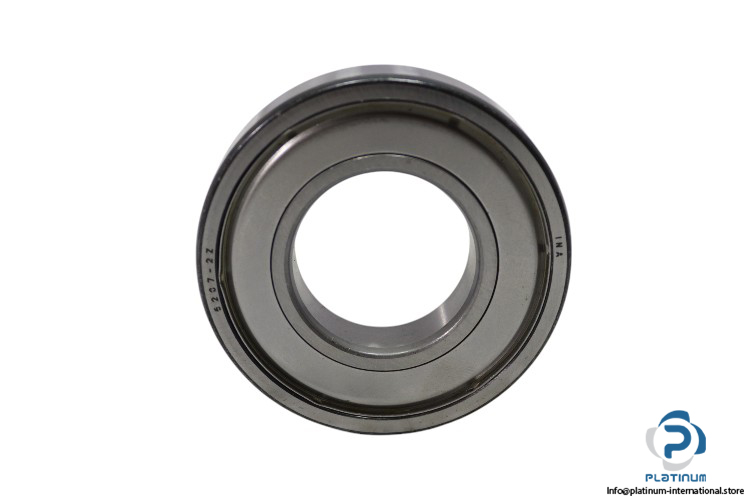

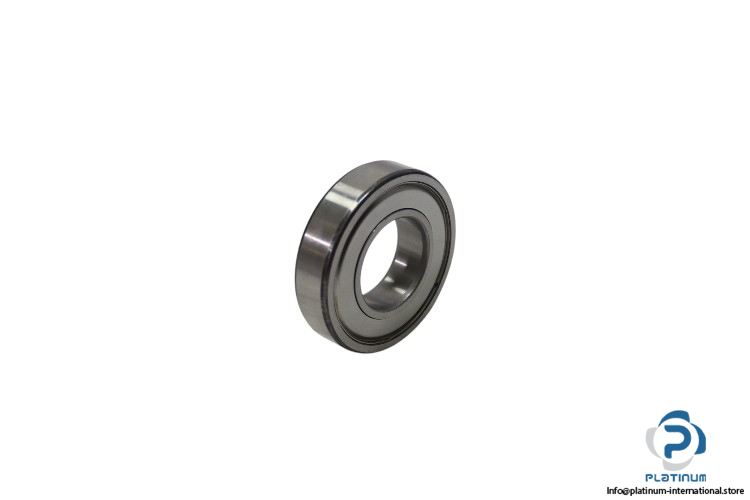

INA 6207-2Z Deep Groove Ball Bearing
The INA 6207-2Z deep groove ball bearing is a high-quality, versatile component suitable for high-speed applications and radial load handling. With steel sheet metal cage and 2Z shielding on both sides, it offers durability, reduced maintenance, and enhanced protection from contaminants.
Manufacturer: INA
Type: Deep Groove Ball Bearing
Model: 6207-2Z
Technical Information:
- Bore Diameter (d): 35 mm
- Outer Diameter (D): 72 mm
- Bearing Width (B): 17 mm
- Basic Dynamic Load Rating (Radial): 27,500 N
- Basic Static Load Rating (Radial): 15,300 N
- Fatigue Load Limit (Radial): 950 N
- Limiting Speed: 11,700 1/min
- Reference Speed: 10,400 1/min
- Cage Material: Steel Sheet Metal
- Sealing: 2Z (Shielded on Both Sides)
