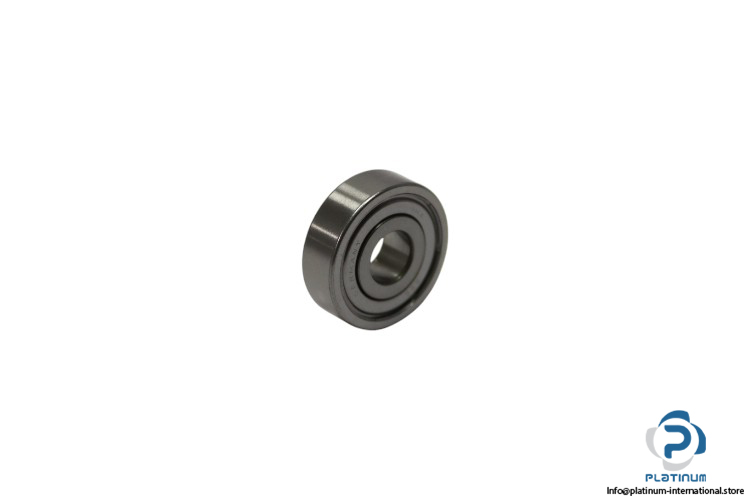

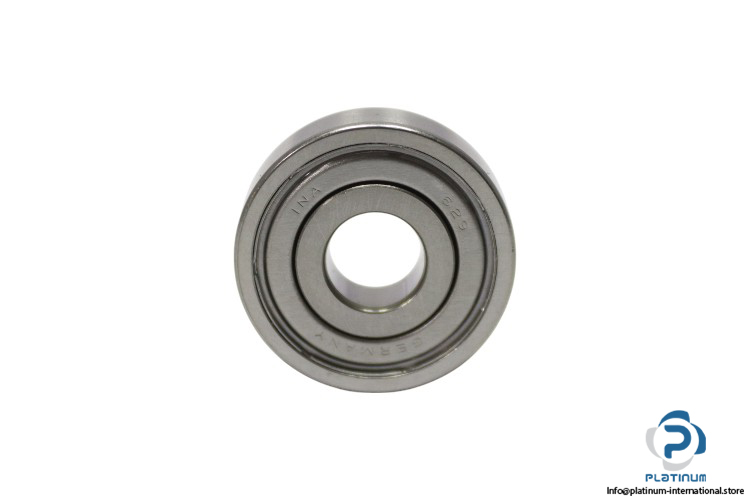

INA 629 2Z Deep Groove Ball Bearing
The INA 629 2Z is a high-precision deep groove ball bearing designed for high-speed and low-friction performance. Equipped with 2Z non-contact shields on both sides and a durable steel sheet metal cage, it is ideal for a wide range of industrial and mechanical applications requiring compact and efficient support.
Manufacturer: INA
Type: Deep Groove Ball Bearing
Model: 629 2Z
Technical Information:
- Bore Diameter (d): 9 mm
- Outer Diameter (D): 26 mm
- Width (B): 8 mm
- Dynamic Load Rating (Cr): 5,300 N
- Static Load Rating (C0r): 1,970 N
- Fatigue Load Limit: 136 N
- Limiting Speed: 38,000 1/min
- Reference Speed: 27,000 1/min
- Seal Type: 2Z (Non-contact shields on both sides)
- Cage Material: Steel Sheet Metal
