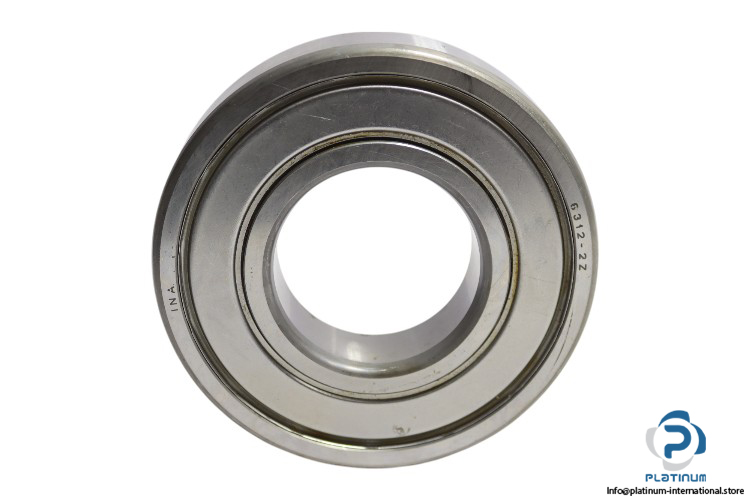

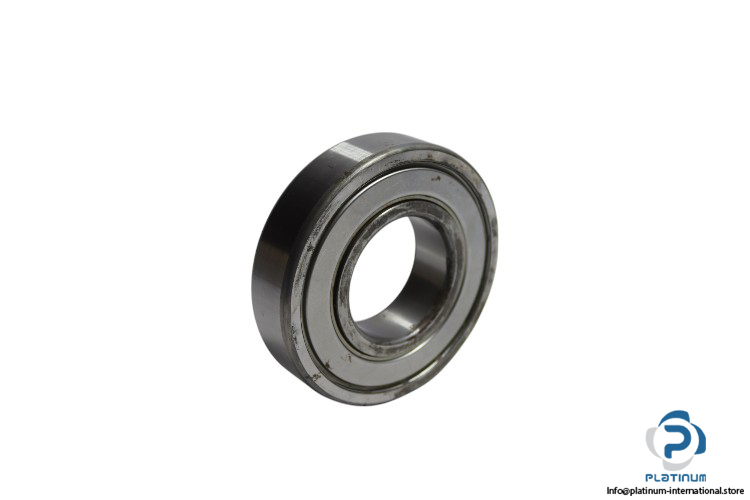

INA 6312-2Z Deep Groove Ball Bearing

The INA 6312-2Z Deep Groove Ball Bearing is designed for high performance and durability in demanding applications. Equipped with 2Z non-contact shields on both sides, it offers reliable protection from contaminants while maintaining low friction operation at high speeds.

Manufacturer: INA

Type: Deep Groove Ball Bearing

Model: 6312-2Z

Technical Information:

• Bore Diameter (d): 60 mm
• Outer Diameter (D): 130 mm
• Width (B): 31 mm
• Dynamic Load Rating (Cr): 89,000 N
• Static Load Rating (C0r): 52,000 N
• Fatigue Load Limit: 3,600 N
• Limiting Speed: 6,700 rpm
• Reference Speed: 6,700 rpm
• Seal Type: 2Z, Non-Contact Shield on Both Sides
