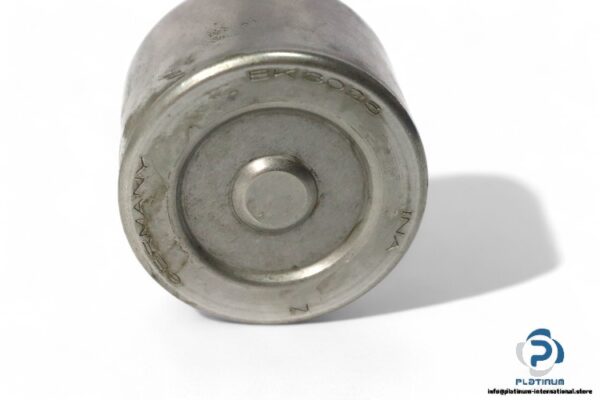

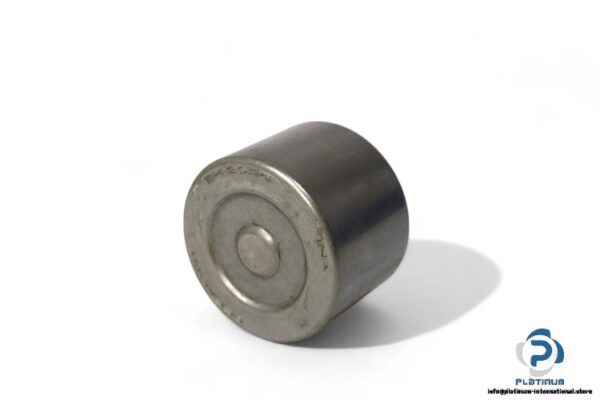

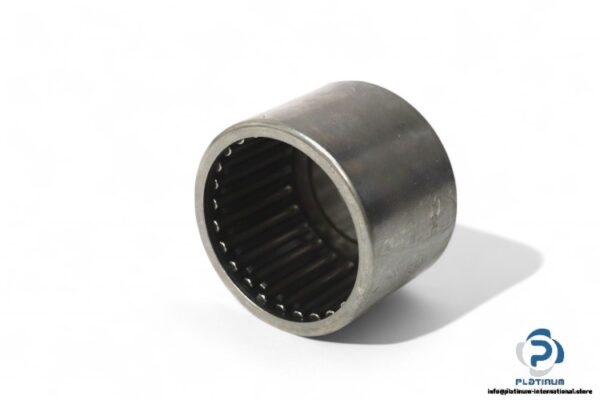

Drawn Cup Needle Roller Bearing (Model: BK-3026)
Manufacturer: INA
Type: Drawn Cup Needle Roller Bearing
Model: BK-3026
The INA Drawn Cup Needle Roller Bearing (Model: BK-3026) is designed for use in high-load applications. It is optimized for applications requiring compact and high-performance bearings with excellent load capacity, high limiting speeds, and operating temperature range. The bearing provides an effective solution for handling high radial loads.
- Manufacturer: INA
- Type: Drawn Cup Needle Roller Bearing
- Model: BK-3026
- Under roller diameter (Fw): 30 mm
- Outer diameter (D): 37 mm
- Width, outer ring (C): 26 mm
- Minimum chamfer dimension (rmin): 0.8 mm
- Basic load ratings:
- Dynamic (C): 28,000 N
- Static (C0): 54,000 N
- Fatigue load limit (Pu): 7,600 N
- Limiting speed: 8,600 1/min
- Limiting speed for grease lubrication: 5,200 1/min
- Reference speed: 6,200 1/min
- Operating temperature: -30 / 140 °C
