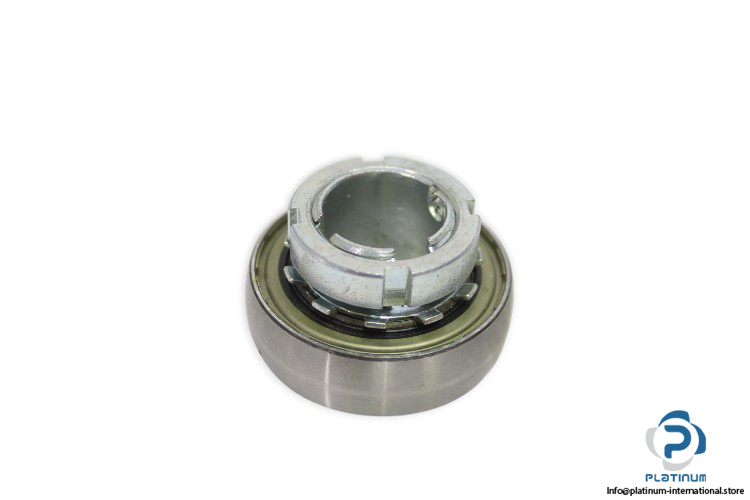

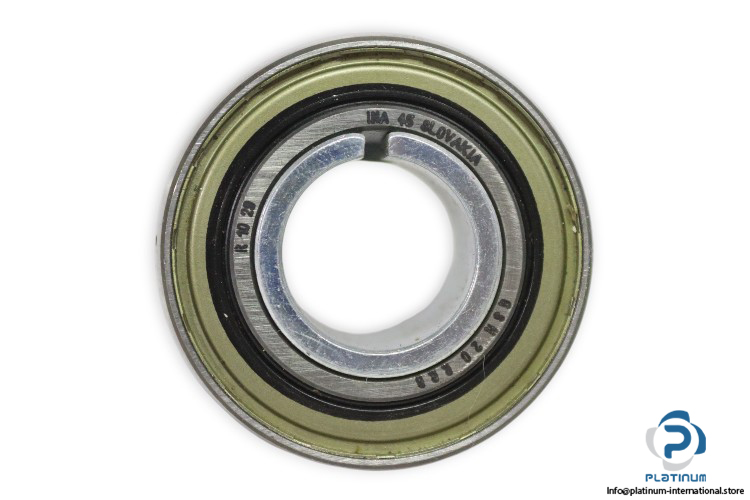

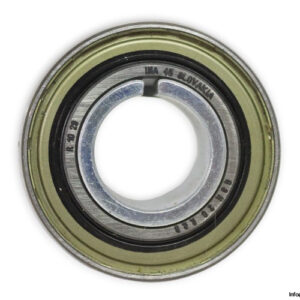

Schaeffler / INA GSH20-RRS Radial Insert Ball Bearing
The Schaeffler / INA GSH20-RRS is a high-quality radial insert ball bearing designed for reliable and efficient operation in demanding industrial environments. It features a lip seal on both sides (RRS) to protect against contaminants and ensure long service life under continuous operation.
Manufacturer: Schaeffler / INA
Type: Radial Insert Ball Bearing
Model: GSH20-RRS
Technical Information
- Bore Diameter (d): 20 mm
- Outer Diameter (D): 47 mm
- Width (B): 15 mm
- Locking Collar Total Width (B1): 28 mm
- Dynamic Load Rating (C): 12,700 N
- Static Load Rating (C0): 6,600 N
- Fatigue Load Rating: 365 N
- Sealing: RRS, Lip Seal on Both Sides
