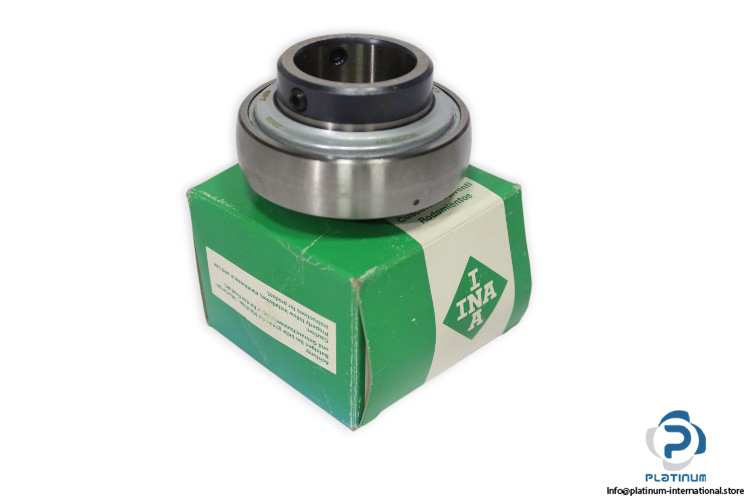

INA / Schaeffler GYE35KRRB Radial Insert Ball Bearing

The INA / Schaeffler GYE35KRRB is a high-quality radial insert ball bearing designed for use in demanding industrial applications. It offers reliable performance, excellent load capacity, and long service life. Equipped with lip seals on both sides (KRR sealing), this bearing provides effective protection against contamination and retains lubrication under heavy-duty conditions.

• Manufacturer: INA / Schaeffler
• Type: Radial Insert Ball Bearing
• Model: GYE35KRRB

Technical Information

• Bore Diameter (d): 35 mm
• Outside Diameter (D): 72 mm
• Width (B): 42.9 mm
• Width, Outer Ring (C): 19 mm
• Sealing Total Width (C2): 22.5 mm
• Distance Raceway (S): 17.5 mm
• Rib Diameter Inner Ring (d1): 46.8 mm
• Outside Diameter Seal (D1): 60.3 mm
• Distance to Lubrication Hole (Ca): 5.6 mm
• Width of Flats (W): 3 mm
• Fatigue Load Limit, Radial (Cur): 650 N
• Dynamic Load Rating (C): 25,500 N
• Static Load Rating (C0): 15,300 N
• Sealing: KRR, Lip seals on both sides
