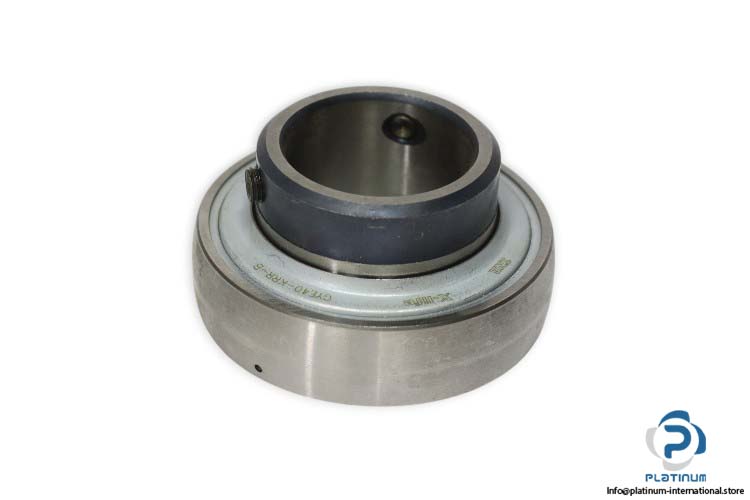

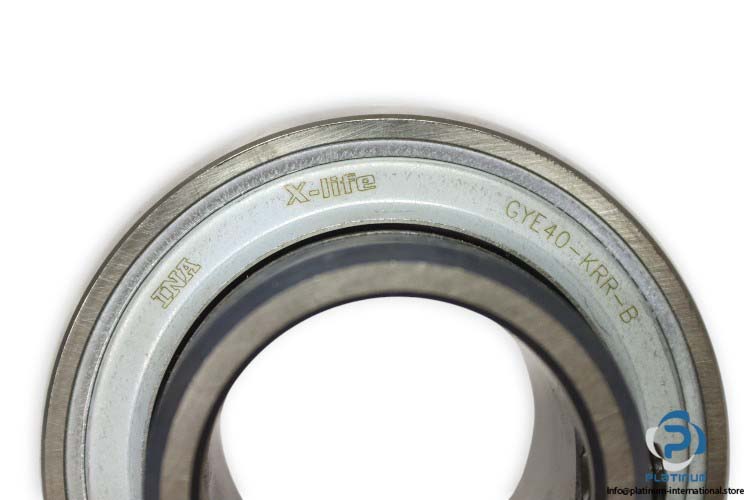

INA / Schaeffler GYE40KRRB Radial Insert Ball Bearing
The INA / Schaeffler GYE40KRRB is a precision radial insert ball bearing designed for high reliability and smooth rotational performance in demanding industrial environments.
Manufacturer: INA / Schaeffler
Type: Radial Insert Ball Bearing
Model: GYE40KRRB
Technical Information
- Bore Diameter (d): 40 mm
- Outer Diameter (D): 80 mm
- Width (B): 49.2 mm
- Width, Outer Ring (C): 21 mm
- Sealing Total Width (C2): 23.5 mm
- Distance Raceway (S): 19 mm
- Rib Diameter Inner Ring (d1): 52.3 mm
- Outside Diameter Seal (D1): 68.3 mm
- Distance to Lubrication Hole (Ca): 6.4 mm
- Distance Thread (A): 8 mm
- Basic Dynamic Load Rating (C): 32500 N
- Basic Static Load Rating (C0): 19800 N
- Fatigue Load Limit, Radial: 840 N
- Shape of Outer Surface: B
- Sealing: KRR, Lip Seals on Both Sides
