Manufacturer: INA
Type: Linear ball bearing and housing units

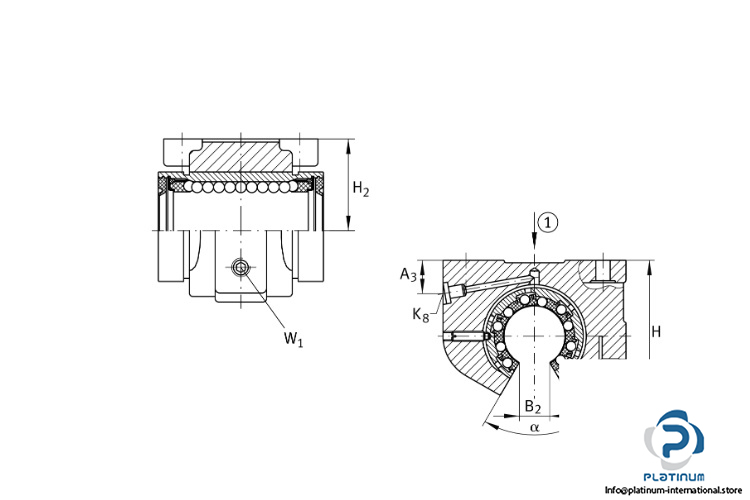

Model: KGBAO 40-PP-AS
Shaft diameter Fw: 40 mm
Housing width B: 108 mm
Housing Height H: 82.5 mm
Housing Length L: 80 mm
Base to Center Height L5: 56 mm
JB: 86 mm
Design type: Open Type
Rows of Balls: 5
Basic Load Ratings:
Dynamic C: 6100 N
Static C0: 4600 N
Angle α: 54 °
Sealing: PP, Lip Seal on Both Sides of Bearing
New
Manufacturer: INA
Shaft Guiding & Linear Ball BushingsINA KGBAO40-PP-AS LINEAR BEARING UNIT
In stock: 14 pcs
Good availability
Ready to ship from our warehouse.
| Weight | 1,1 kg |
|---|---|
| Condition | |
| Model | |
| Manufacturer | |
| Type of Product | |
| Shelf No. |
