Manufacturer: Schaeffler INA

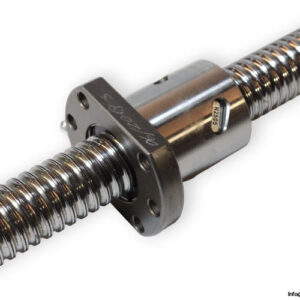

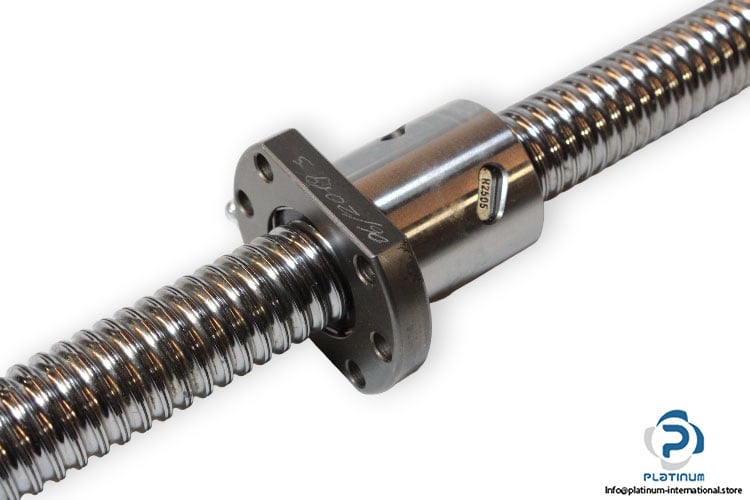

Type: Ball screw drive with flanged nut

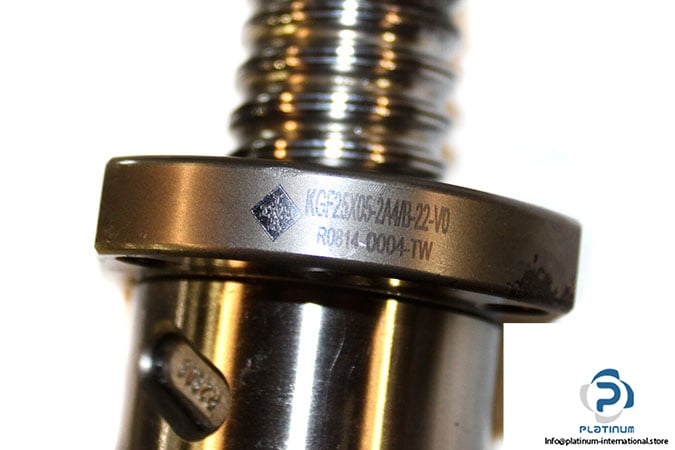

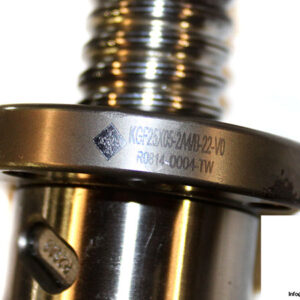

Model: KGF25X05-2A4/B-22-V0
Part no.: R2505

Size: 25 x 5 R
Screw shaft outer diameter d: 25 mm
Lead P: 5 mm
Direction of Lead: Right-Hand Thread
Dynamic Rating Load C_a: 14.3 kN
Static Rating Load C_oa: 34.91 kN

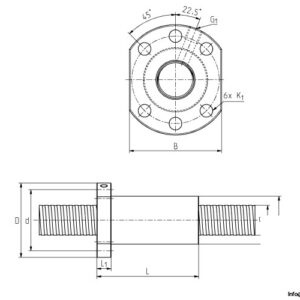

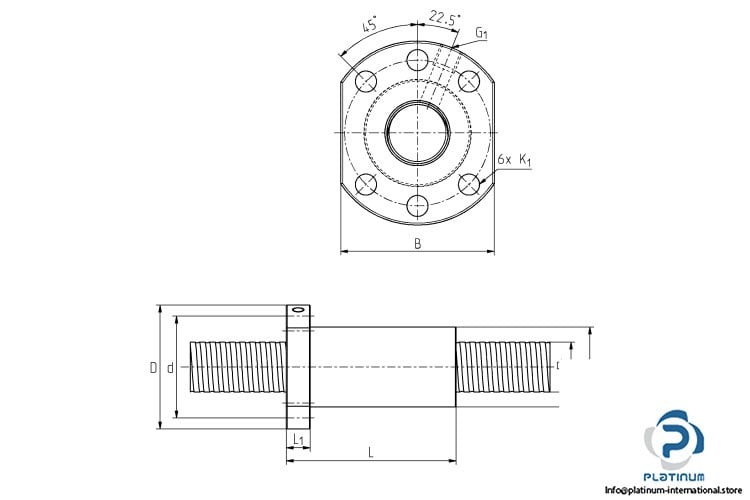

Dimensions:
Outer diameter d_W: 25 mm
Flange diameter D: 62 mm
Overall length L: 53 mm
Mounting dimensions:
B: 48 mm
D₁: 40 mm
L₁: 10 mm

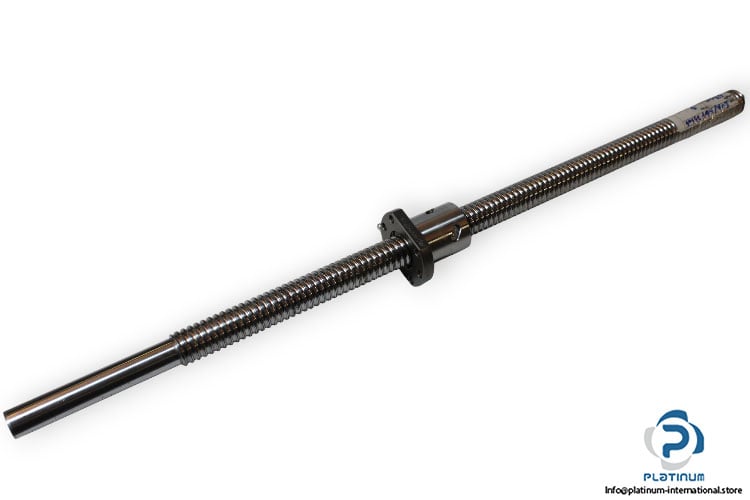

Available screw:
Total length: 685 mm
Path length: 565 mm
